Suspension Control Module

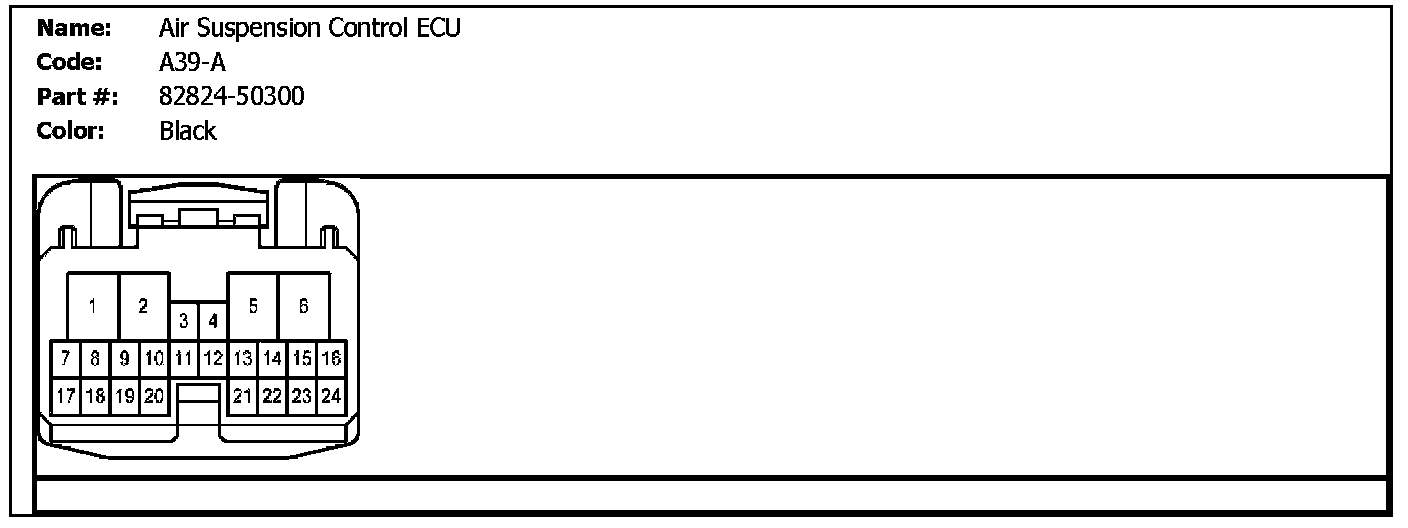

A39-A (Air Suspension Control ECU):

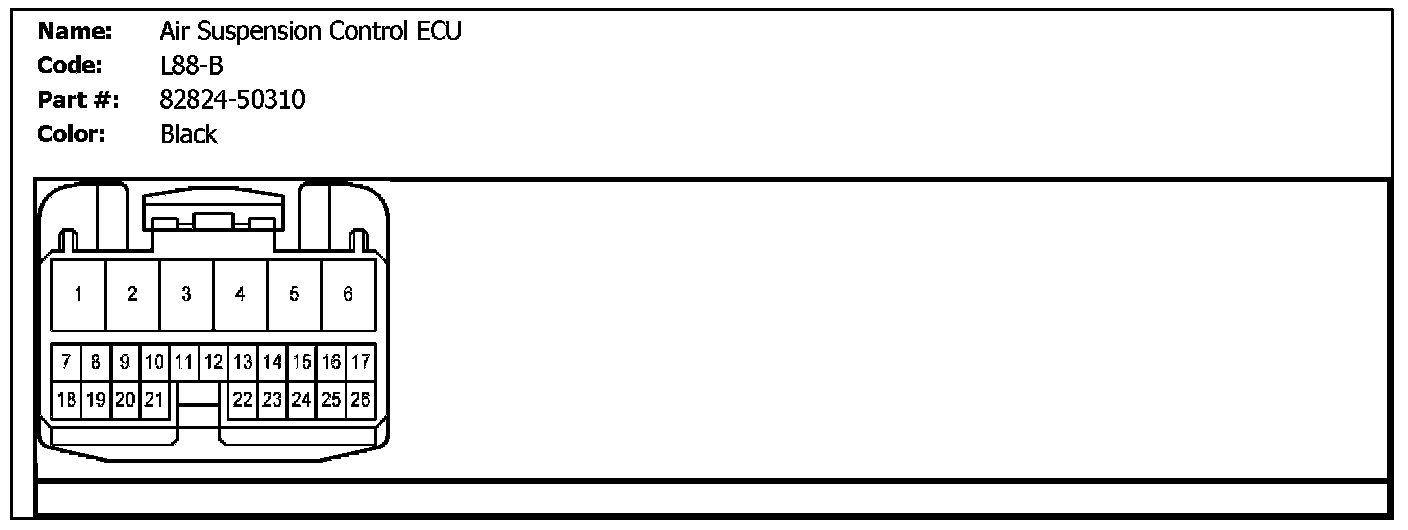

L88-B (Air Suspension Control ECU):

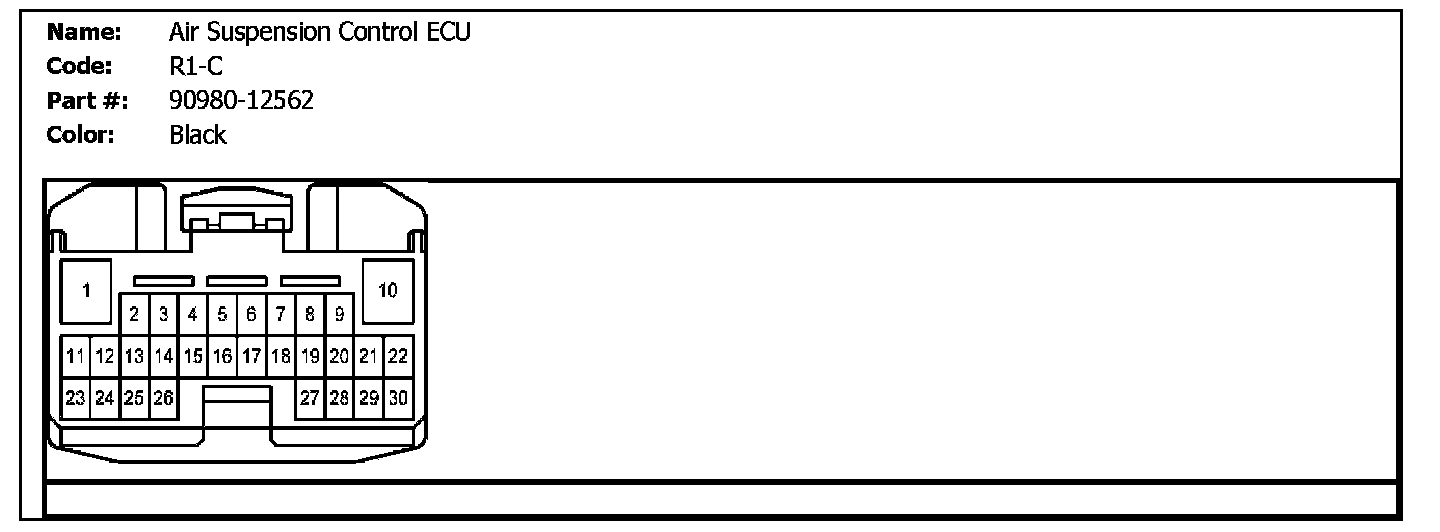

R1-C (Air Suspension Control ECU):
