Headlamp
>>
System Diagram
System Diagram
B1 (Headlight LH):
B11 (Headlight RH):
B12 (Headlight RH):

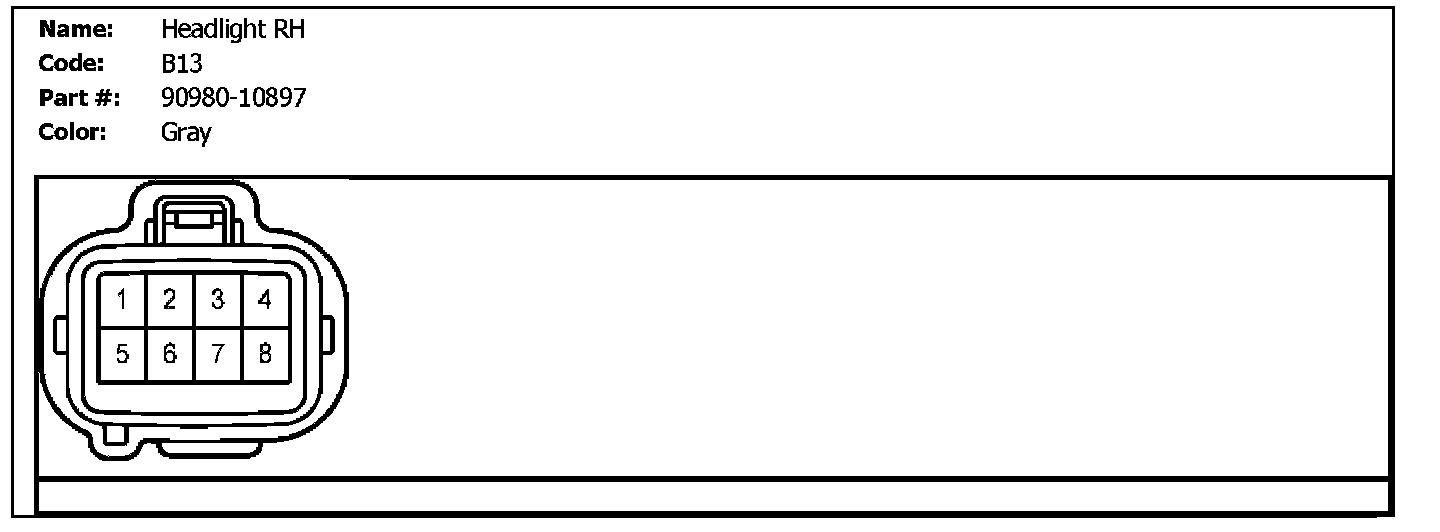

B13 (Headlight RH):

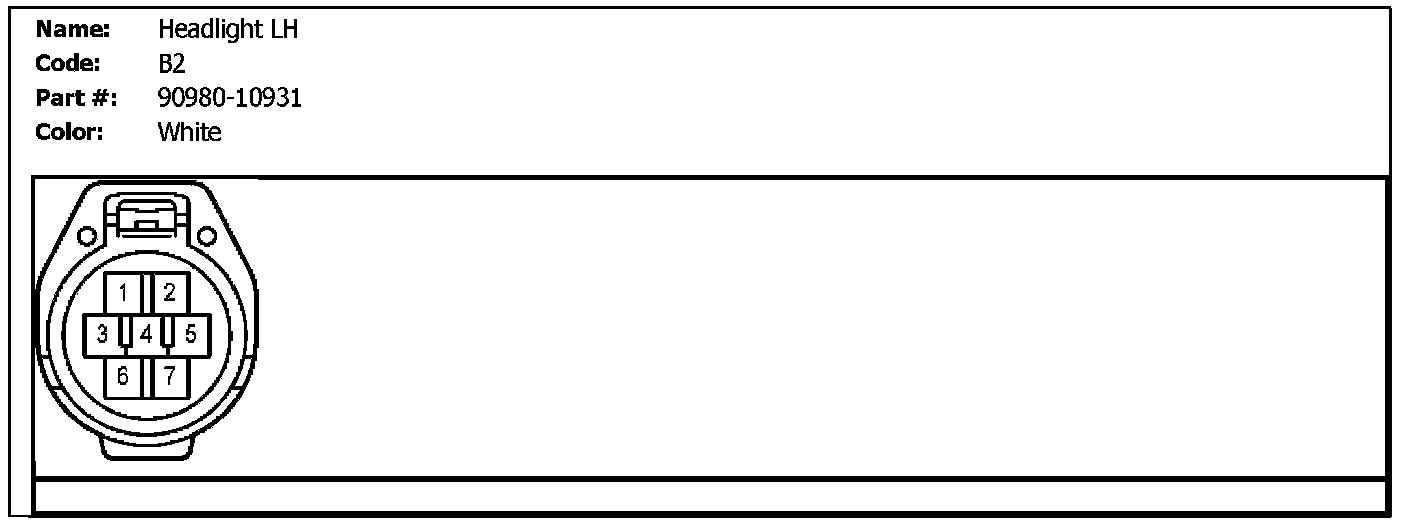

B2 (Headlight LH):

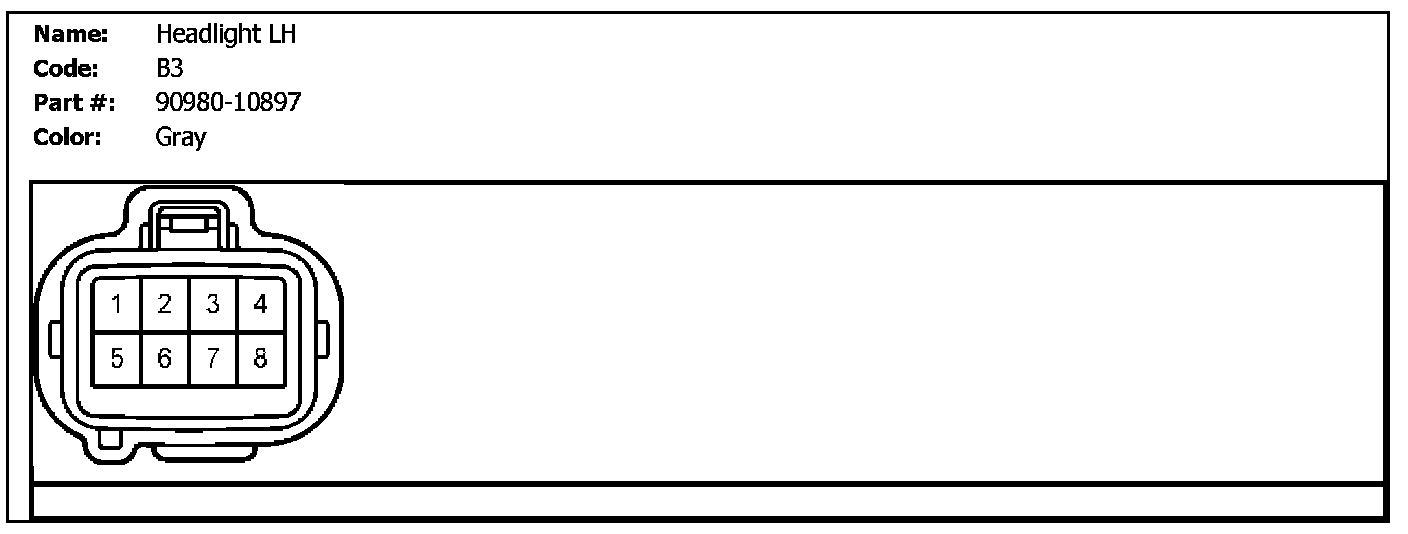

B3 (Headlight LH):
