Control Module HVAC
Control Module HVAC

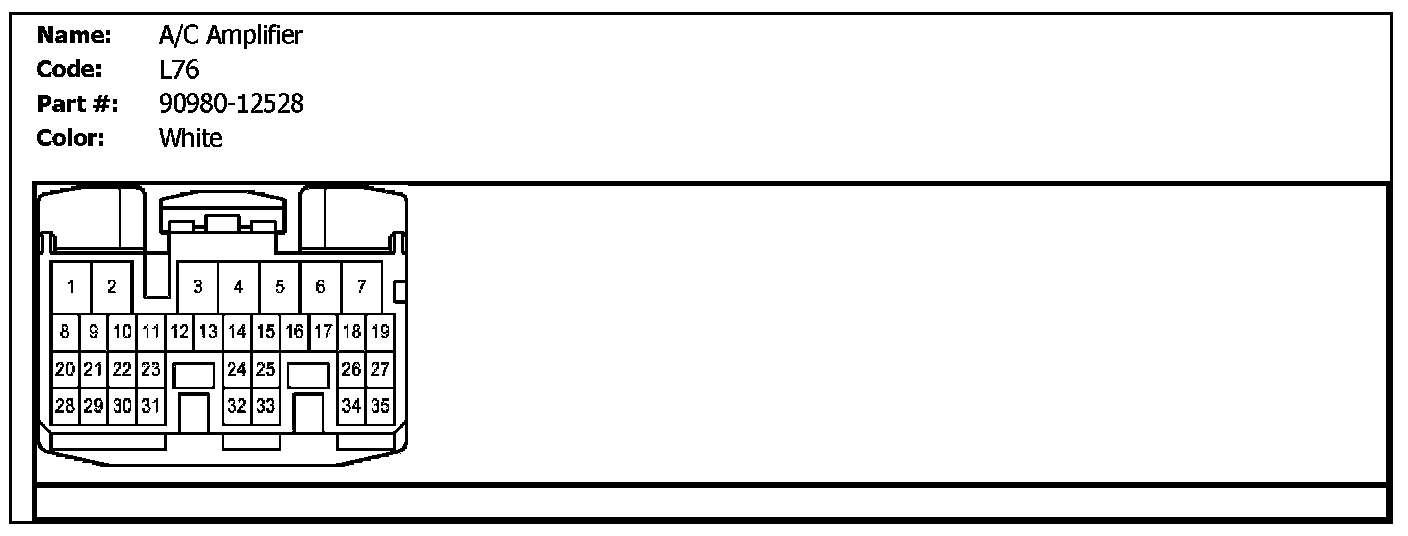

L76 (A/C Amplifier):

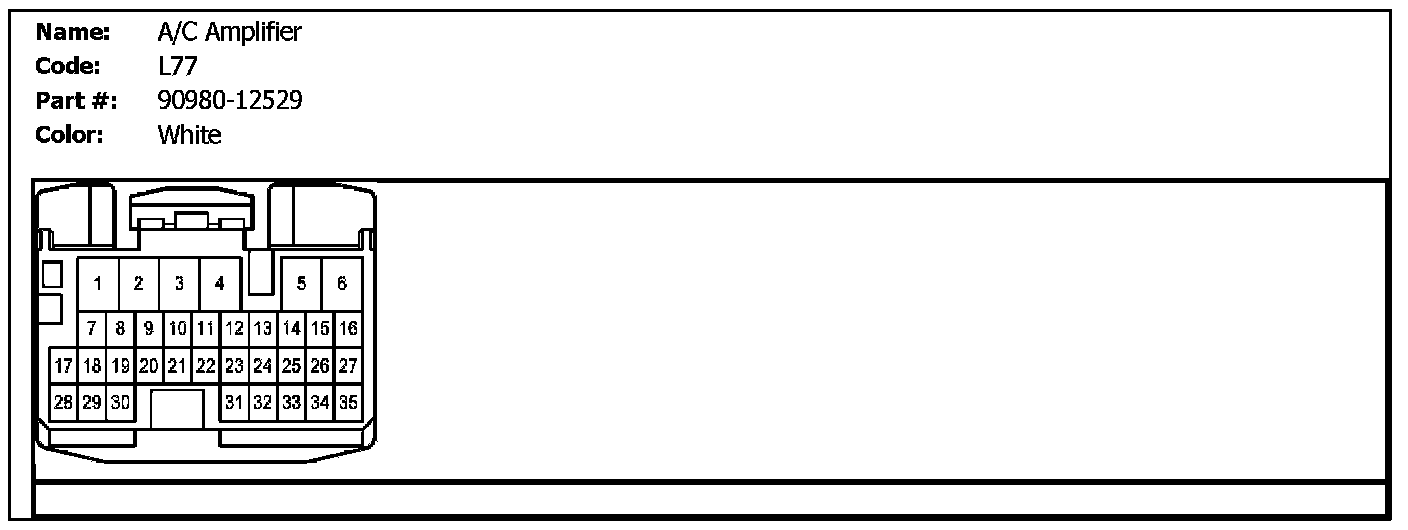

L77 (A/C Amplifier):

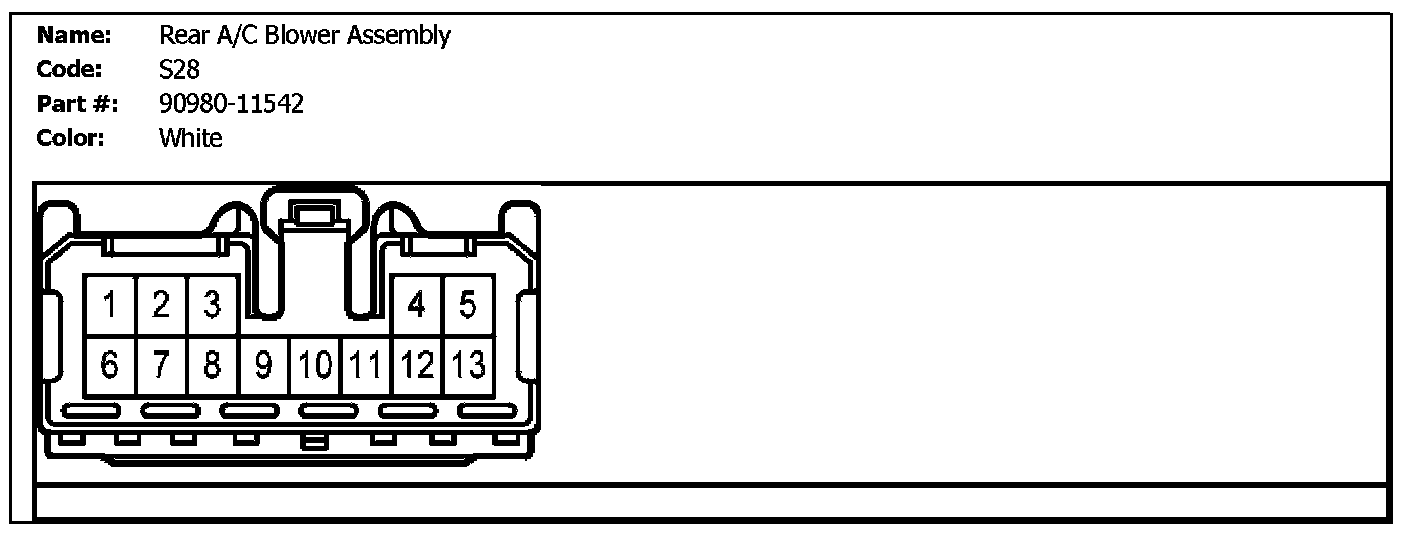

S28 (Rear A/C Blower Assembly):

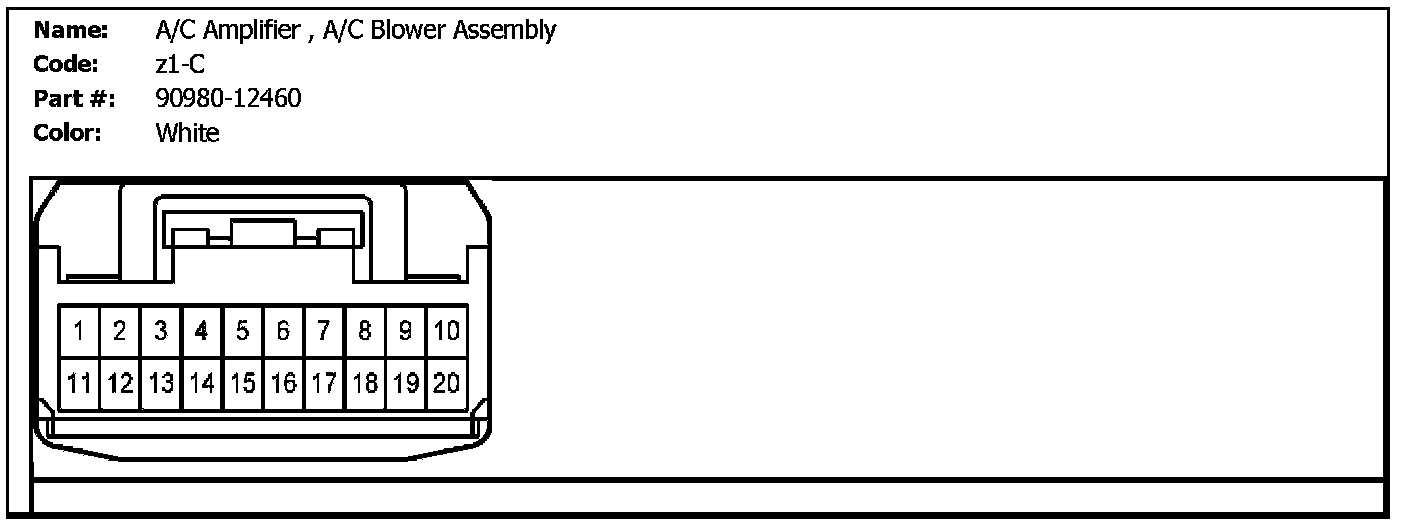

z1-C (A/C Amplifier, A/C Blower Assembly):
