Electrical Diagrams

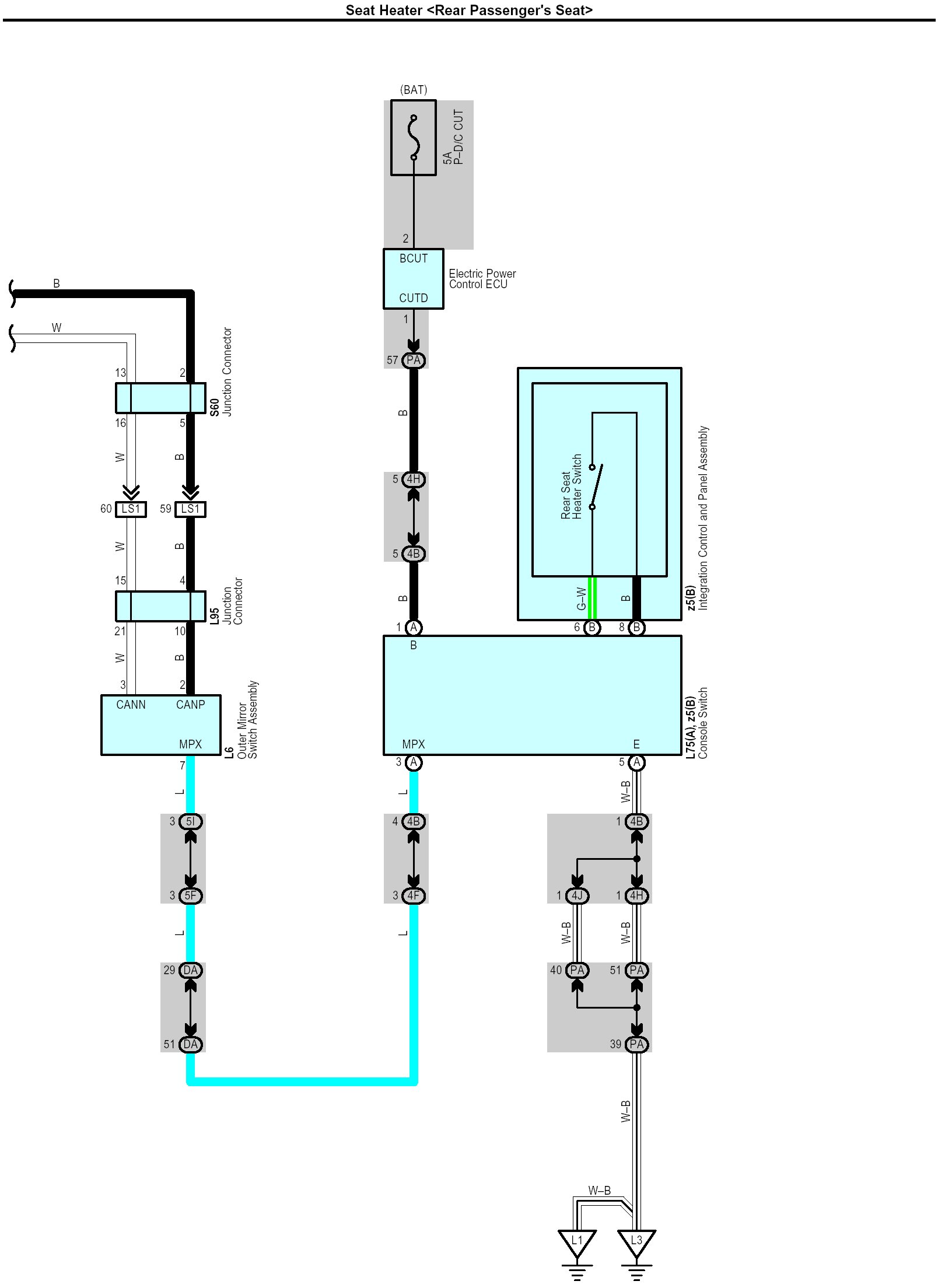

Seat Heater (Rear Passenger's Seat) Part 1:

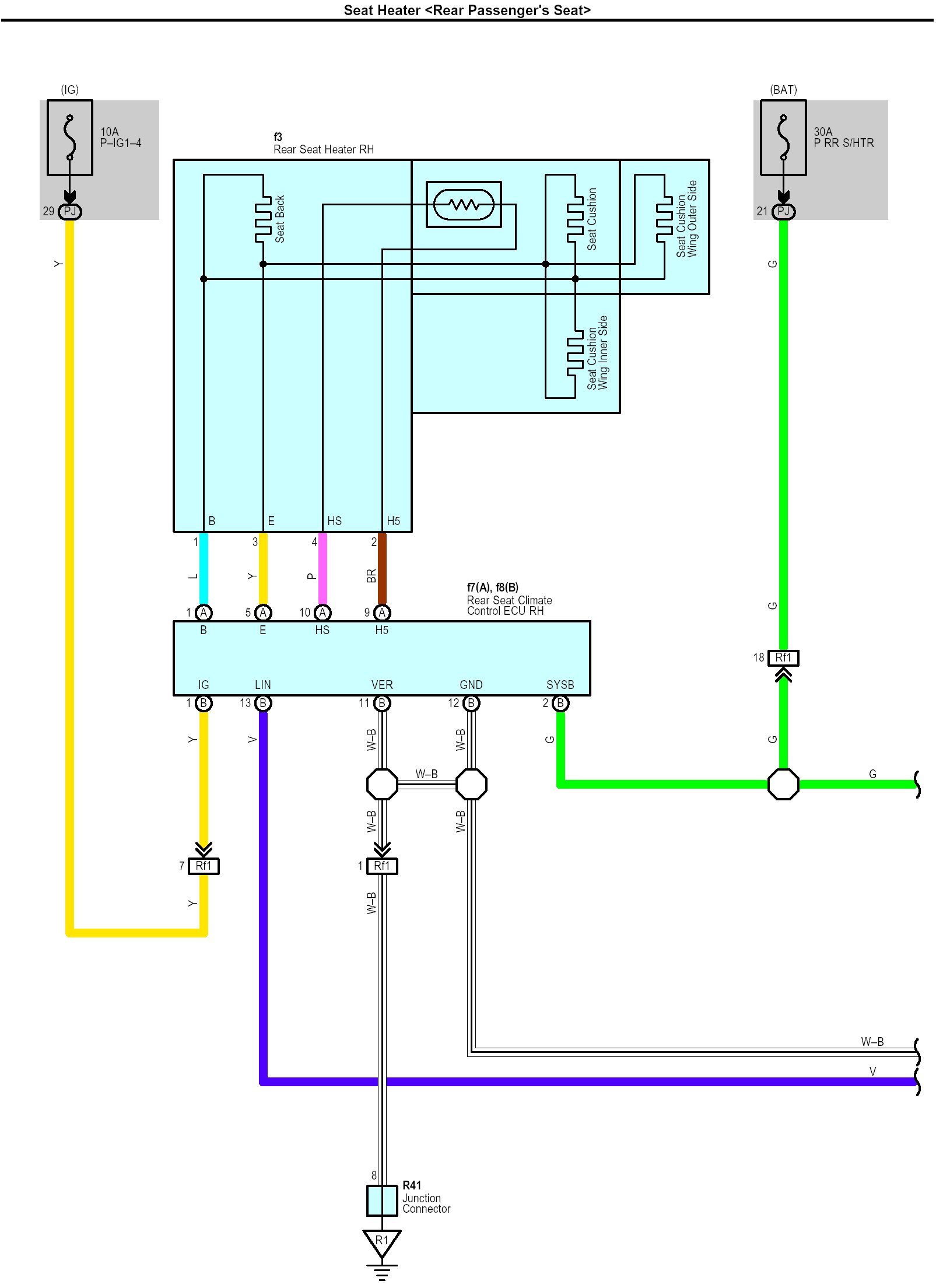

Seat Heater (Rear Passenger's Seat) Part 2:

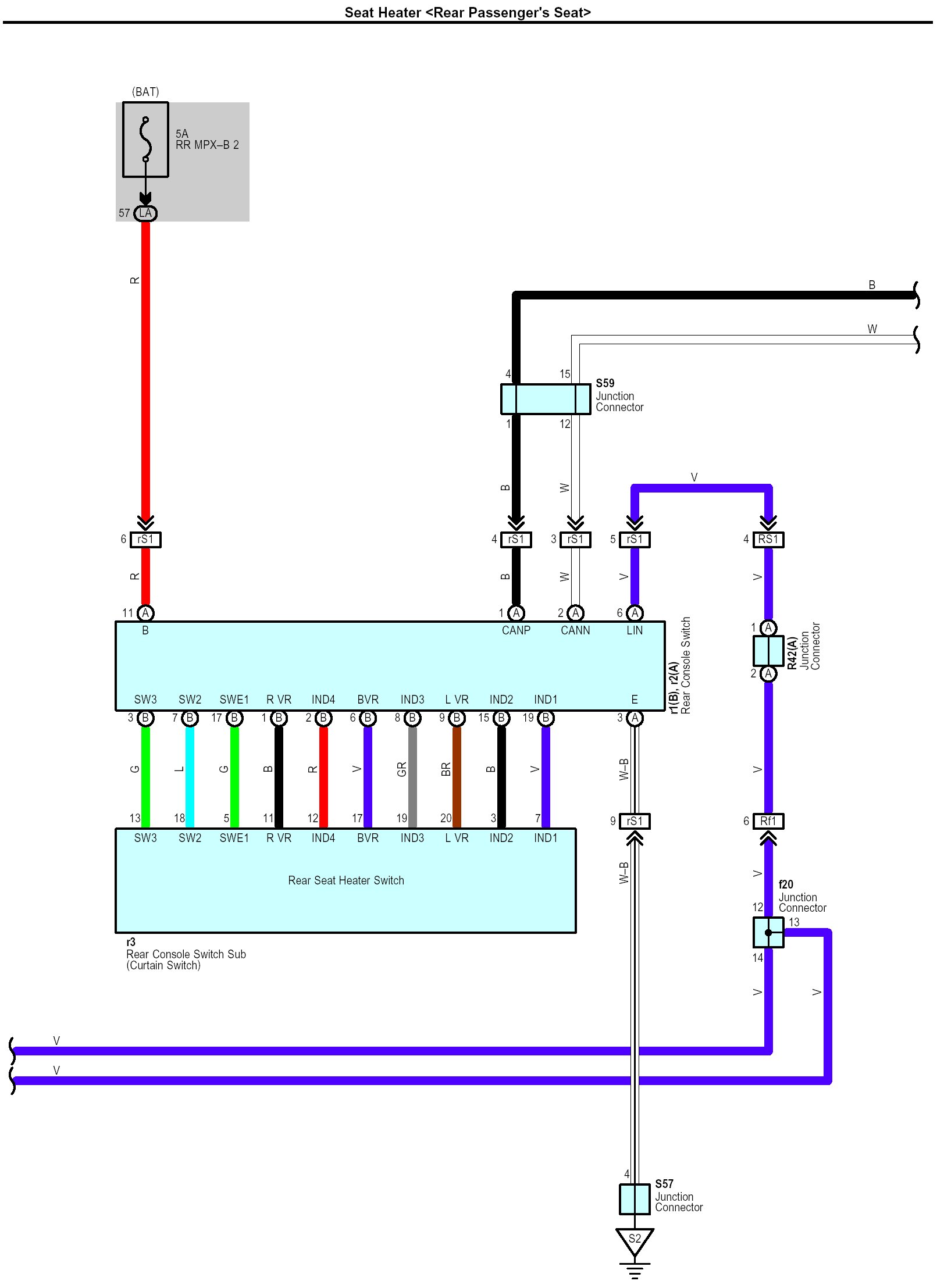

Seat Heater (Rear Passenger's Seat) Part 3:

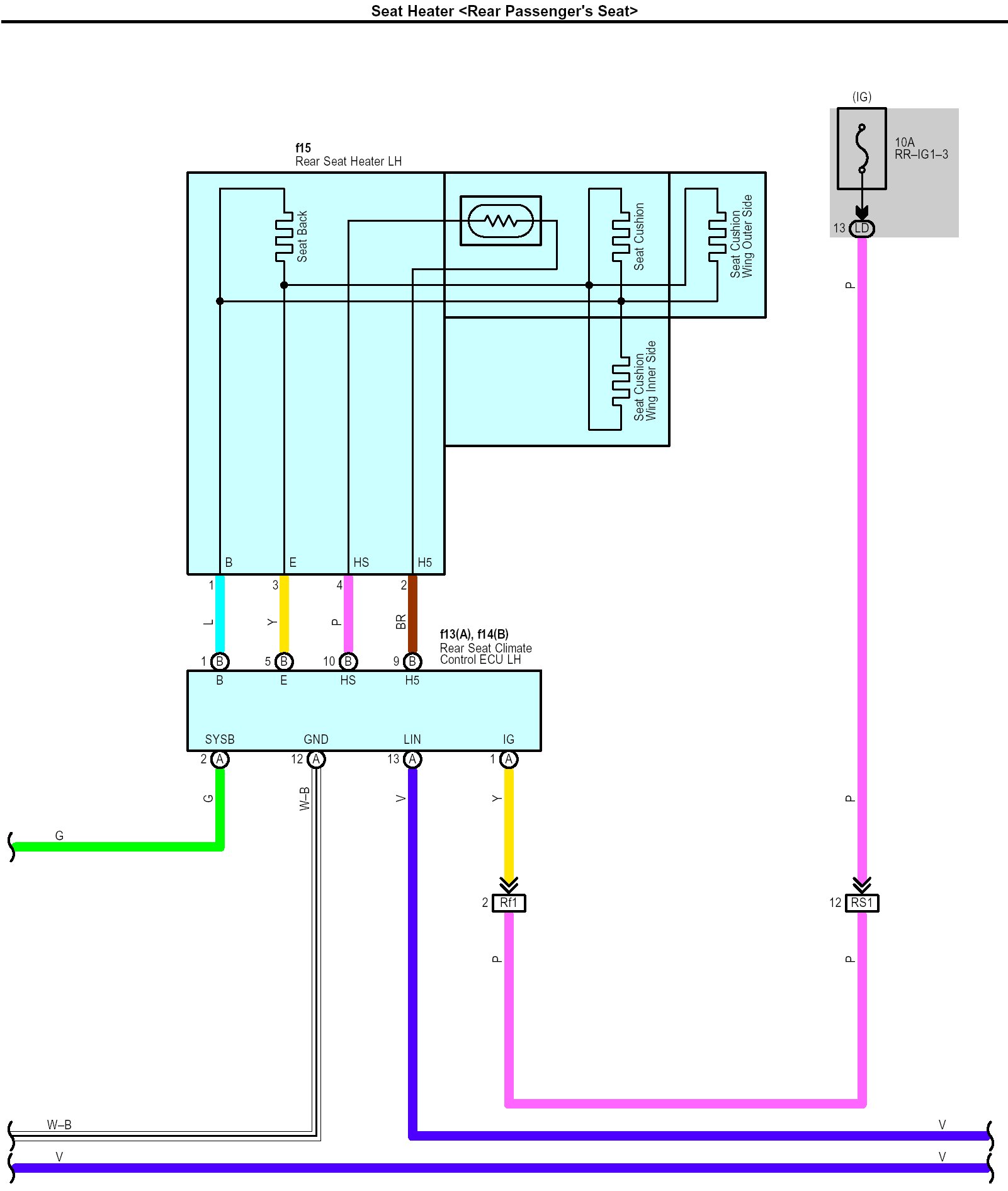

Seat Heater (Rear Passenger's Seat) Part 4:

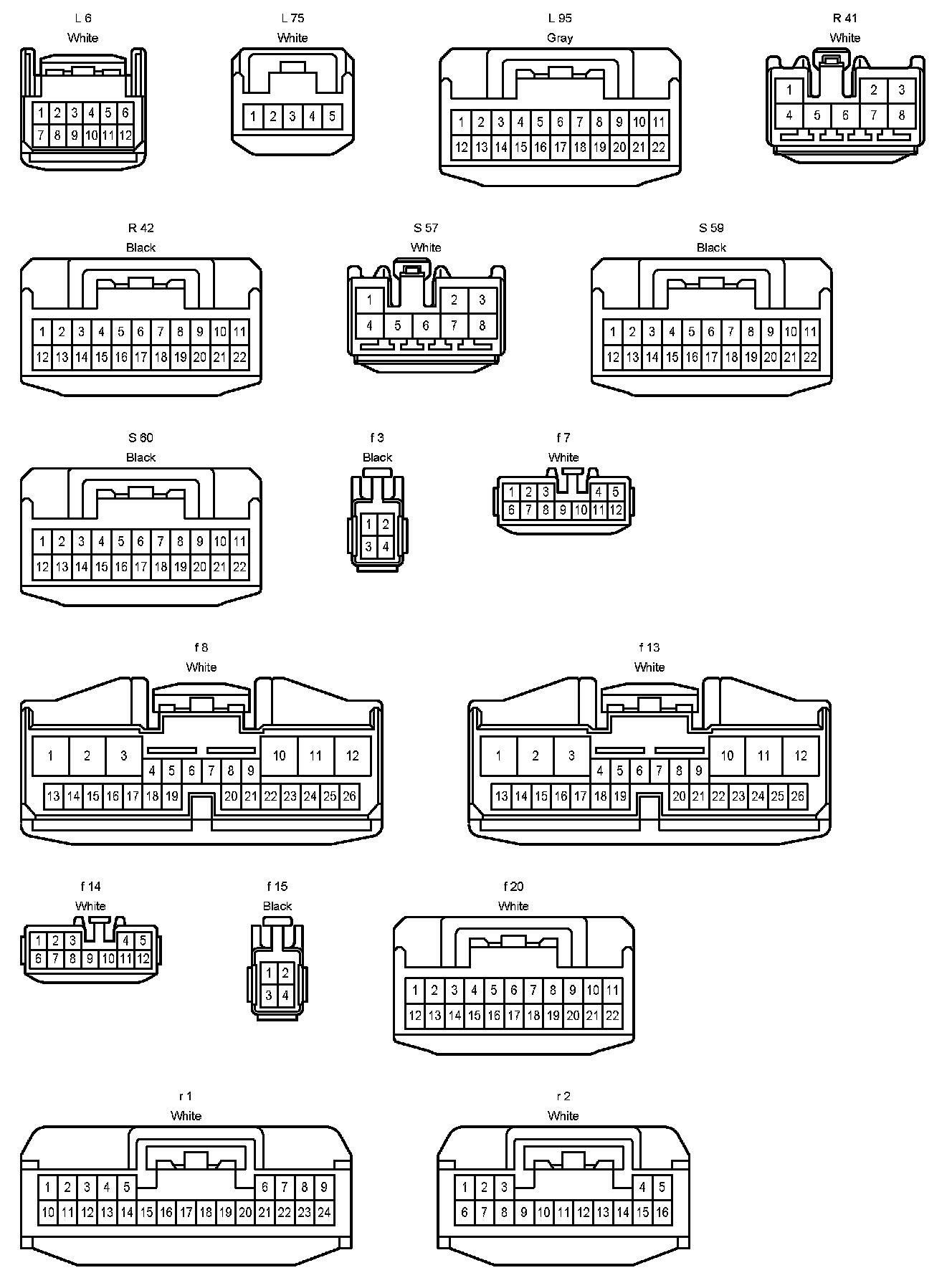

Connector Pin Outs Part 1:

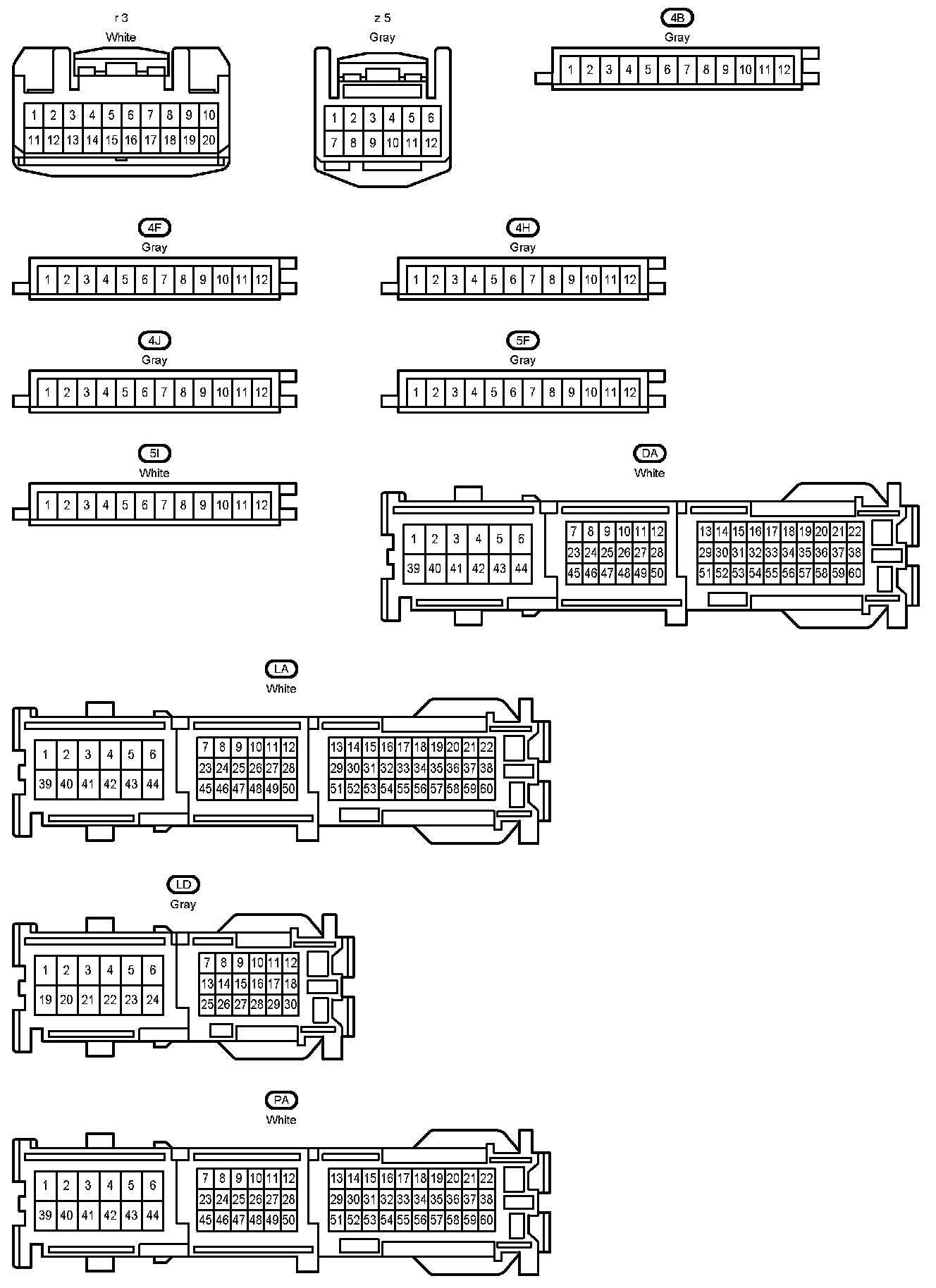

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
