Removal

SEAT: SEAT VIBRATOR MODULE ASSEMBLY (for Ottoman): REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT SUB-ASSEMBLY Removal

4. REMOVE ROPE HOOK Removal

5. REMOVE ROPE HOOK ASSEMBLY Removal

6. REMOVE DECK TRIM SIDE BOARD RH Removal

7. REMOVE DECK TRIM SIDE BOARD LH Removal

8. REMOVE LUGGAGE COMPARTMENT LIGHT ASSEMBLY Removal

9. REMOVE LUGGAGE COMPARTMENT NO. 2 TRIM HOOK (w/o Rear Cooler) Removal

10. REMOVE NO. 1 COOLER COVER (w/ Rear Cooler) Removal

11. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY FRONT Removal

12. REMOVE REAR FLOOR FINISH PLATE Removal

13. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Removal

14. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Removal

15. REMOVE SEAT VIBRATOR MODULE ASSEMBLY

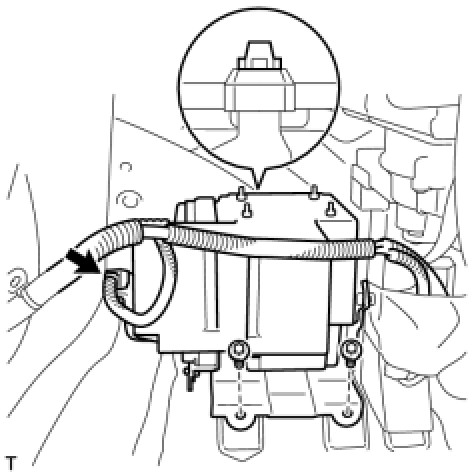

(a) Disconnect the air hose connector.

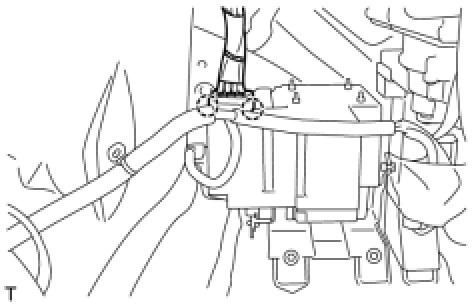

(b) Disconnect the connector.
(c) Remove the 2 bolts and detach the claw and remove the module.
