Installation

SEAT: FRONT POWER SEAT MOTOR ASSEMBLY: INSTALLATION

INSTALLATION
CAUTION: Wear protective gloves. Sharp areas on the seat adjuster and seat cushion frame may injure your hands.
HINT:
- Use the same procedures for the LH side and RH side.
- The procedure listed below are for the LH side.

1. INSTALL FRONT SEAT WIRE LH
2. INSTALL SEAT POSITION AIR BAG SENSOR Installation

3. INSTALL OCCUPANT CLASSIFICATION ECU (for Front Passenger Side) Reassembly

4. INSTALL SEAT CLIMATE CONTROL BLOWER LH (w/ Climate Control Seat System) Reassembly

5. INSTALL SEAT CLIMATE CONTROL ECU (w/ Climate Control Seat System) Reassembly

6. INSTALL FRONT NO. 1 SEAT TRAVEL LINK Reassembly

7. INSTALL FRONT NO. 2 SEAT TRAVEL LINK Reassembly

8. INSTALL NO. 1 SEAT CUSHION PLATE Reassembly

9. INSTALL FRONT SEAT CUSHION SPRING Reassembly

10. INSTALL FRONT SEAT CUSHION SHIELD LOWER Reassembly

11. INSTALL RECLINING ADJUSTER INSIDE COVER RH Reassembly

12. INSTALL RECLINING ADJUSTER INSIDE COVER LH Reassembly

13. INSTALL FRONT SEATBACK FRAME ASSEMBLY LH Reassembly

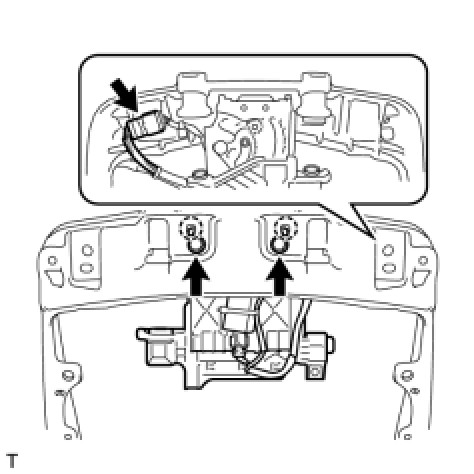

14. INSTALL FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
(a) Attach the 2 claws and install the headrest adjuster.
(b) Install the 2 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(c) Connect the connector.
15. INSTALL FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY (w/ Retractable Headrest)

(a) Attach the 2 claws and install the motor.

(b) Attach the 2 claws and install the headrest adjuster.
(c) Install the 4 bolts and 2 screws.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)for bolt
(d) Connect the connector.
16. INSTALL SEATBACK COVER WITH PAD Reassembly

17. INSTALL FRONT SEAT HEADREST SUPPORT LH Reassembly

18. INSTALL FRONT SEAT HEADREST ASSEMBLY LH Reassembly

19. INSTALL FRONT SEAT CUSHION ASSEMBLY LH Reassembly

20. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH Reassembly

21. INSTALL FRONT SEAT CUSHION SHIELD INNER LH Reassembly

22. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH Installation

23. INSTALL FRONT SEAT CUSHION SHIELD FRONT LH Reassembly

24. INSTALL FRONT SEAT CUSHION SHIELD LH Reassembly

25. INSTALL FRONT SEAT ASSEMBLY LH
(a) Install the front seat assembly Installation.
