Rear Power Seat Control System

SEAT: REAR POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM

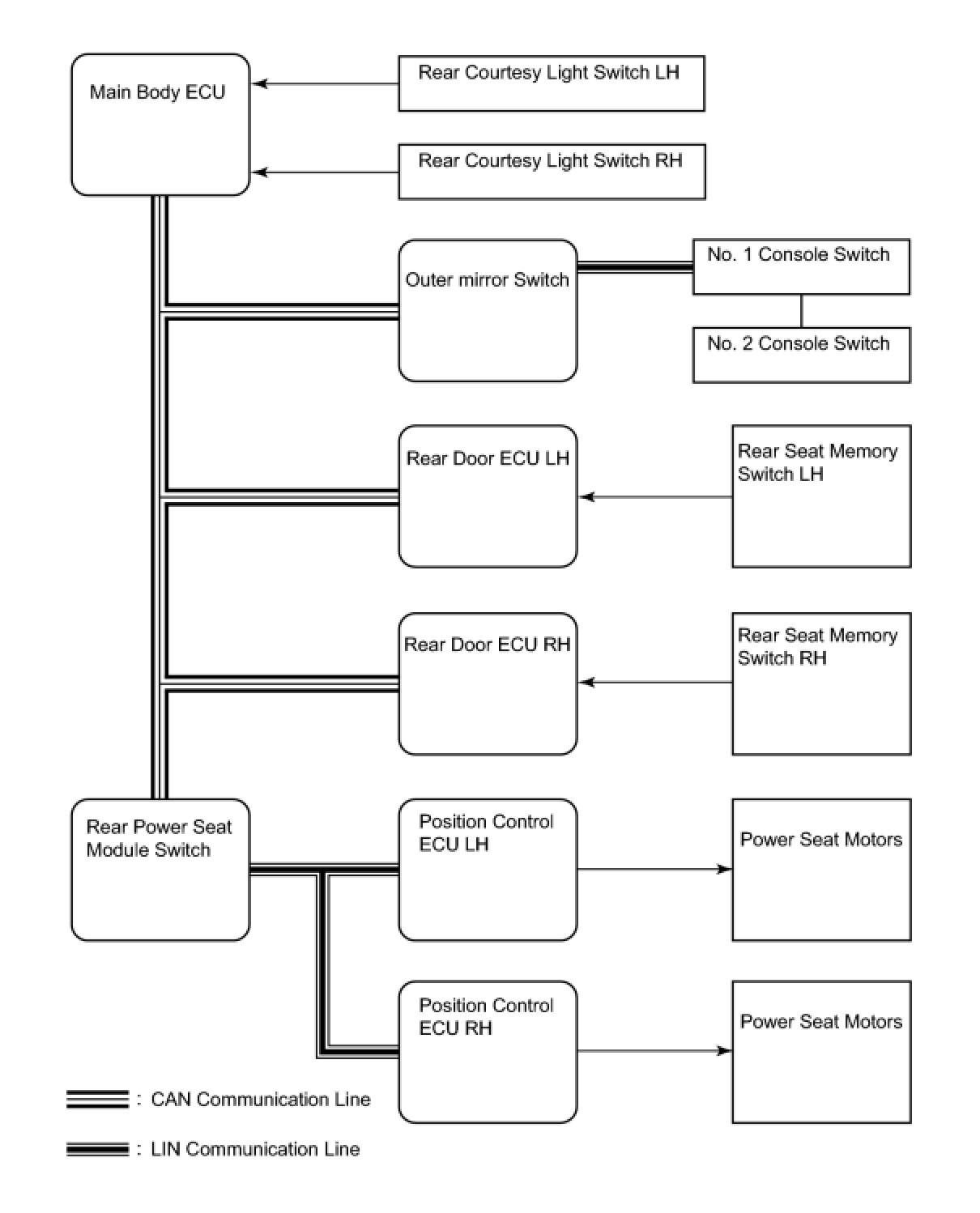

SYSTEM DIAGRAM

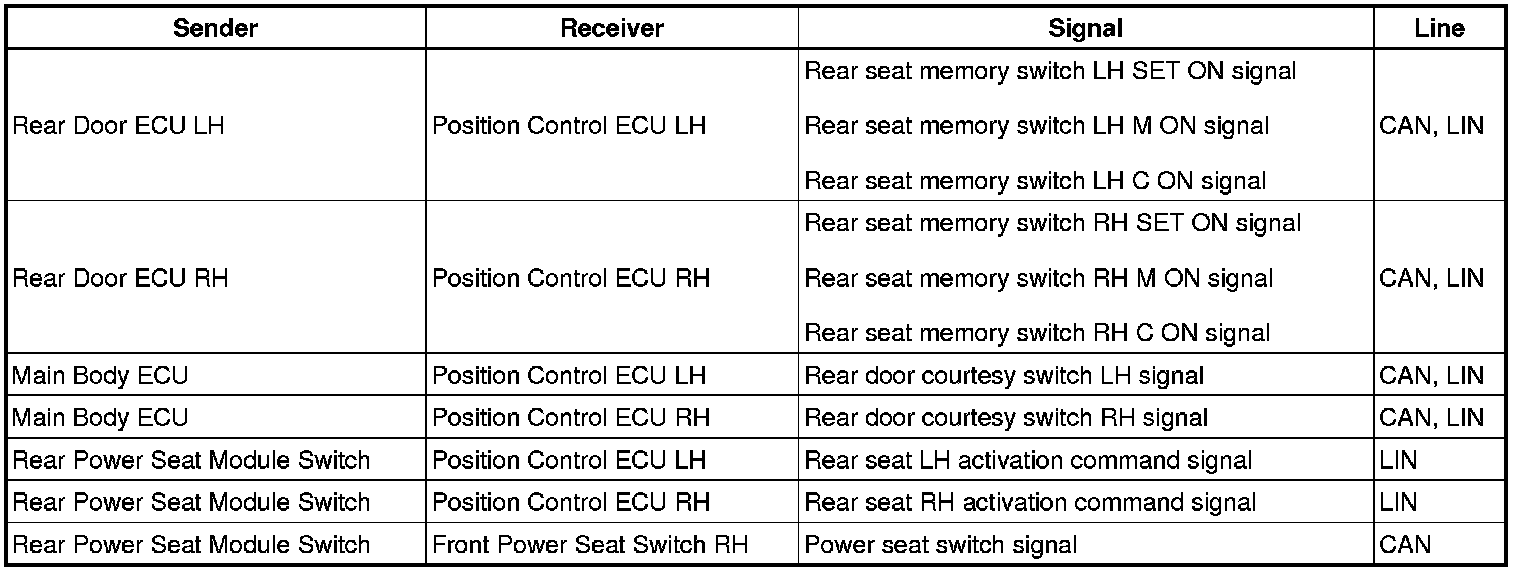

Communication table





SEAT: REAR POWER SEAT CONTROL SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. REAR POWER SEAT CONTROL SYSTEM DESCRIPTION

- Power seats are standard equipment for the front seats and optional for the rear seats.
- For rear power seats, the position of the right and left seats can be adjusted independently.
- A memory system for the rear seats is optional.

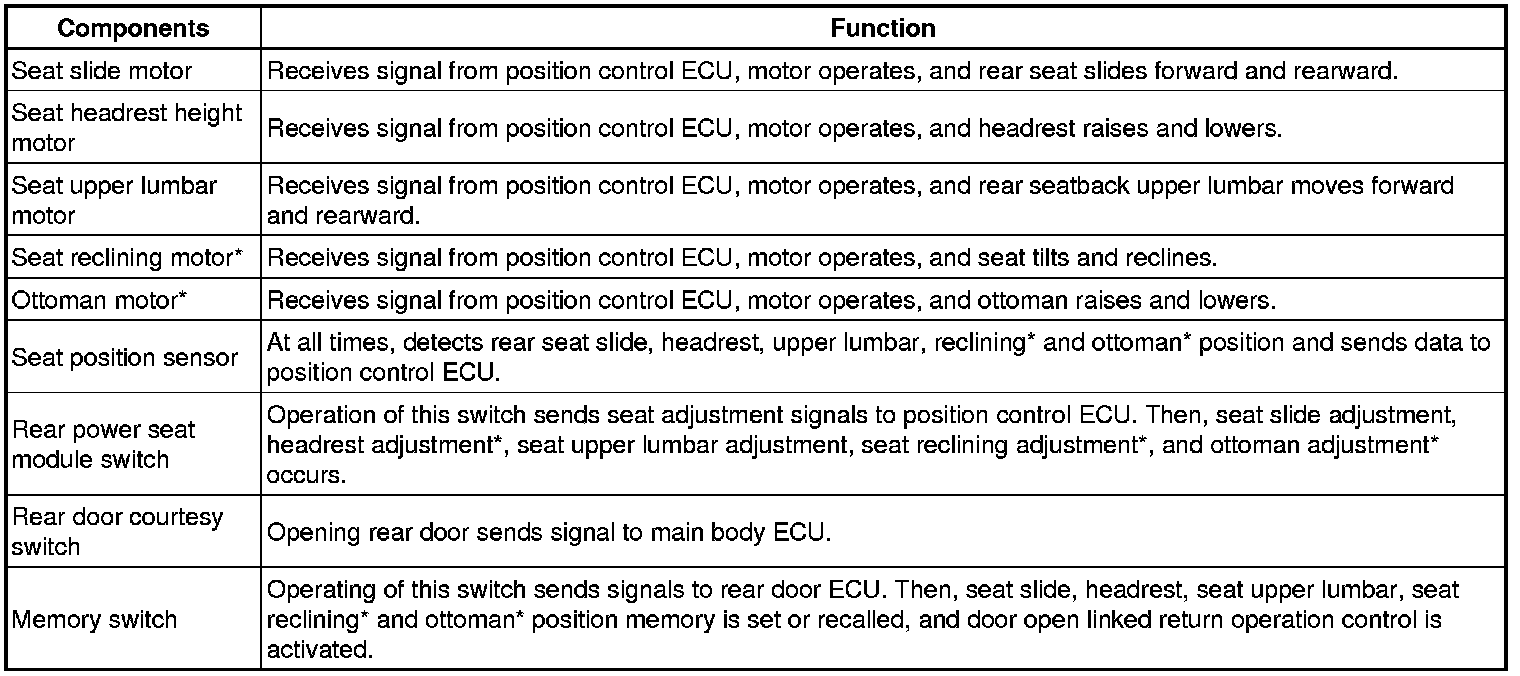

2. FUNCTION OF MAIN COMPONENT





HINT: *: w/ Ottoman

3. SYSTEM OPERATION

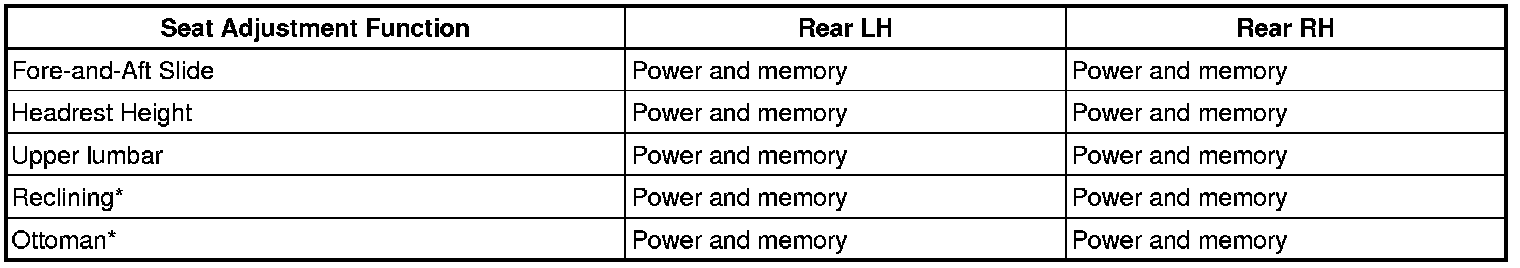

Each of rear power seat's memory adjustment and positions are shown in the chart below.





HINT: *: w/ Ottoman

- By operating the rear power seat reset switch, the position of the rear seat that has been adjusted can be returned to the factory setting.
- To improve the ease of entry/exit into the vehicle, the door open linked return operation is available. For this operation, when a rear door is opened, the rear seat adjacent to the opened door is moved to the rear-most position.
At this time, the position control ECU checks the shift lever position, brake operation, engine switch position and vehicle speed. It then makes a judgment of the vehicle's status before activating motors to move the rear seat to rear-most position.
- The door open linked return operation can be enabled or disabled by operating the C switch in the rear seat memory switch.
- The right and left position control ECUs memorize seat positions for their own respective rear seat sides.
