Disassembly

INTERIOR: ROOF HEADLINING (for Long Body): DISASSEMBLY

DISASSEMBLY

1. REMOVE ROOF SILENCER PAD

(a) for Standard Type:
Remove the 5 roof silencer pads.

(b) for Standard Type, w/ Rear Cooler:
Remove the 5 roof silencer pads.

(d) w/ Sliding Roof, w/ Rear Cooler:
Remove the 5 roof silencer pads.

(e) w/ Rear Seat Entertainment System:
Remove the 6 roof silencer pads.

2. REMOVE ROOF NO. 1 WIRE

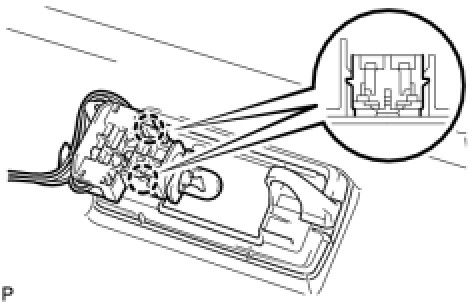

(a) Detach the 2 claws and separate the bulb holder from the vanity light.
HINT: Use the same procedures to remove the light on the other side.

(b) Remove the double-sided tape and roof wire.
