Power Trunk Lid System

ENGINE HOOD / DOOR: POWER TRUNK LID SYSTEM: SYSTEM DIAGRAM

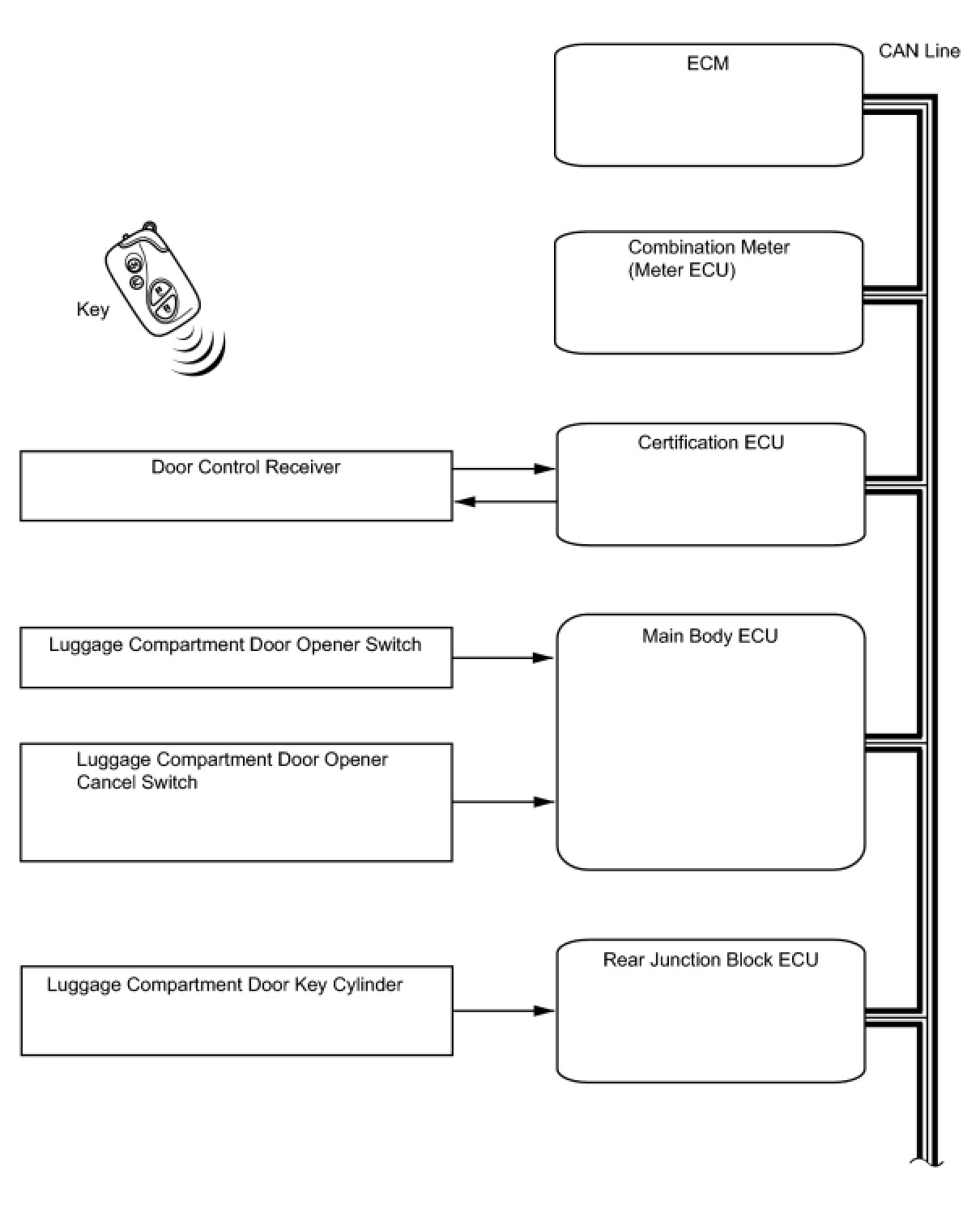

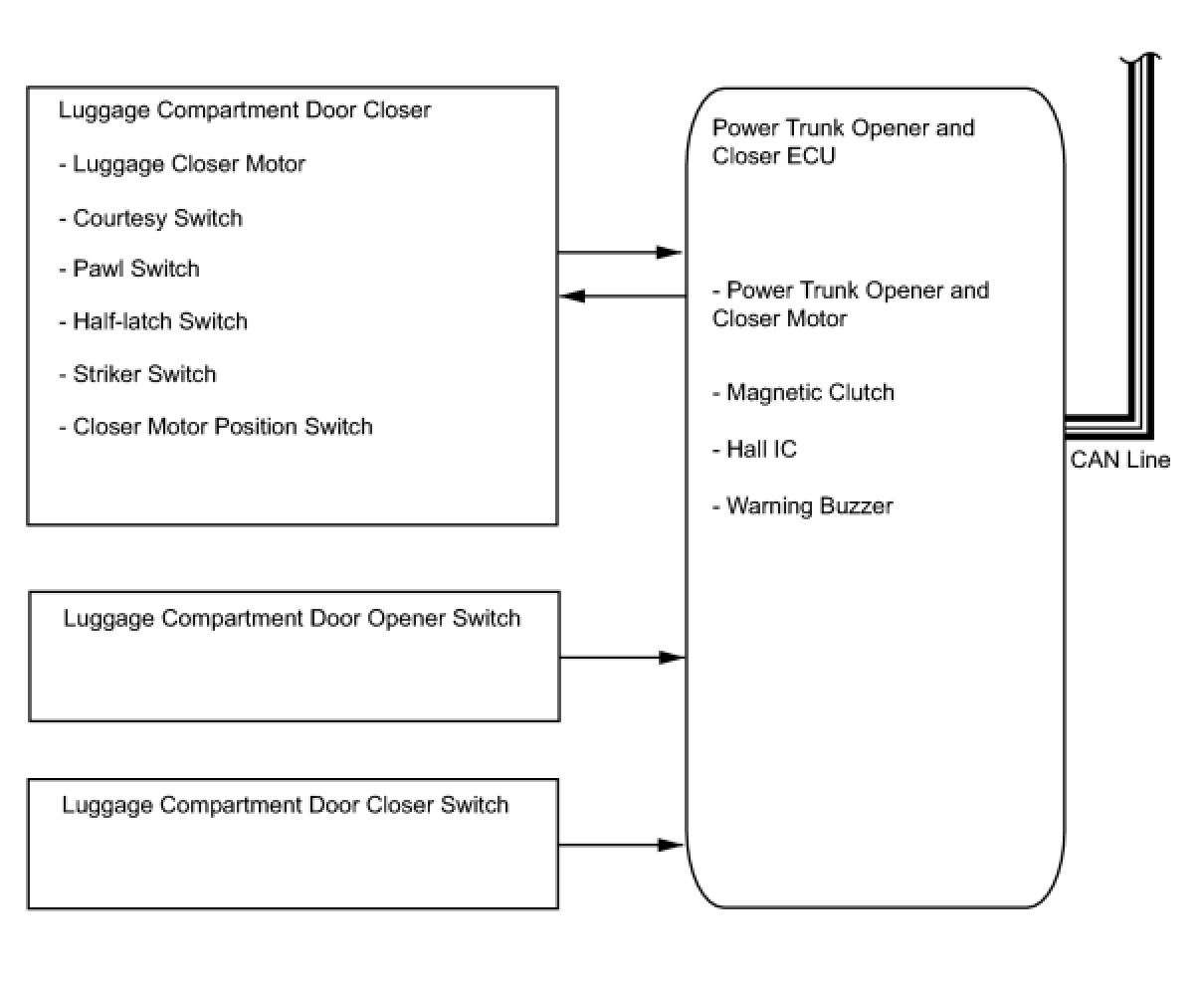

SYSTEM DIAGRAM

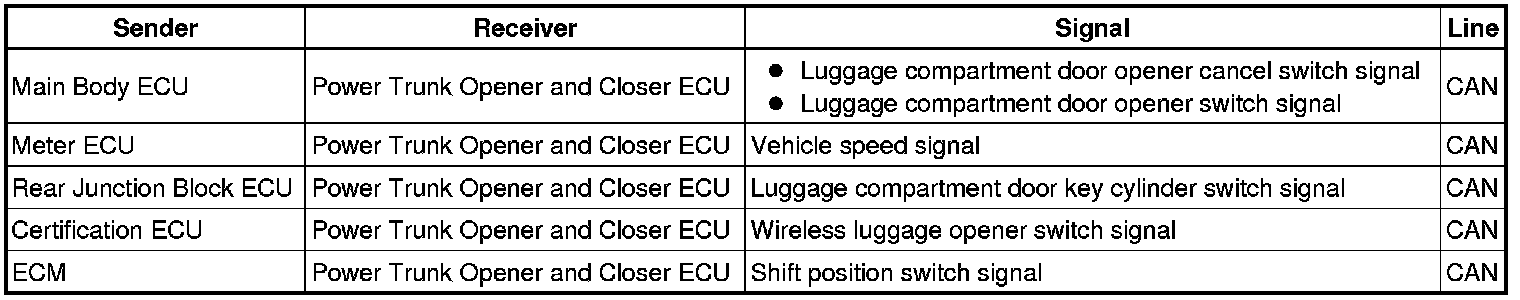

Communication table





ENGINE HOOD / DOOR: POWER TRUNK LID SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL

- The luggage compartment door can be opened by pressing a power trunk opener switch of the instrument panel or the rear license garnish, or the luggage switch of the key.
- In addition, a power trunk closer switch has been provided on the inner side of the luggage compartment door. By using this switch, the luggage compartment door can be closed automatically.
- The luggage closer motor with a power trunk opener and closer ECU has been installed near a luggage compartment door hinge LH. The luggage closer motor opens and closes the luggage compartment door.
- This system is controlled by the power trunk opener and closer ECU.

2. FUNCTION OF MAIN COMPONENTS






3. OPERATION
(a) Open function

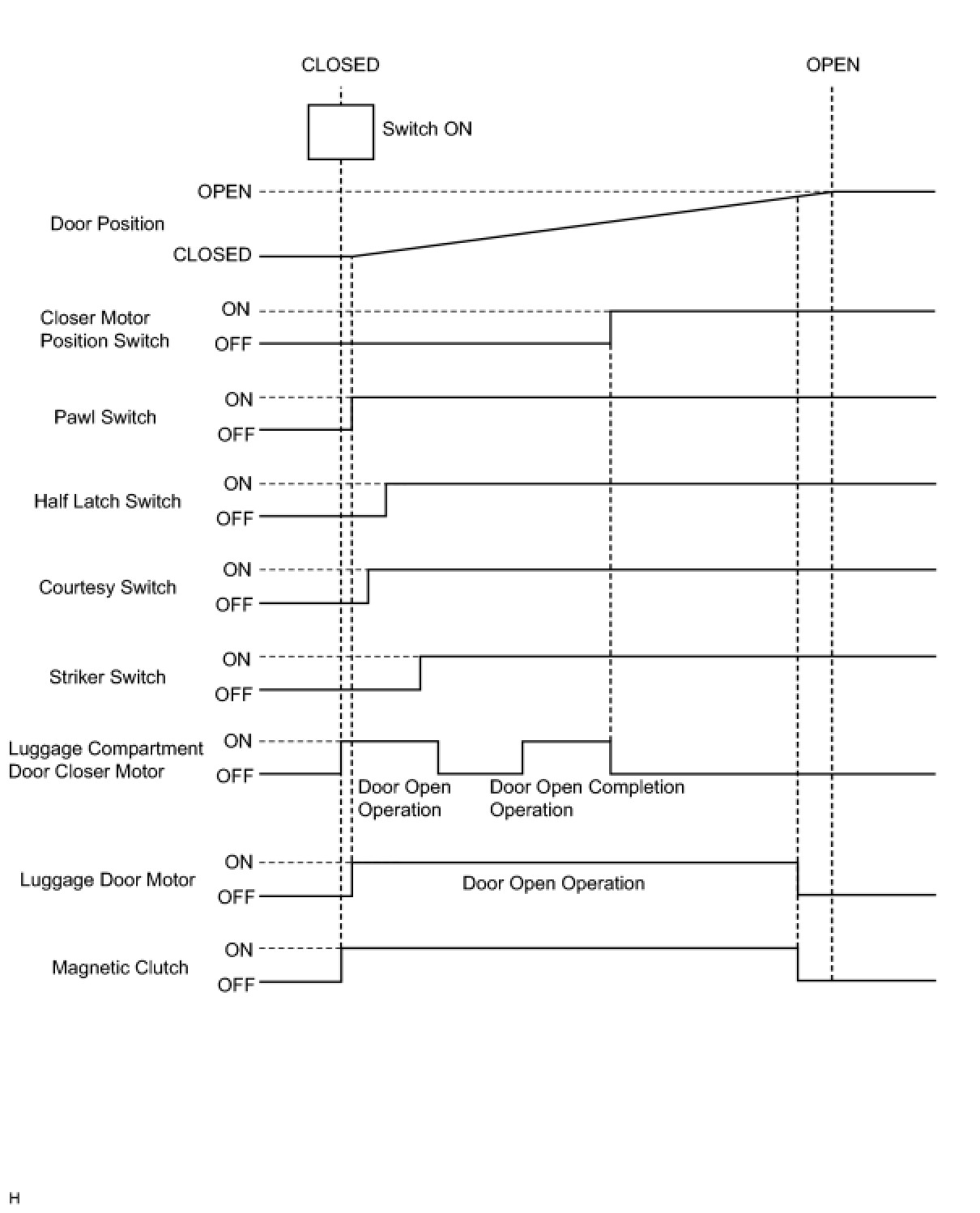

(1) The timing chart below shows the open operation of the power trunk opener and closer system.





(b) Close function

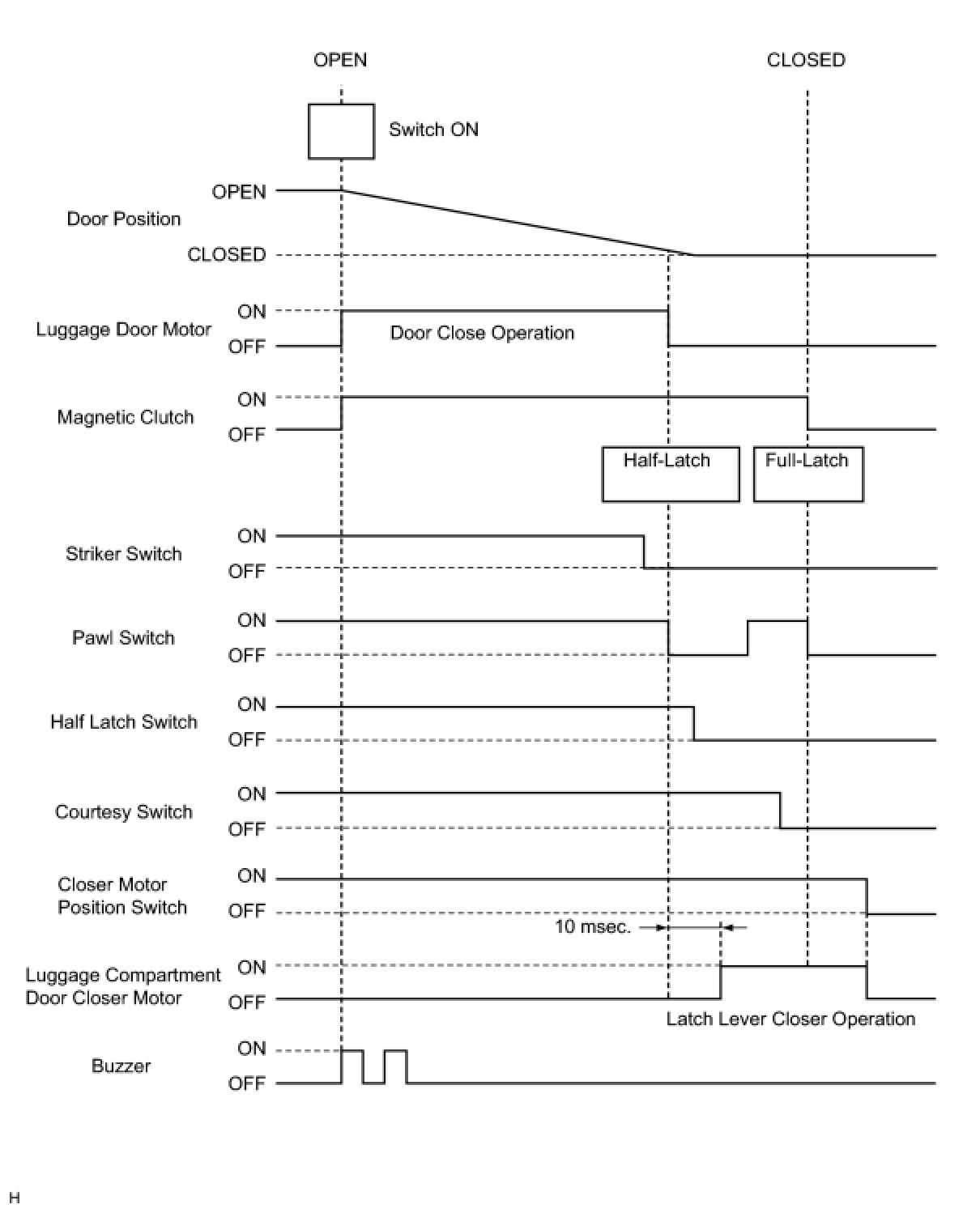

(1) The timing chart below shows the close operation of the power trunk opener and closer system.
