Reassembly

EXTERIOR: FRONT BUMPER: REASSEMBLY

REASSEMBLY

1. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
(a) Install the No. 1 ultrasonic sensor Installation.
2. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
(a) Install the No. 1 ultrasonic sensor retainer Installation.
3. INSTALL NO. 2 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
(a) Install the No. 2 ultrasonic sensor Installation.
4. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
(a) Install the No. 2 ultrasonic sensor retainer Installation.
5. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System) Installation

6. INSTALL FOG LIGHT ASSEMBLY LH Installation

7. INSTALL FOG LIGHT ASSEMBLY RH
HINT: Use the same procedures described for the LH side.





8. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
(a) Install the mounting bracket with the 2 screws.






9. INSTALL RADIATOR GRILLE LOWER LH
(a) Attach the 16 claws to install the radiator grille lower.
10. INSTALL RADIATOR GRILLE LOWER RH
HINT: Use the same procedures described for the LH side.





11. INSTALL FRONT BUMPER COVER LOWER

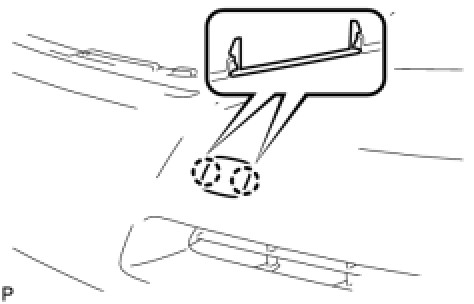

(a) Attach the 2 claws to install the bumper hole cover.
HINT: Attach the claw on the outer side first.
