Disassembly

EXTERIOR: FRONT BUMPER: DISASSEMBLY

DISASSEMBLY

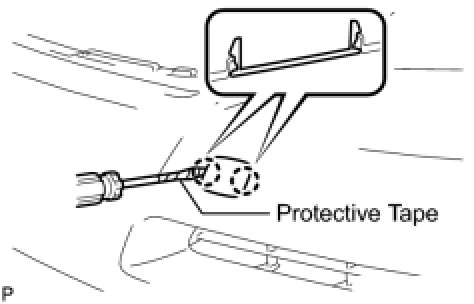

1. REMOVE FRONT BUMPER COVER LOWER
(a) Using a screwdriver, detach the 2 claws and remove the bumper cover lower.
HINT:
- Tape the screwdriver tip before use.
- Detach the claw on the inner side first.

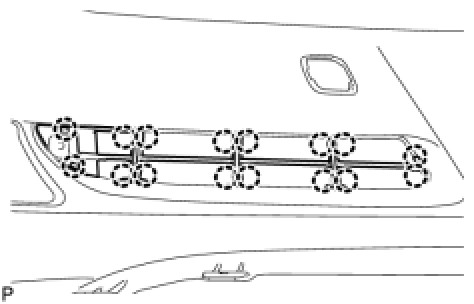

2. REMOVE RADIATOR GRILLE LOWER LH
(a) Detach the 16 claws and remove the radiator grille lower.
3. REMOVE RADIATOR GRILLE LOWER RH
HINT: Use the same procedures described for the LH side.

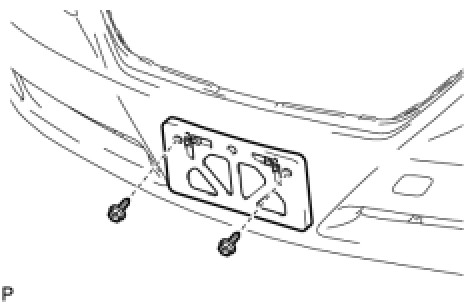

4. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
(a) Remove the 2 screws and mounting bracket.
5. REMOVE FOG LIGHT ASSEMBLY LH Removal

6. REMOVE FOG LIGHT ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

7. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System) Removal

8. REMOVE NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) Removal

9. REMOVE NO. 2 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) Removal

10. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System) Removal

11. REMOVE NO. 2 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System) Removal
