Installation

AUDIO / VISUAL: FRONT DOOR SPEAKER: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
(a) Connect the connector.
(b) Temporarily install the speaker by attaching the claws of the speaker to the door panel.
(c) Install the speaker with the 3 screws.
NOTE: Do not touch the cone part of the speaker.

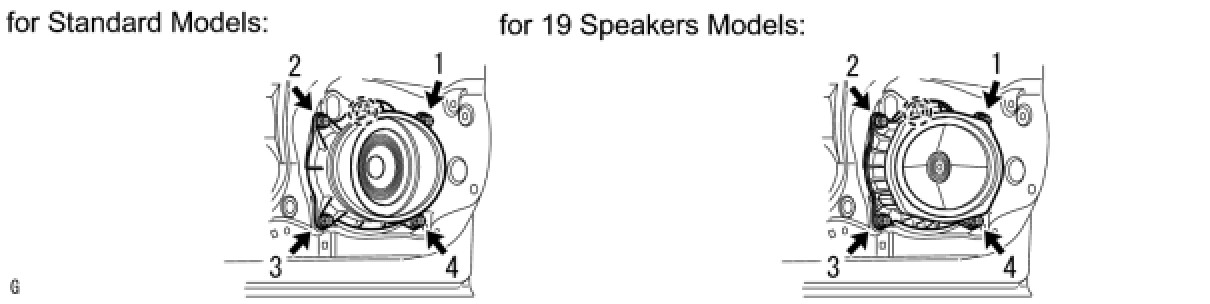

HINT: Install the screws in the order shown in the illustration.





2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Installation

3. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY Installation

4. INSTALL DOOR INSIDE HANDLE BEZEL Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
