Pinout Values and Diagnostic Parameters

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: TERMINALS OF ECU

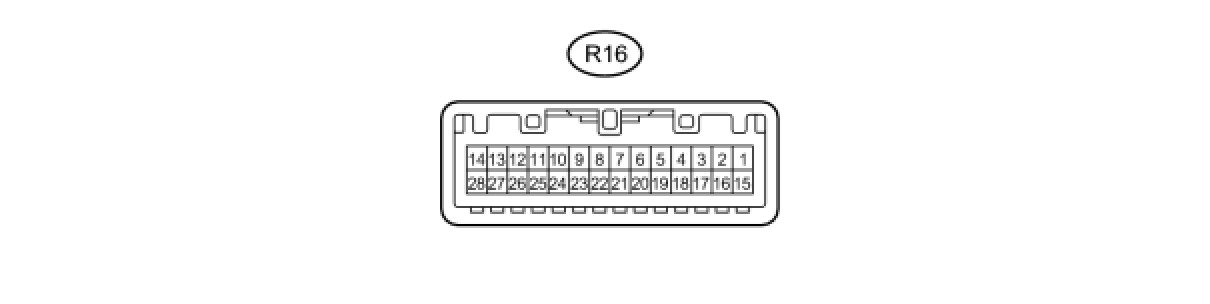

TERMINALS OF ECU

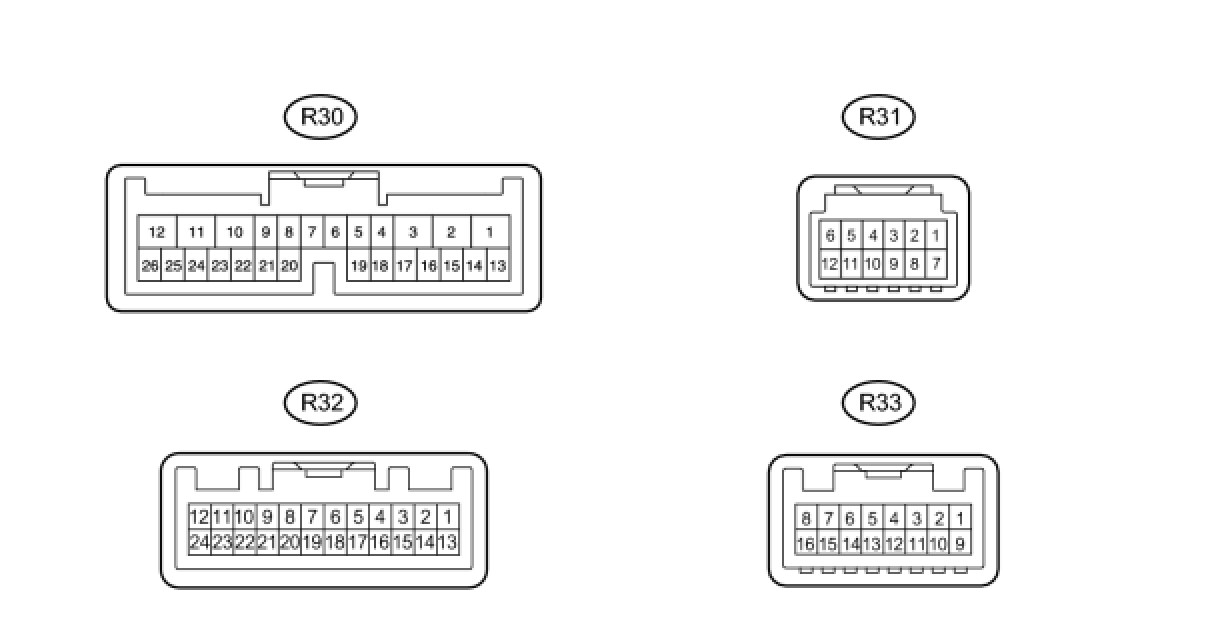

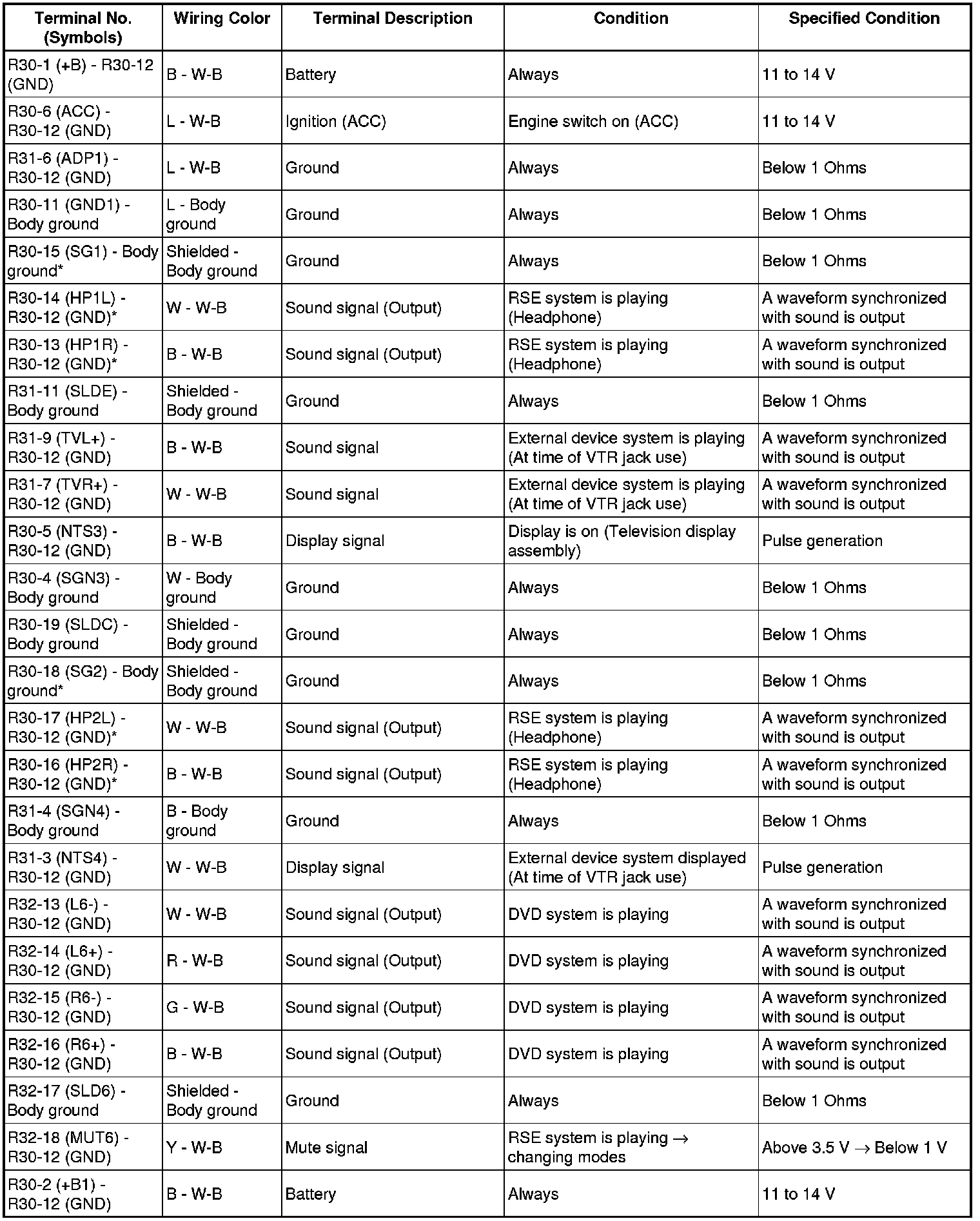

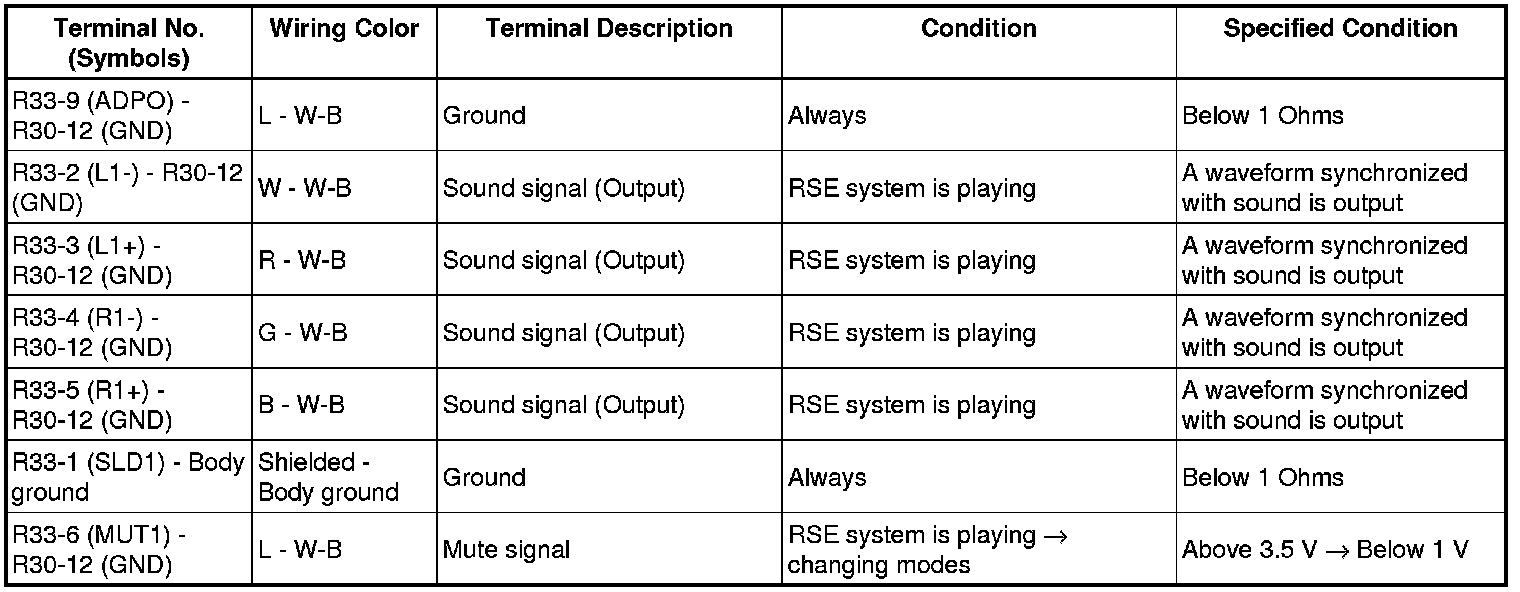

1. CHECK MULTI-DISPLAY CONTROLLER (RSE ECU)

















HINT: *: w/ Disc player

2. CHECK TELEVISION DISPLAY ASSEMBLY









HINT: *1: w/ Advanced Parking Guidance System
*2: w/o Advanced Parking Guidance System





(a) Using an oscilloscope, check the waveform.

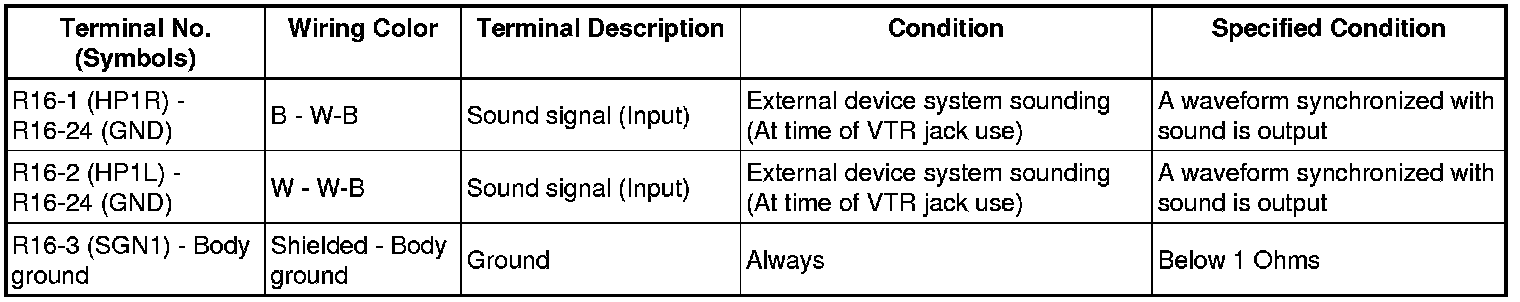

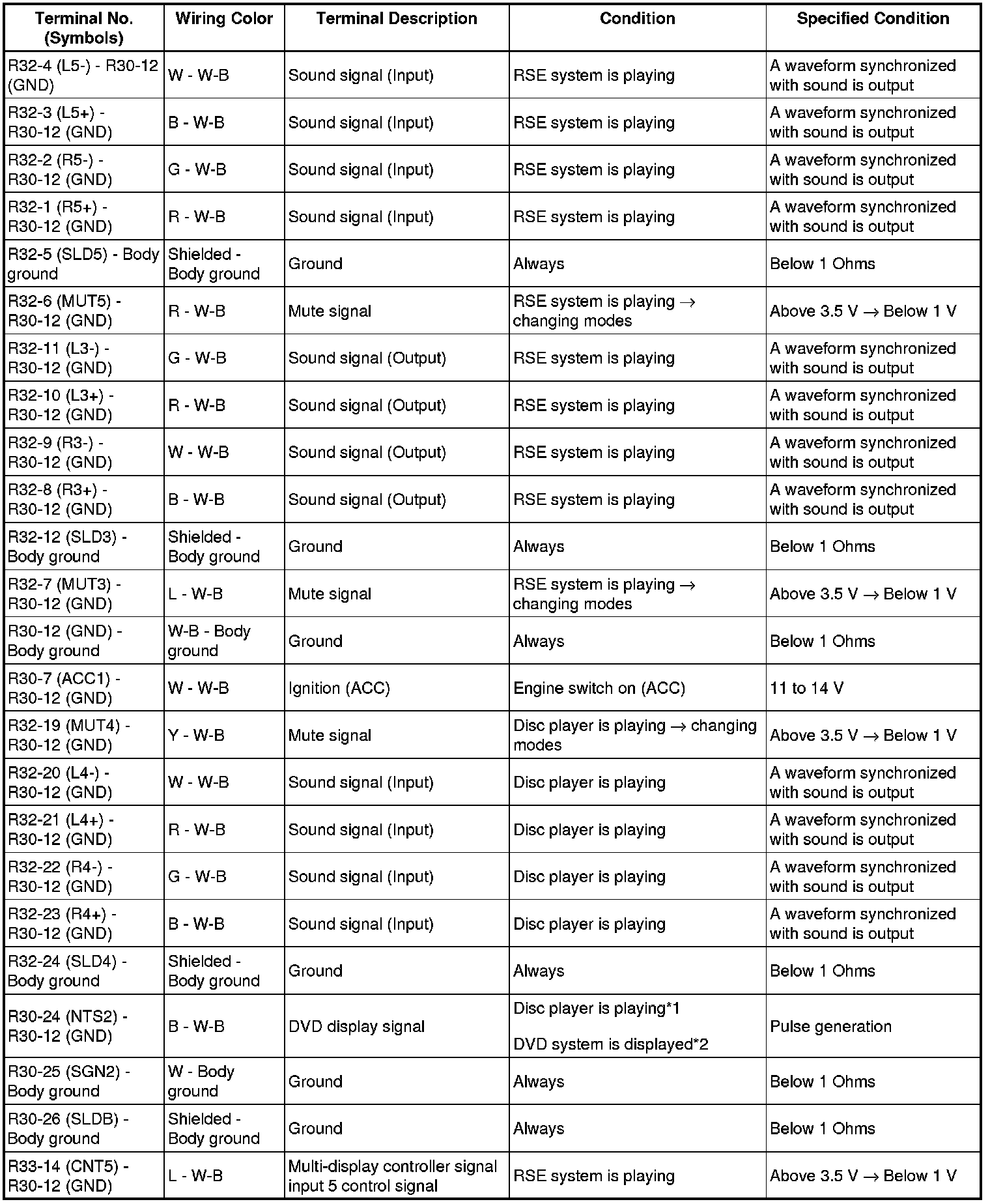

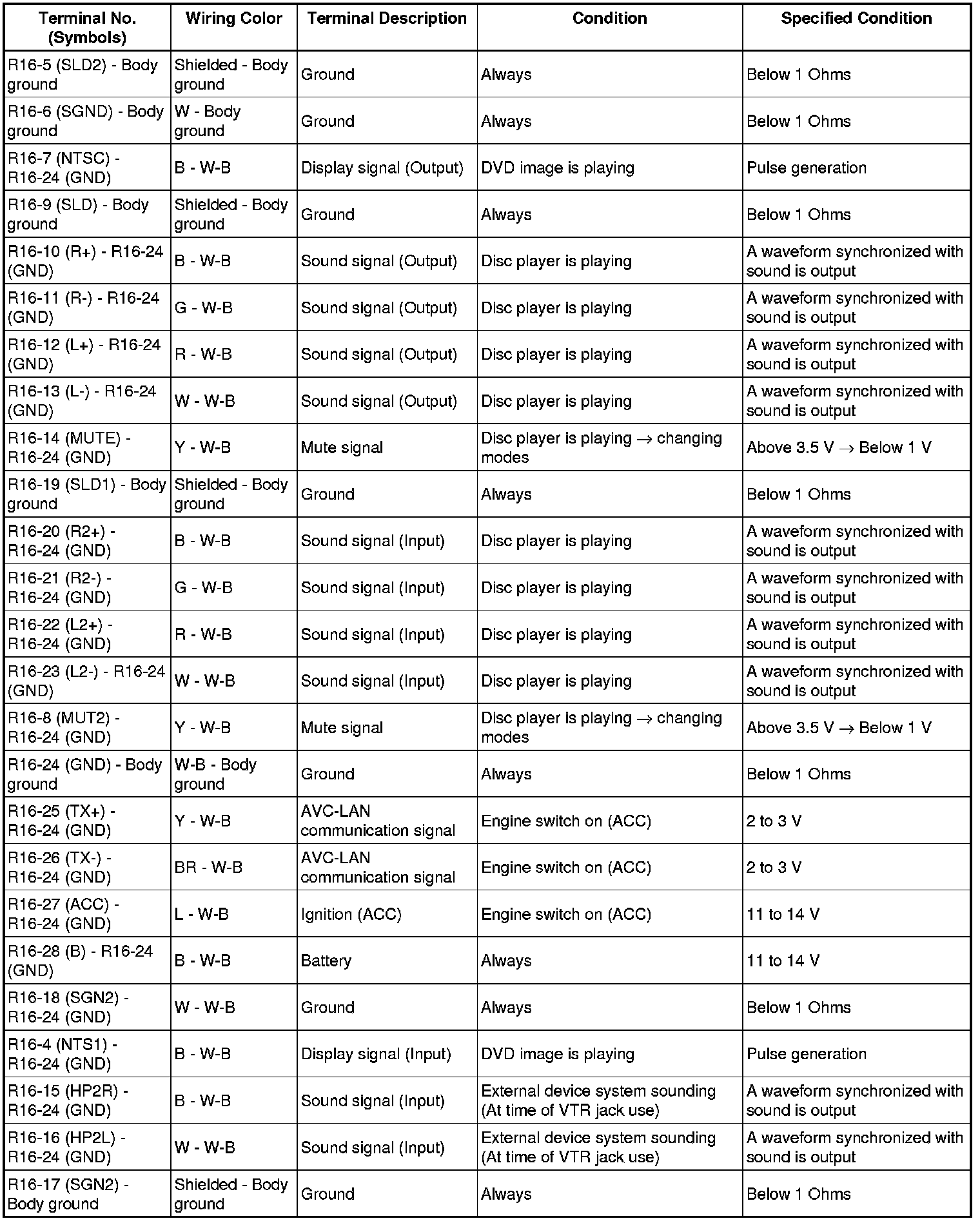

3. CHECK DISC PLAYER

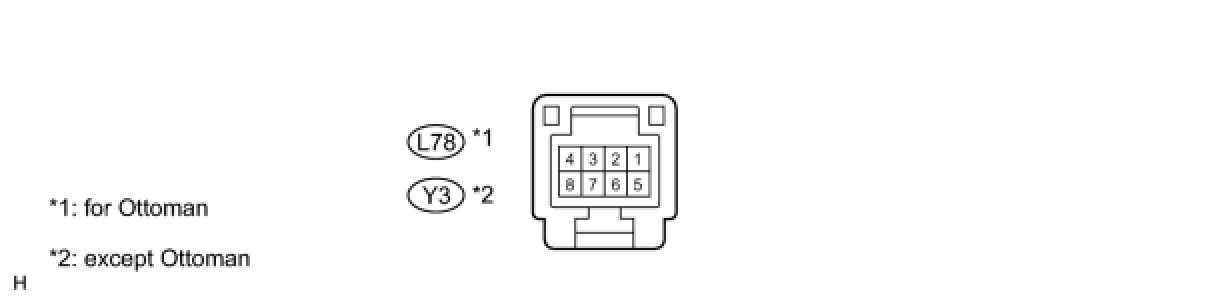

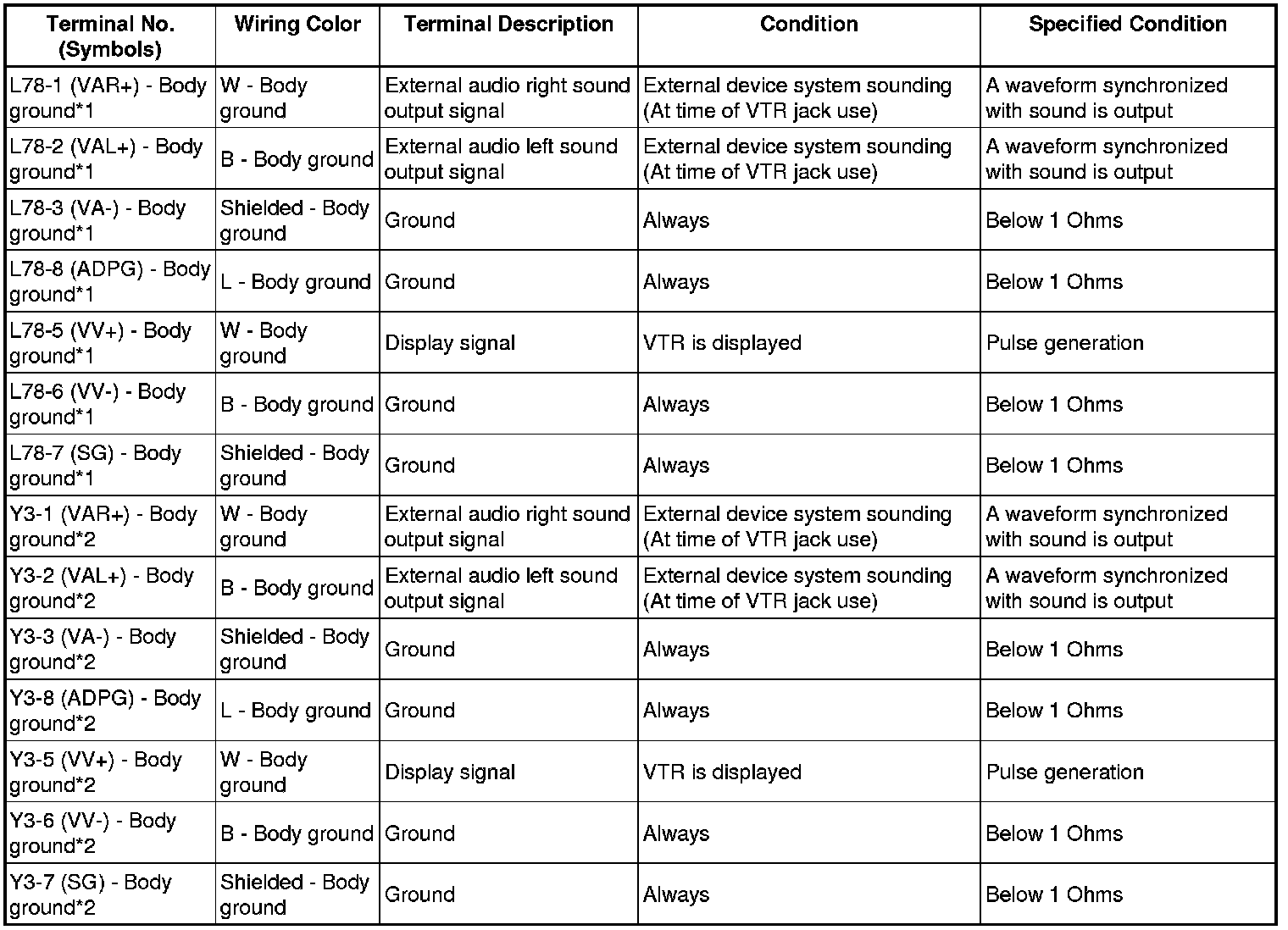

4. CHECK VTR TERMINAL









HINT: *1: w/ Ottoman
*2: w/o Ottoman

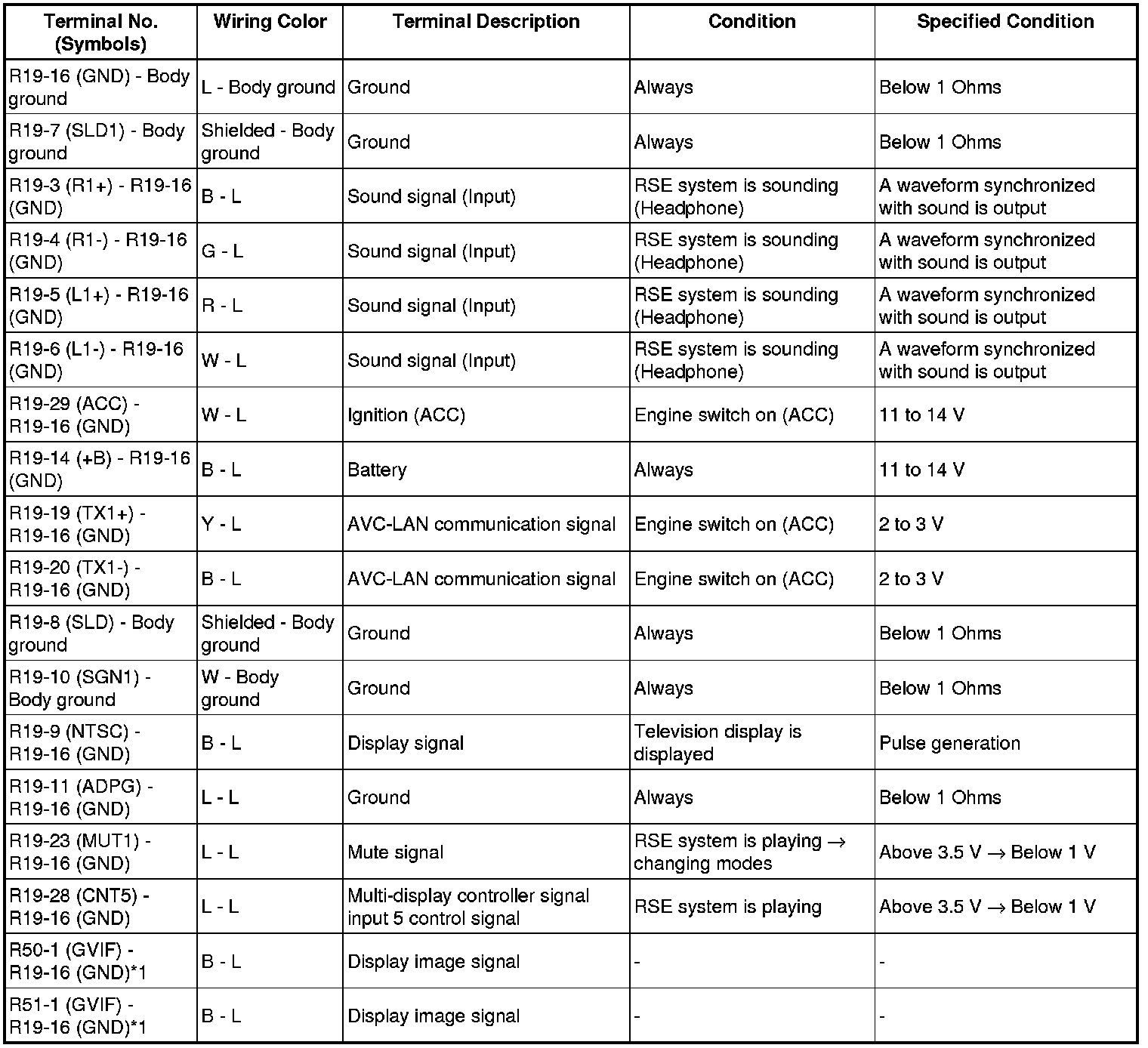

5. CHECK RADIO RECEIVER Audio and Visual System (w/ Multi-display)

6. CHECK MULTI-DISPLAY Audio and Visual System (w/ Multi-display)
