PRE-COLLISION: DRIVER MONITOR CAMERA: INSTALLATION

INSTALLATION

1. INSTALL DRIVER MONITOR CAMERA

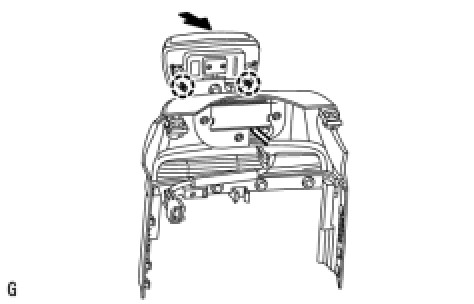

(a) Attach the claws to install the camera.






(b) Install the camera with the 3 screws.
Torque: 1.8 Nm (18 kgf-cm, 16 in-lbf)
2. INSTALL DRIVER MONITOR BRACKET






(a) Attach the claw to install the bracket.
(b) Install the screw.
Torque: 0.9 Nm (9.0 kgf-cm, 8.0 in-lbf)
3. INSTALL STEERING COLUMN COVER (for Upper Side)






(a) Connect the connector.
(b) Attach the claw and 4 clips to install the cover.






4. INSTALL STEERING COLUMN COVER (for Lower Side)
(a) Attach the 2 claws to install the cover.
(b) Install the 3 screws.
5. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Check Mode Procedure.
