Installation

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

INSTALLATION





1. INSTALL WIRELESS DOOR LOCK BUZZER
(a) Attach the claw to install the buzzer.
(b) Connect the connector.

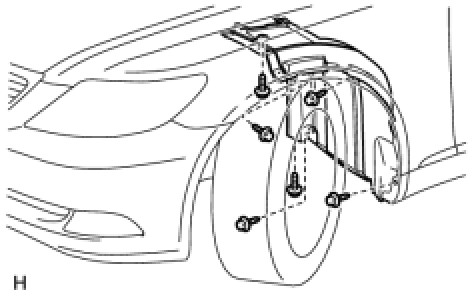

2. INSTALL FRONT FENDER LINER LH






(a) Install the 6 screws to the fender liner.

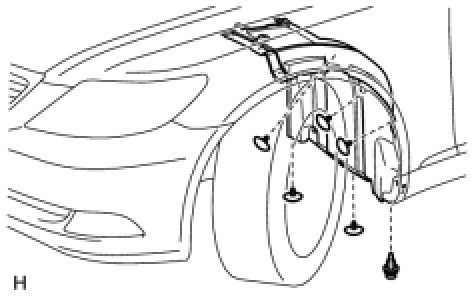

(b) Install the 6 clips.

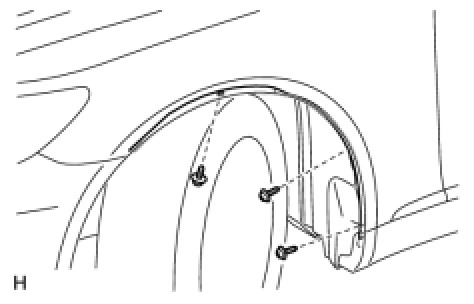

3. INSTALL FRONT FENDER WHEEL OPENING MOULDING LH
(a) Install the moulding with the 3 screws.
