Installation

AUDIO / VISUAL: RADIO ANTENNA CORD: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

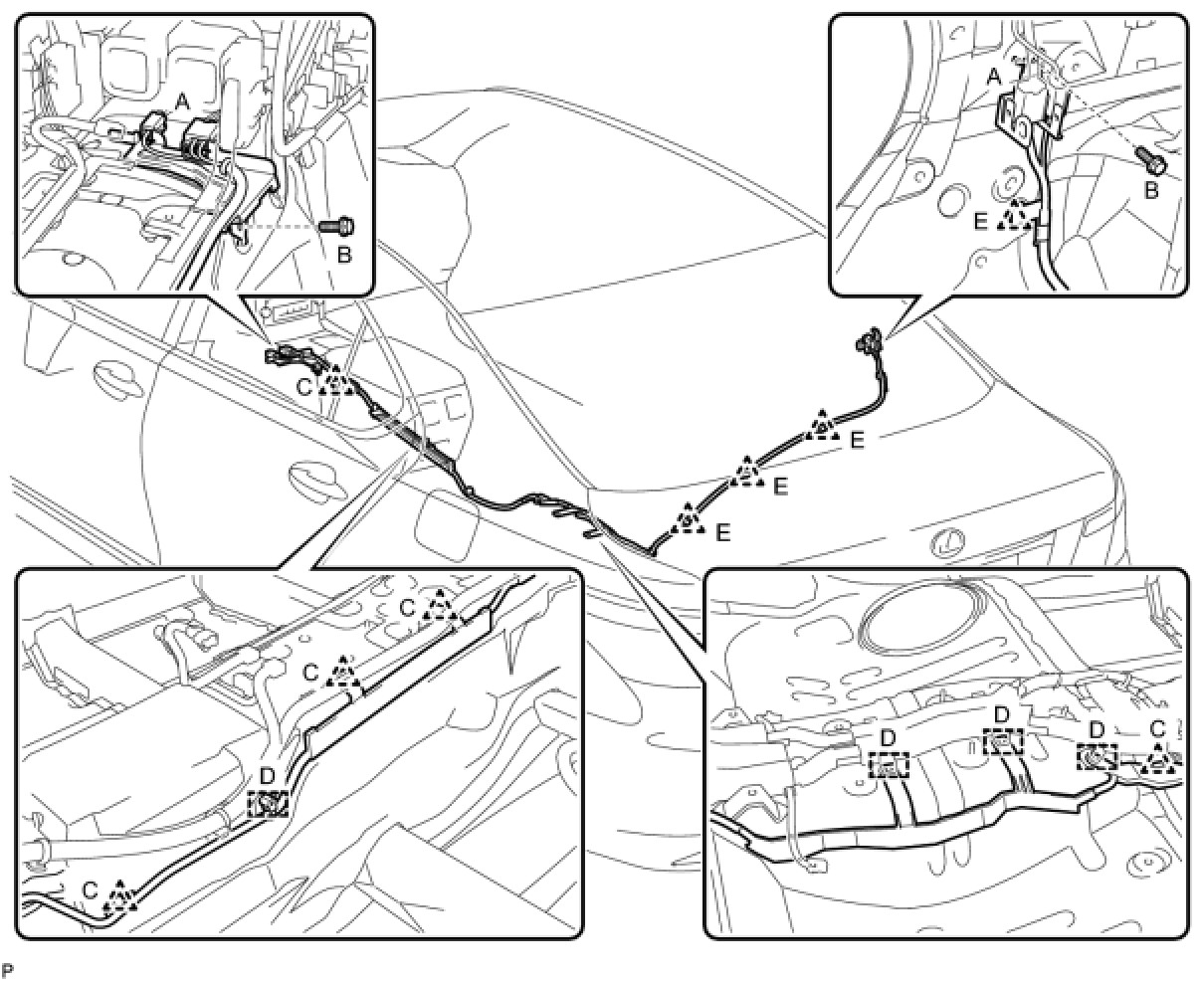

1. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Long Body)
(a) Attach the 4 clips labeled E.
(b) Attach the 4 clamps labeled D to the floor stud bolts.
(c) Attach the 5 clips labeled C.
(d) Install the 2 bolts labeled B.
(e) Connect the connectors labeled A to install the antenna coed.

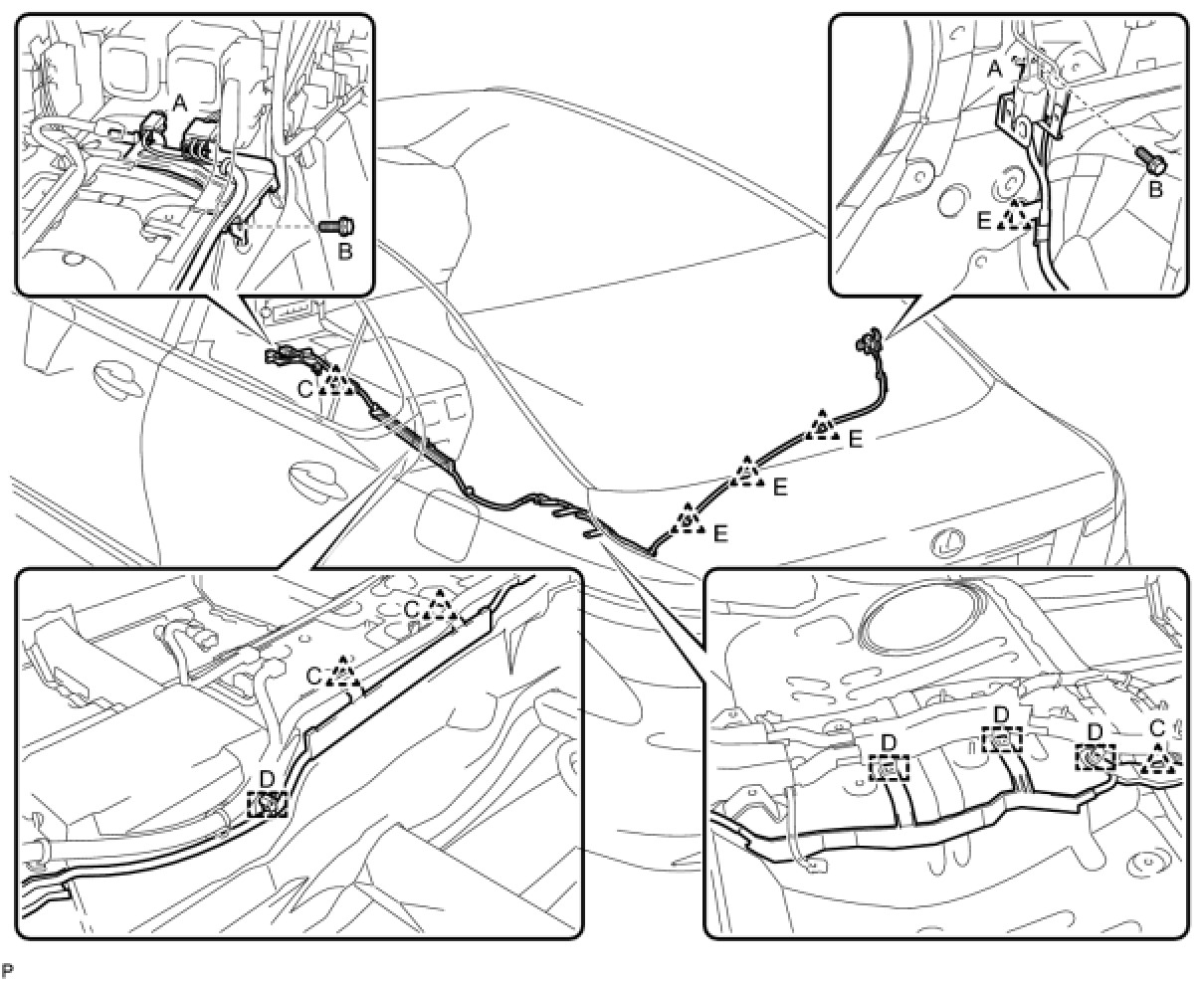

2. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (for Standard Body)
(a) Attach the 4 clips labeled E.
(b) Attach the 4 clamps labeled D to the floor stud bolts.
(c) Attach the 4 clips labeled C.
(d) Install the 2 bolts labeled B.
(e) Connect the connectors labeled A to install the antenna cord.





3. INSTALL ROOF SIDE GARNISH INNER RH Installation

4. INSTALL REAR SEAT SIDE GARNISH RH Installation

5. INSTALL REAR DOOR SCUFF PLATE RH
(a) Install the rear door scuff plate RH for standard body Installation.
(b) Install the rear door scuff plate RH for long body Installation.
6. INSTALL REAR SEAT ASSEMBLY
(a) Install the rear seat for fixed seat Installation.
(b) Install the rear seat for ottoman Installation.
(c) Install the rear seat for power seat Installation.
7. INSTALL FRONT SEAT ASSEMBLY RH
(a) Install the front seat RH Installation.
8. INSTALL FRONT CONSOLE BOX ASSEMBLY
(a) Remove the front console box Installation.
9. INSTALL ANTENNA CORD SUB-ASSEMBLY
(a) Attach the clip and install the antenna cord.
(b) Connect the 2 connectors.





10. INSTALL ANTENNA CORD SUB-ASSEMBLY (for DVD)
(a) Attach the clip and install the antenna cord.
(b) Connect the 3 connectors.





11. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER Installation

12. INSTALL CONSOLE UPPER PANEL REAR Installation

13. INSTALL NO. 3 BOX PANEL Installation

14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

15. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

16. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

17. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET Installation

18. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET Installation

19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
20. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

21. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
