Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1201/51: Engine Control System Malfunction

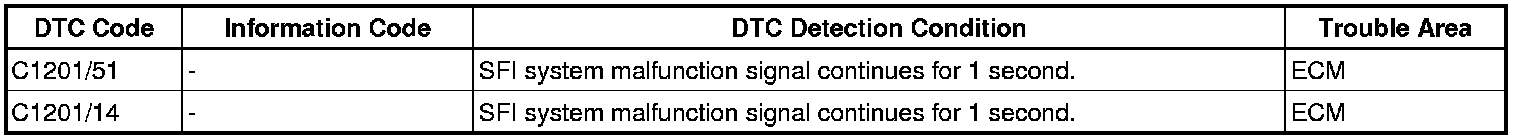

DTC C1201/51 - Engine Control System Malfunction

DTC C1201/14 - Engine Control System Malfunction

DESCRIPTION

The skid control ECU is connected to the ECM via CAN communication. When the signals from the engine are input normally, the fail-safe is canceled and the DTC is not stored.
HINT: When a code for the VSC is output, VSC code "51" will be displayed. When a code for the brake hold is output, the brake hold standby indicator code "14" will be displayed.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC FOR SFI SYSTEM
(a) Clear the DTC (SFI system) DTC Check / Clear.
(b) Check the DTC (SFI system) DTC Check / Clear.

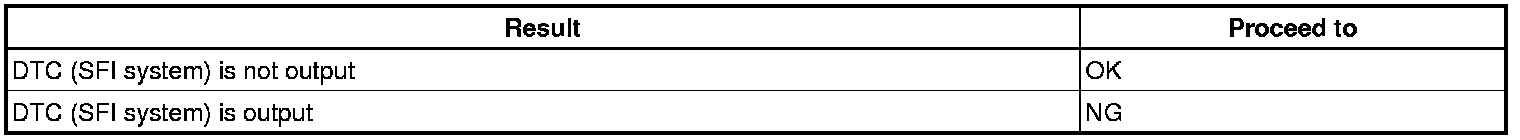

Result





NG -- GO TO SFI SYSTEM
OK -- END
