Pre-Collision System (w/o Driver Monitor Camera)

PRE-COLLISION: PRE-COLLISION SYSTEM (w/o Driver Monitor Camera): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Pre-collision system

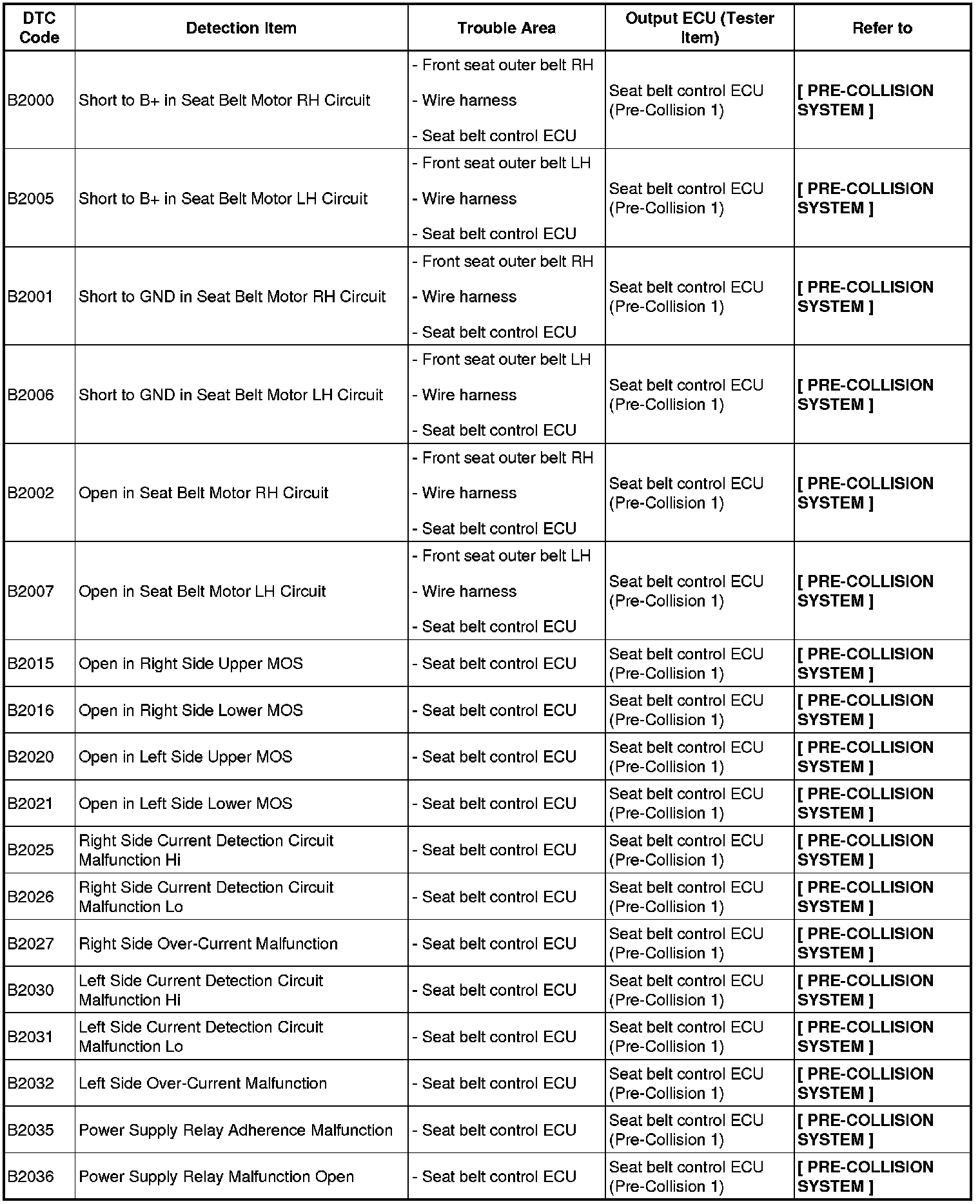

B2000 - B2036:

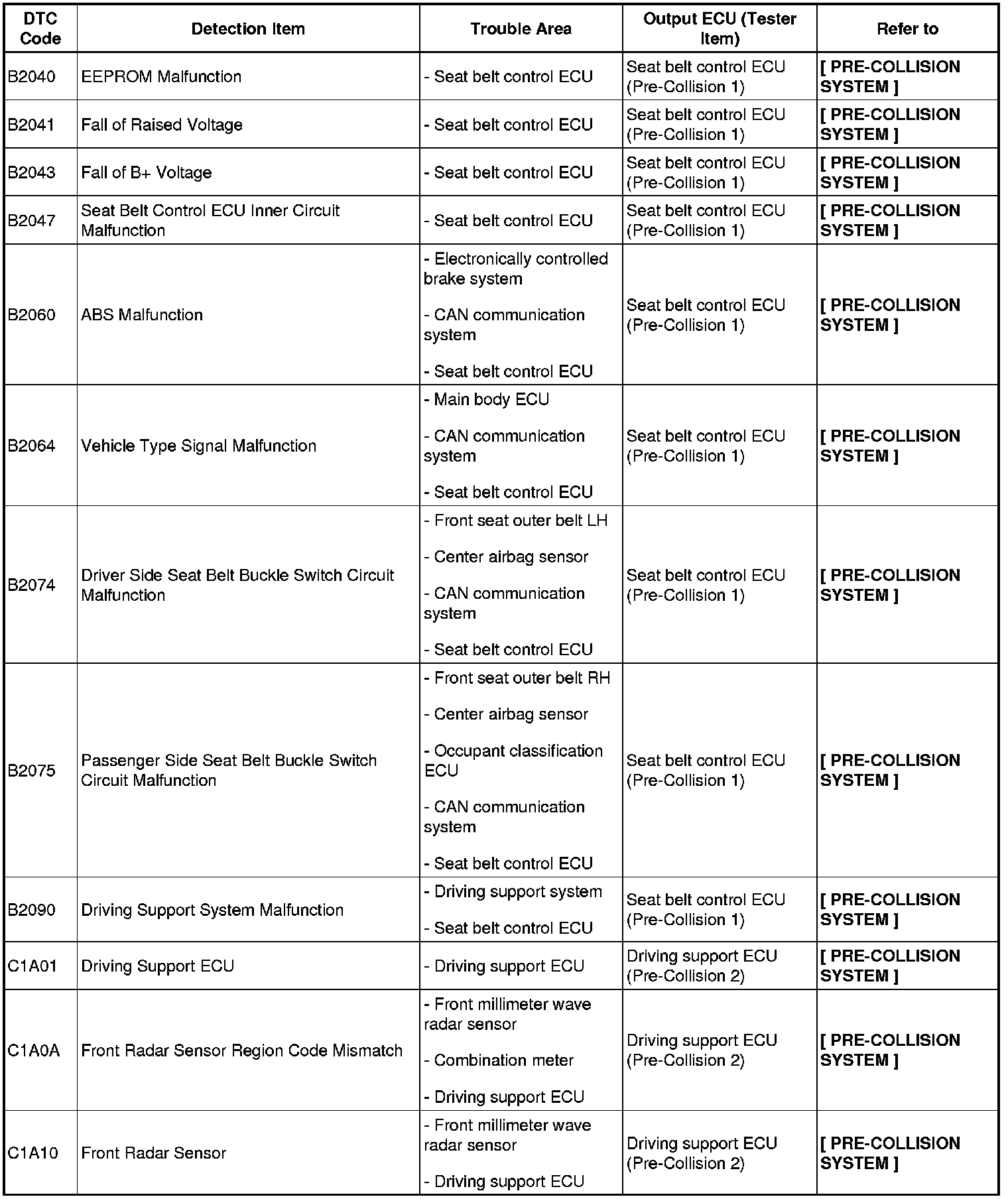

B2040 - B2090, C1A01 - C1A10, C1A0A:

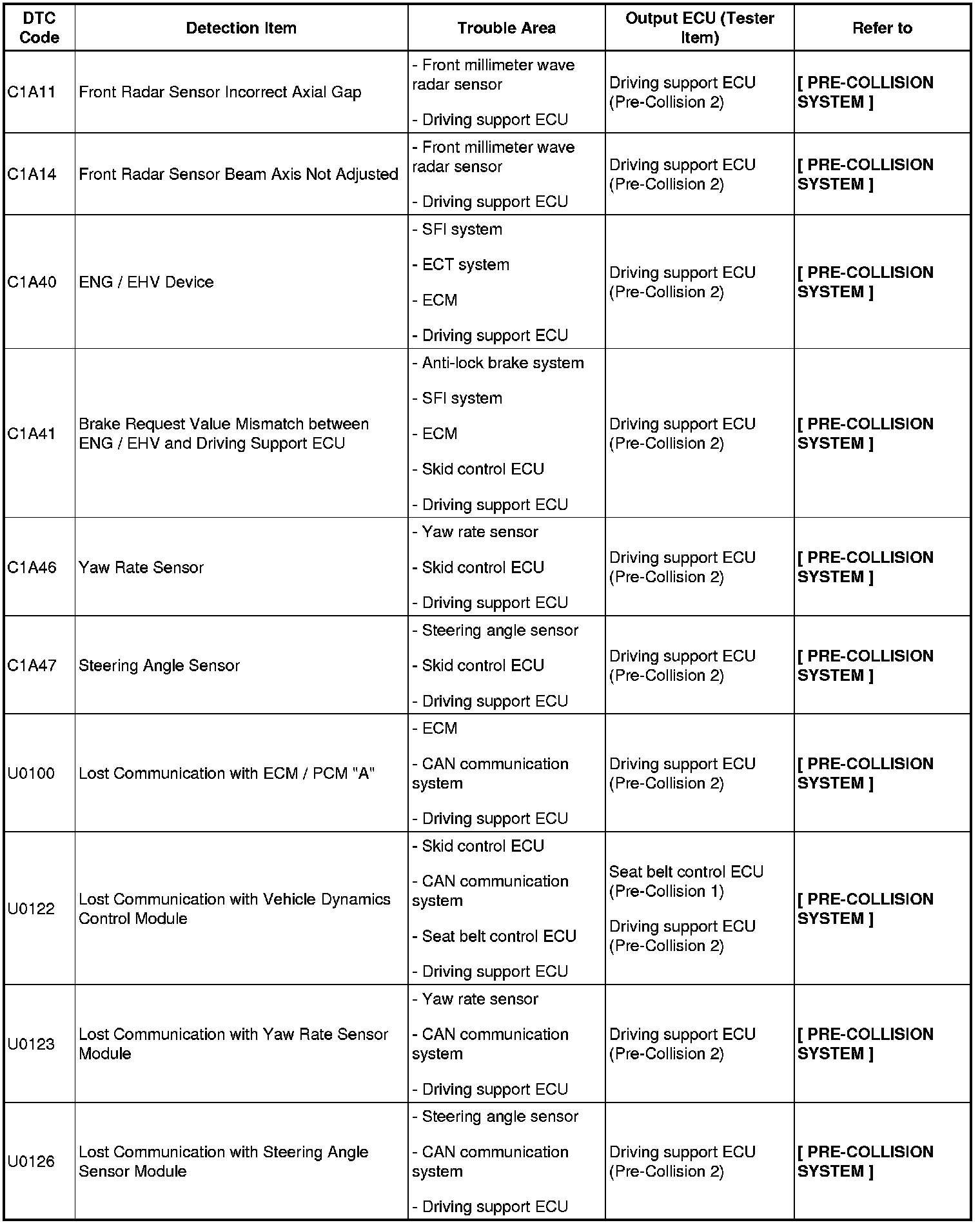

C1A11 - C1A47, U0100 - U0126:

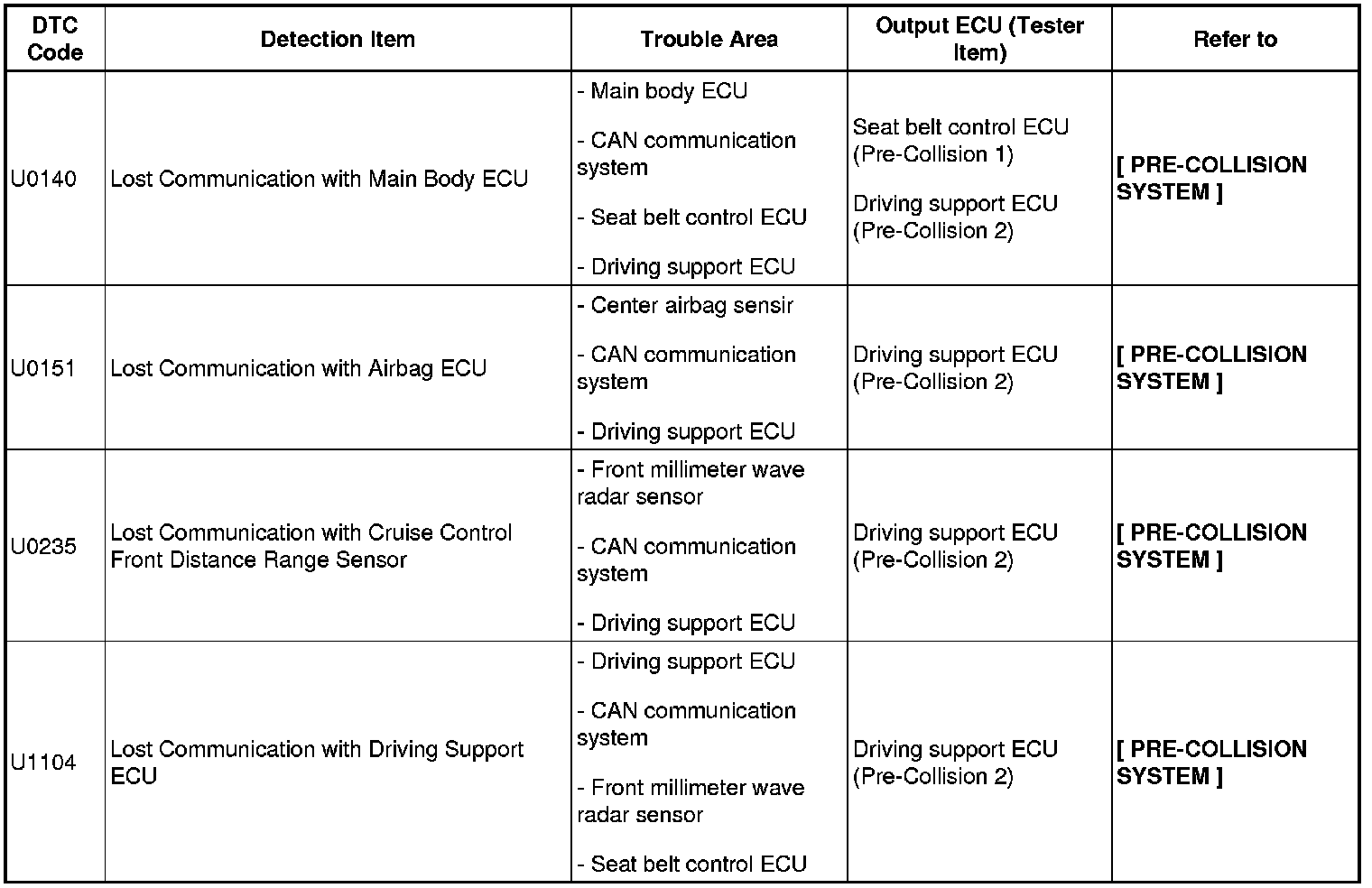

U0140 - U1104:
