Pre-Collision System (w/ Driver Monitor Camera)

PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor Camera): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If the normal codes for the pre-collision system and CAN communication system are output but the following problem symptoms are present, perform the malfunction diagnosis by following the "Suspected Area" procedures below.

Pre-collision system

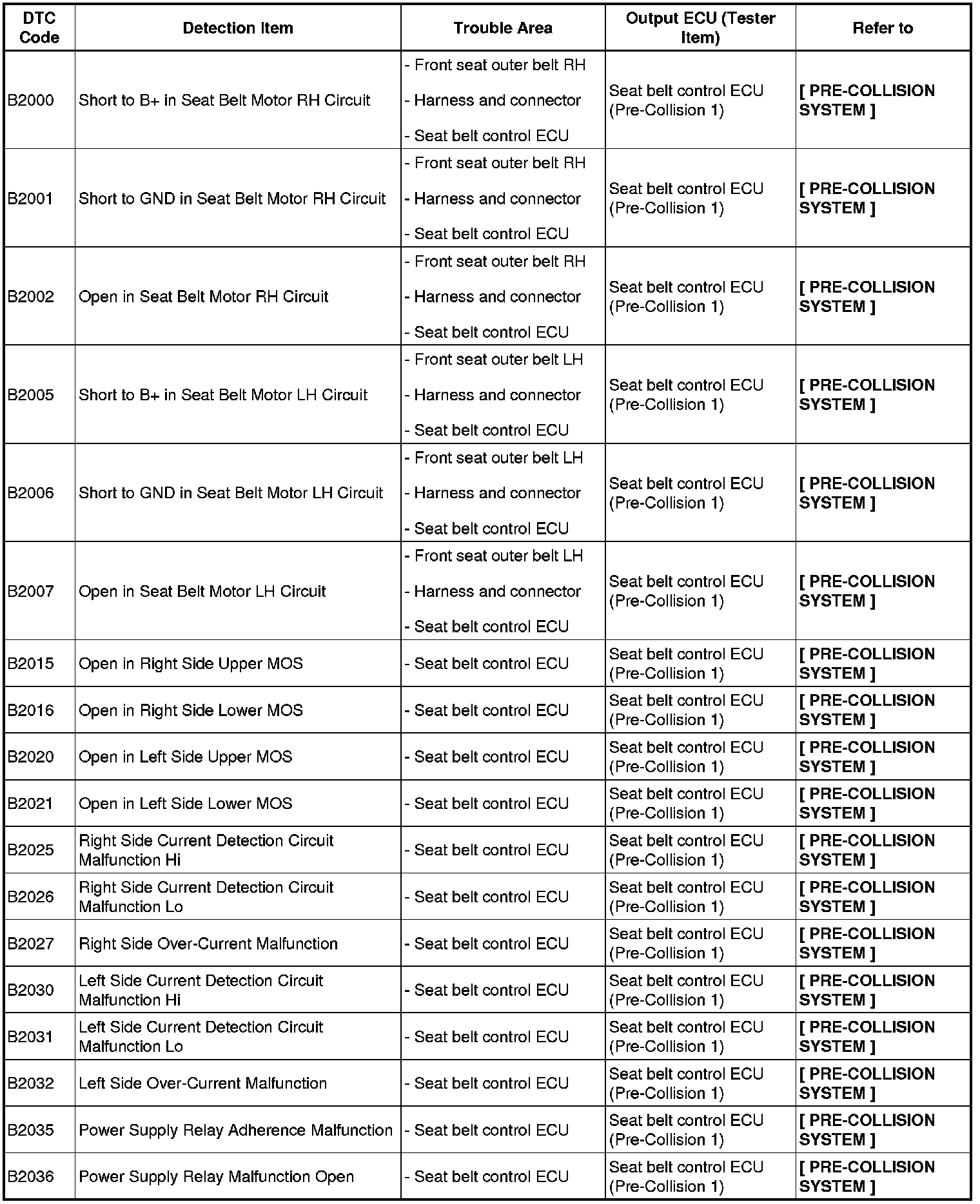

B2000 - B2036:

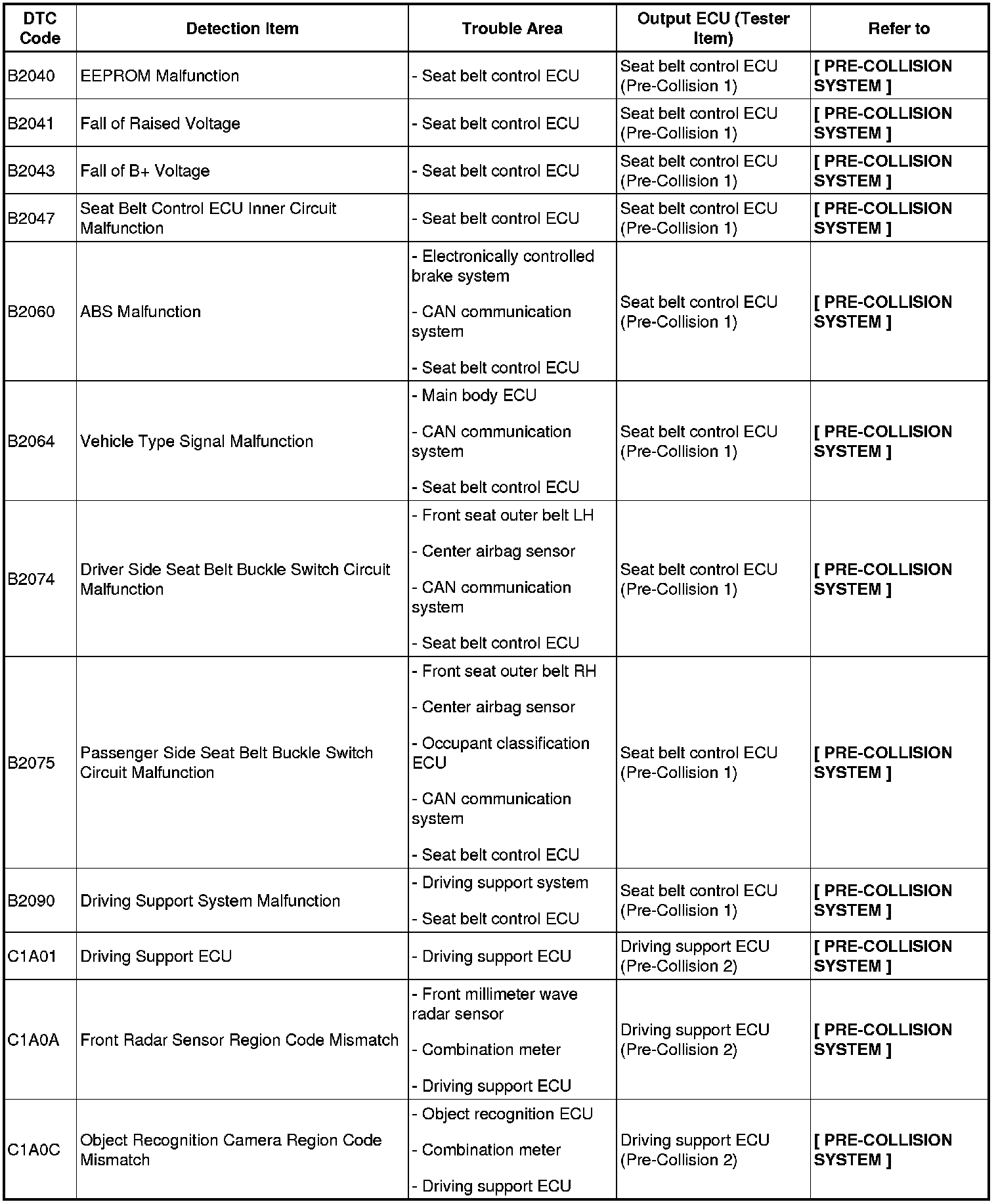

B2040 - B2090, C1A01, C1A0A - C1A0c:

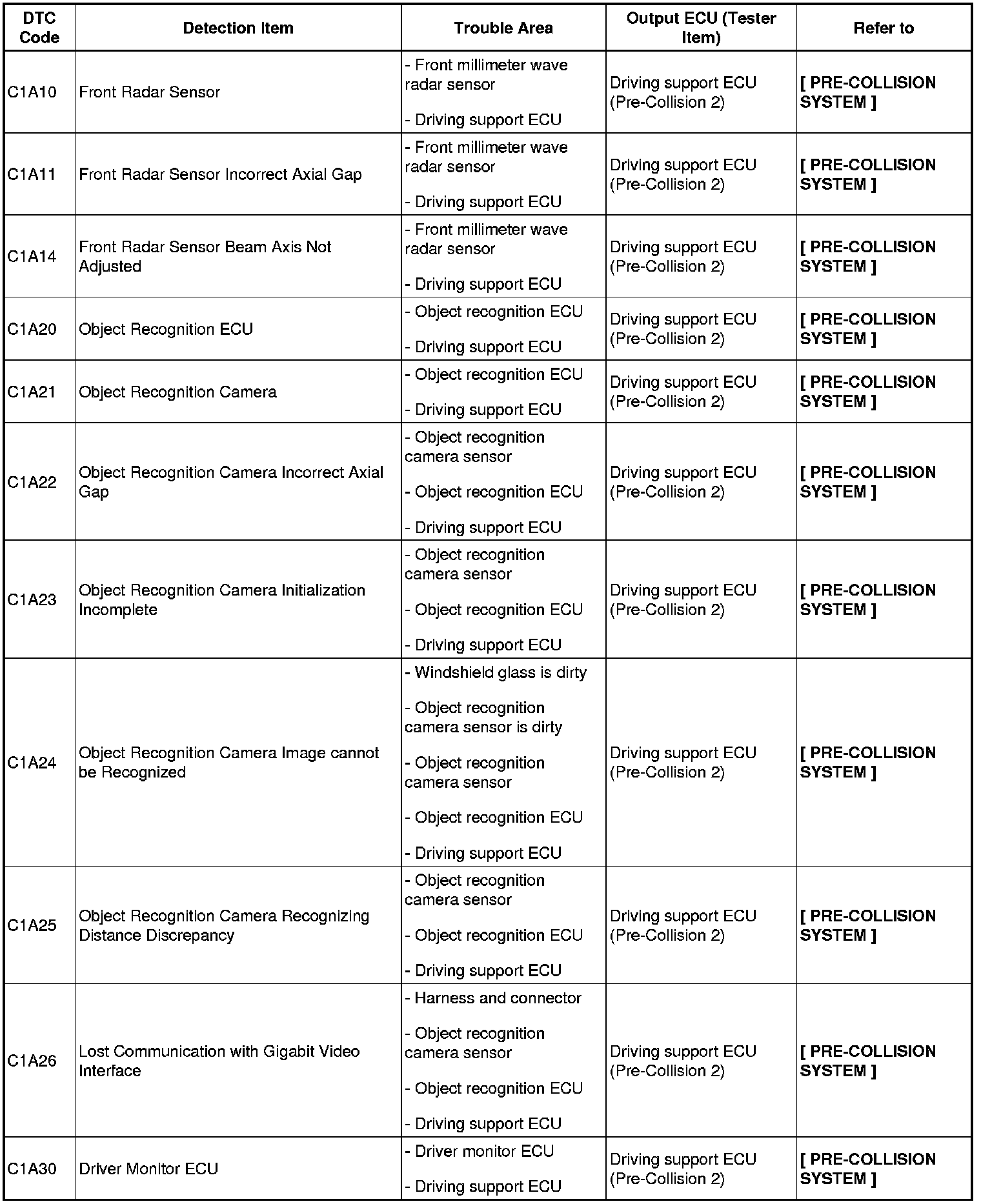

C1A10 - C1A30:

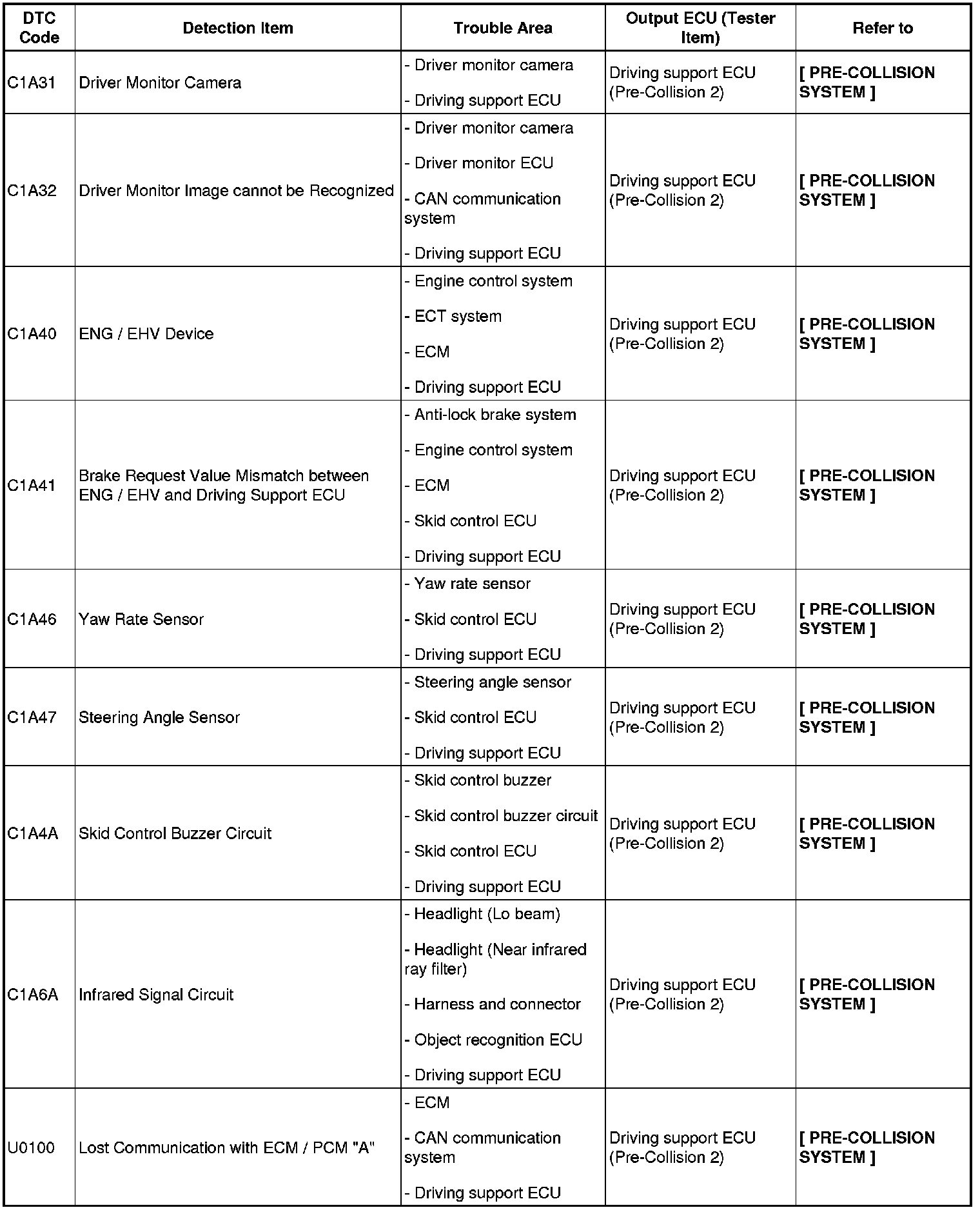

C1A31 - C1A47, C1A4A - C1A6A, U0100:

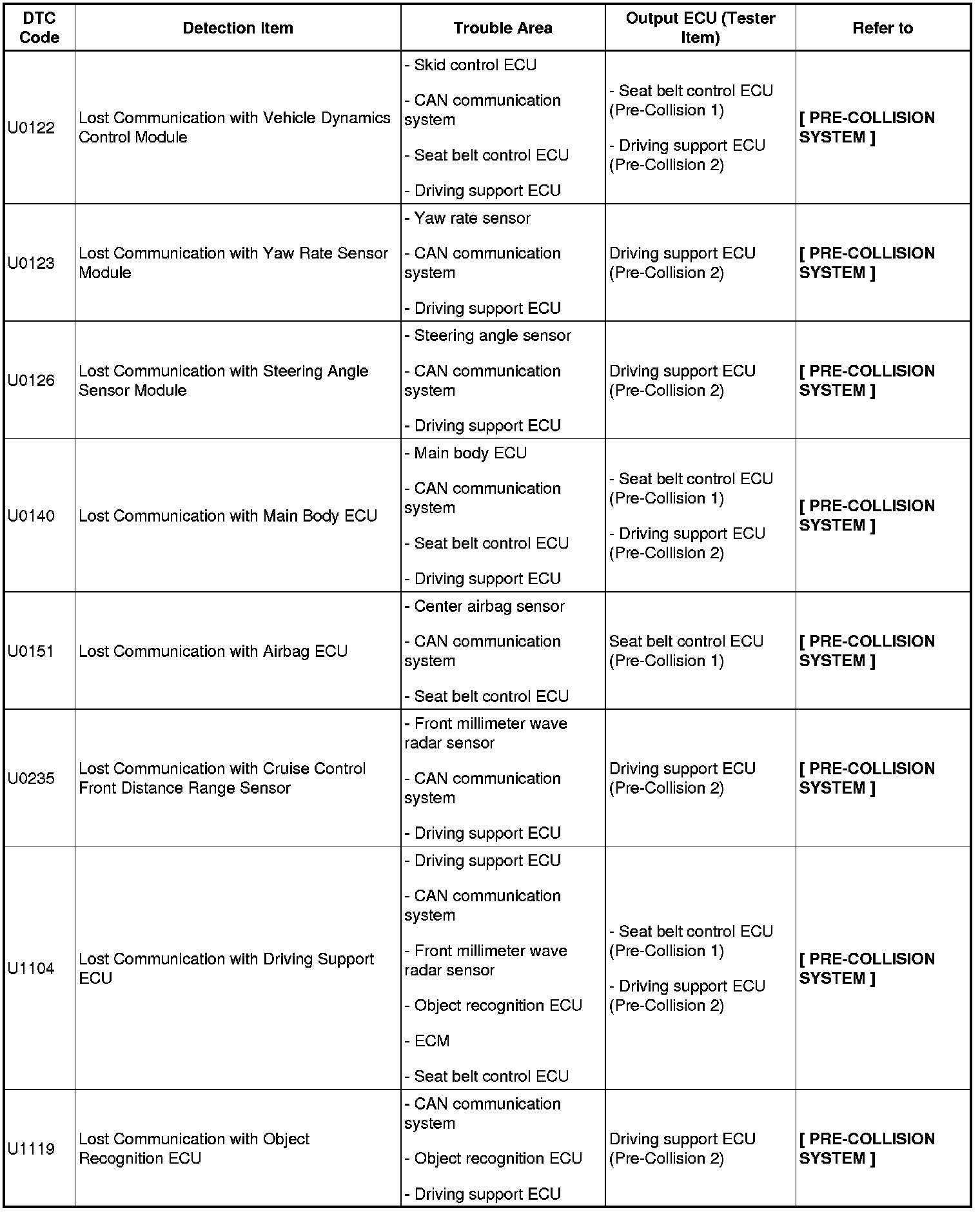

U0122 - U1119:

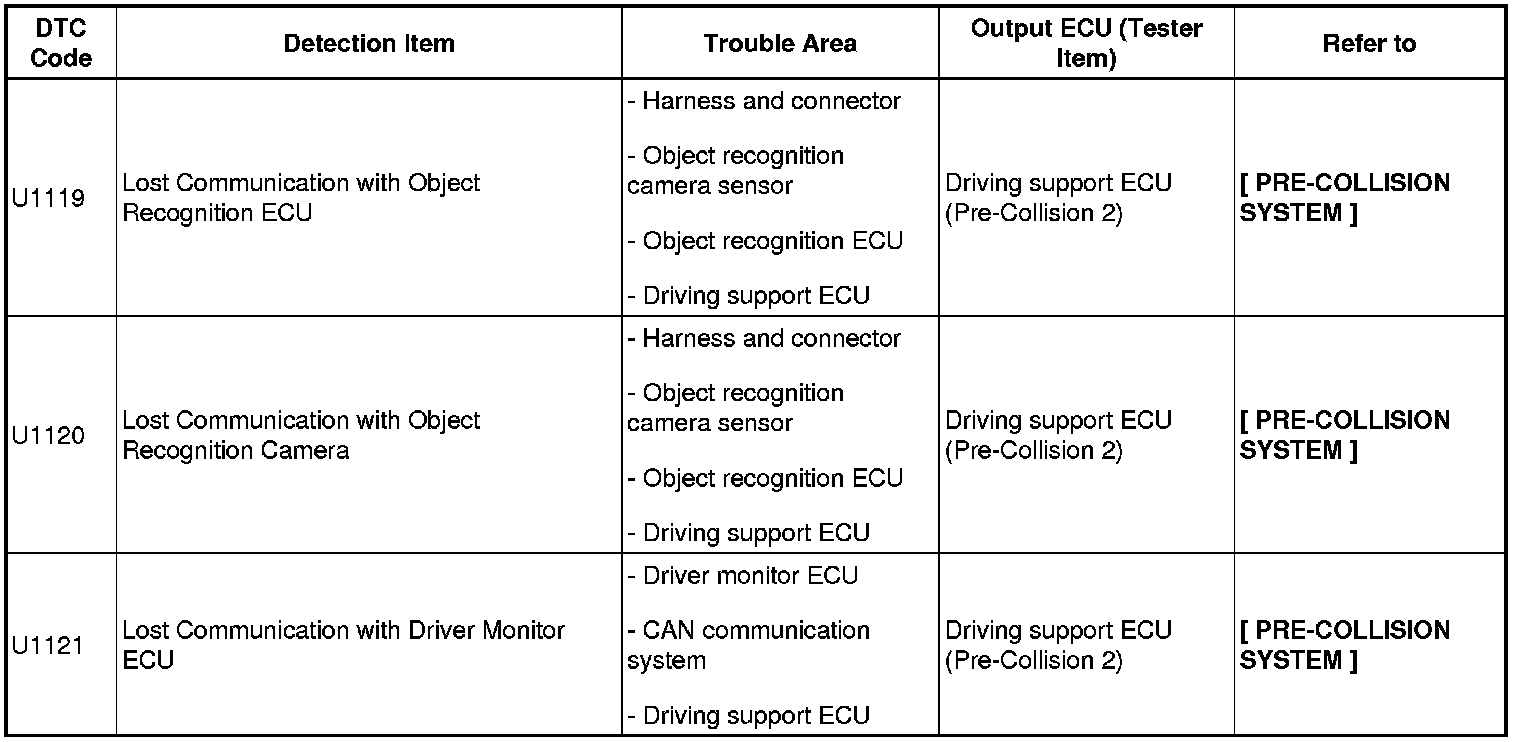

U1119 - U1121:
