Navigation System (for HDD)

NAVIGATION: NAVIGATION SYSTEM (for HDD): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Navigation system

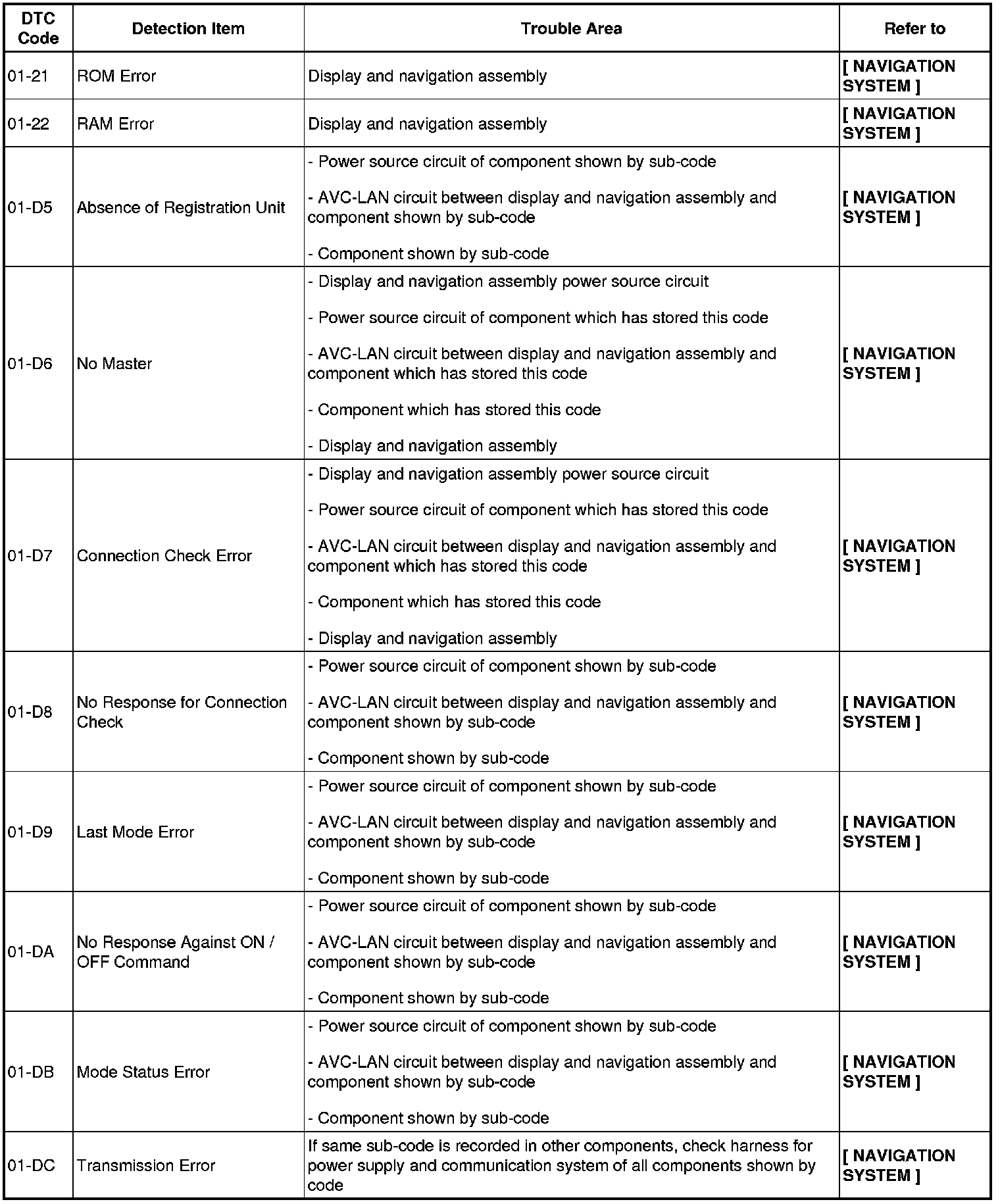

01-21 - 01-22, 01-D5 - 01-D9, 01-DA - 01-DC:

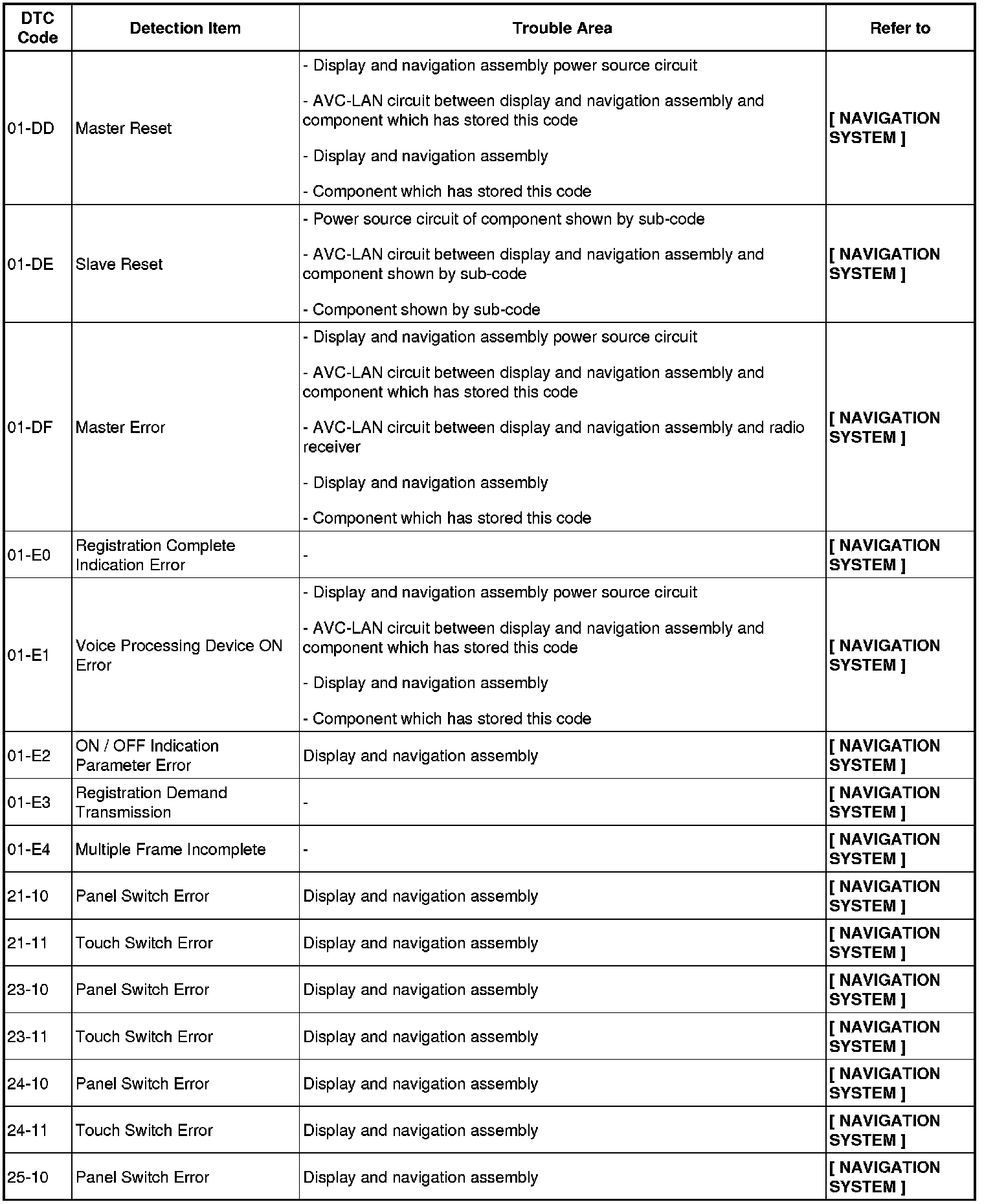

01-DD - 01-DF, 01-E0 - 01-E4, 21-10 - 25-10:

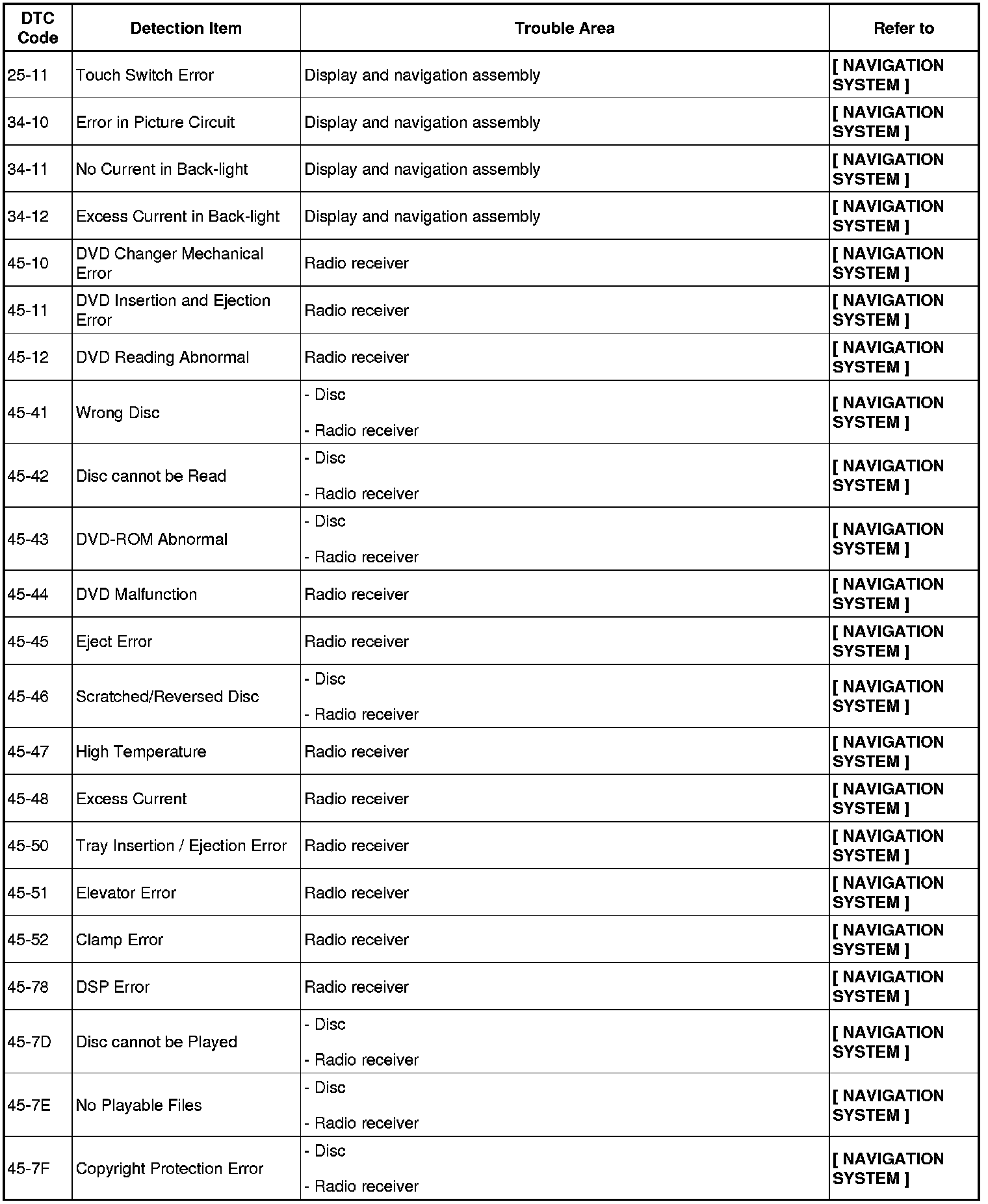

25-11 - 45-78, 45-7D - 45-7F:

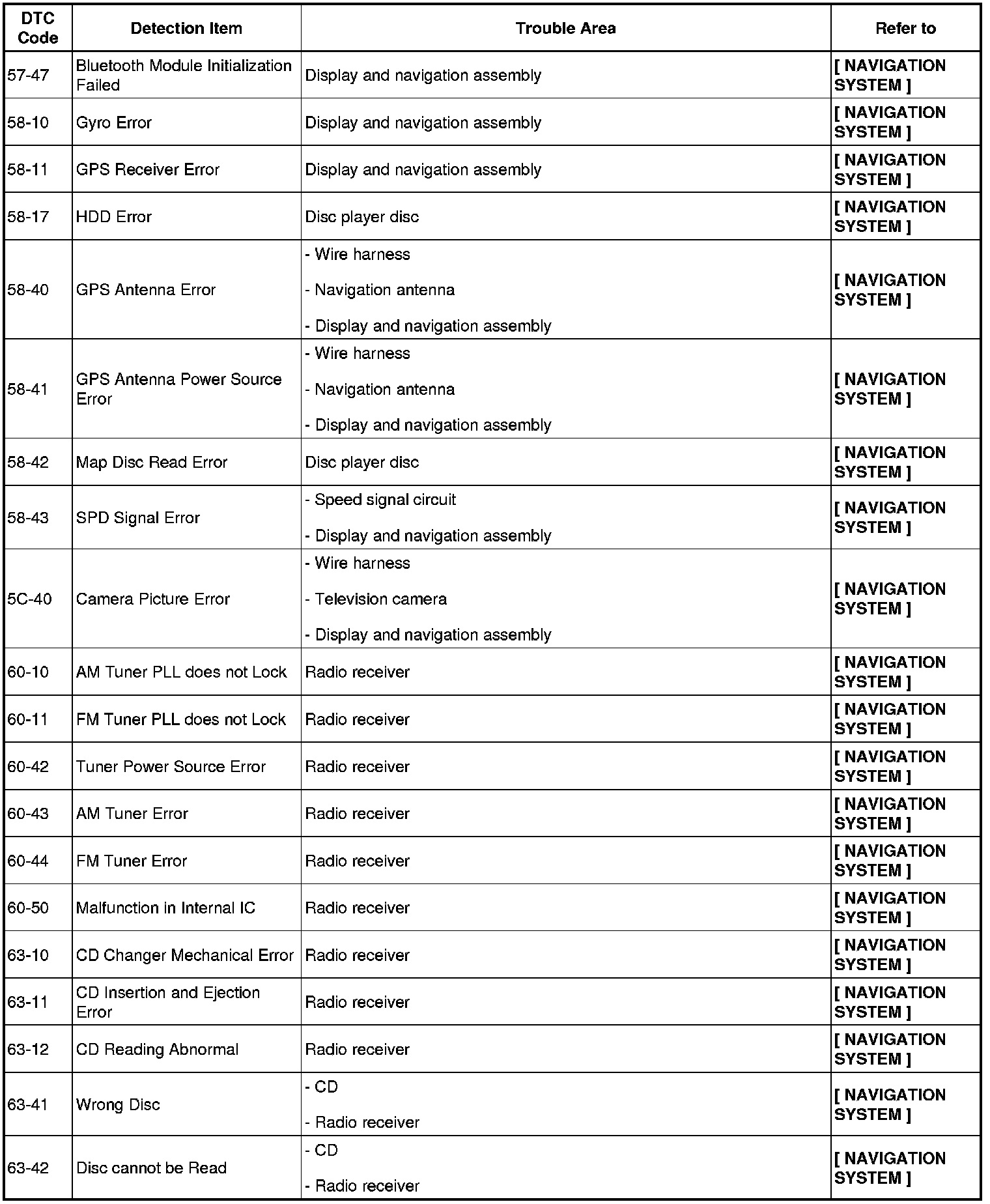

57-47 - 58-43, 5C-40, 60-10 - 63-42:

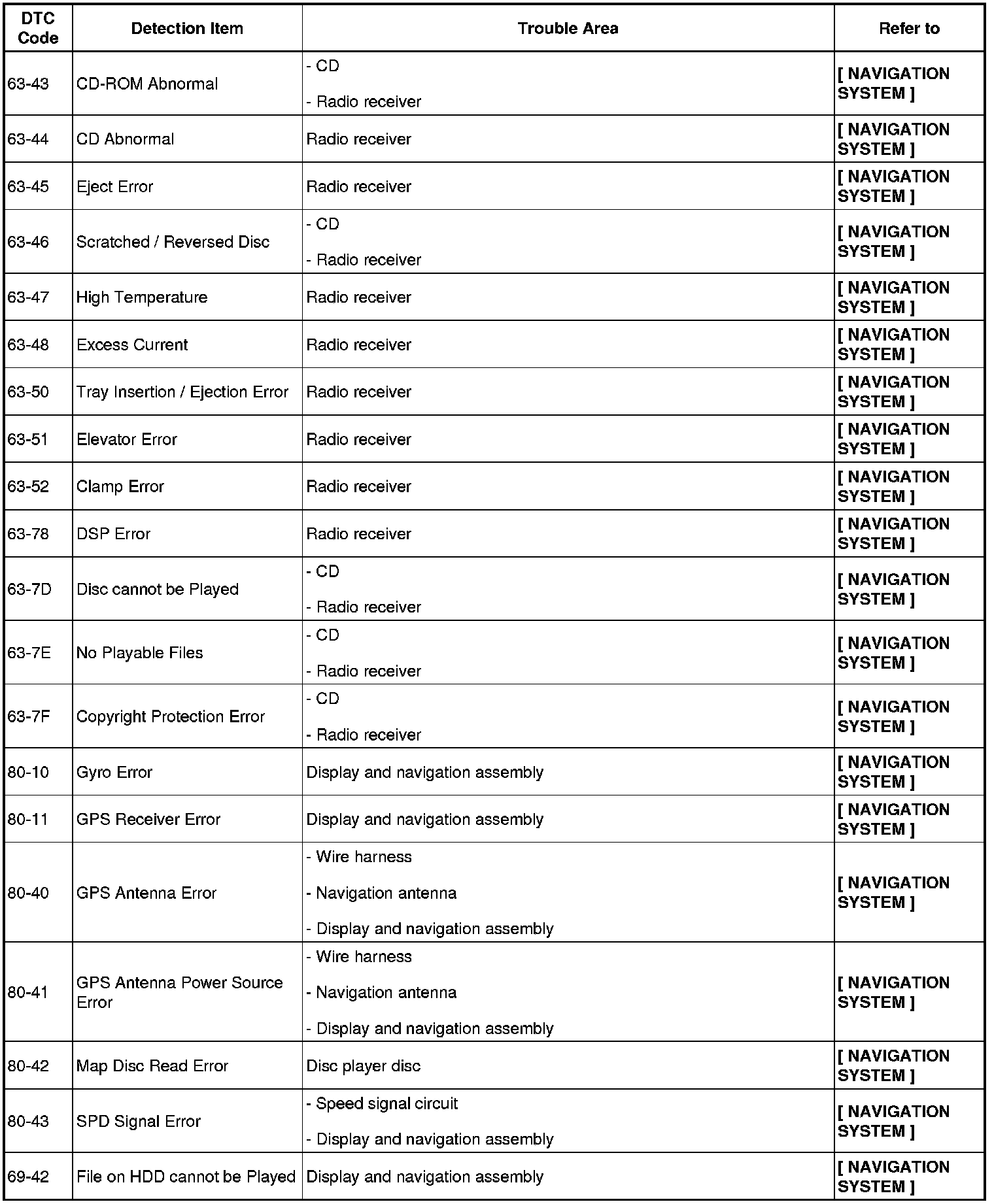

63-43 - 63-78, 63-7D - 63-7F, 80-10 - 80-43, 69-42:

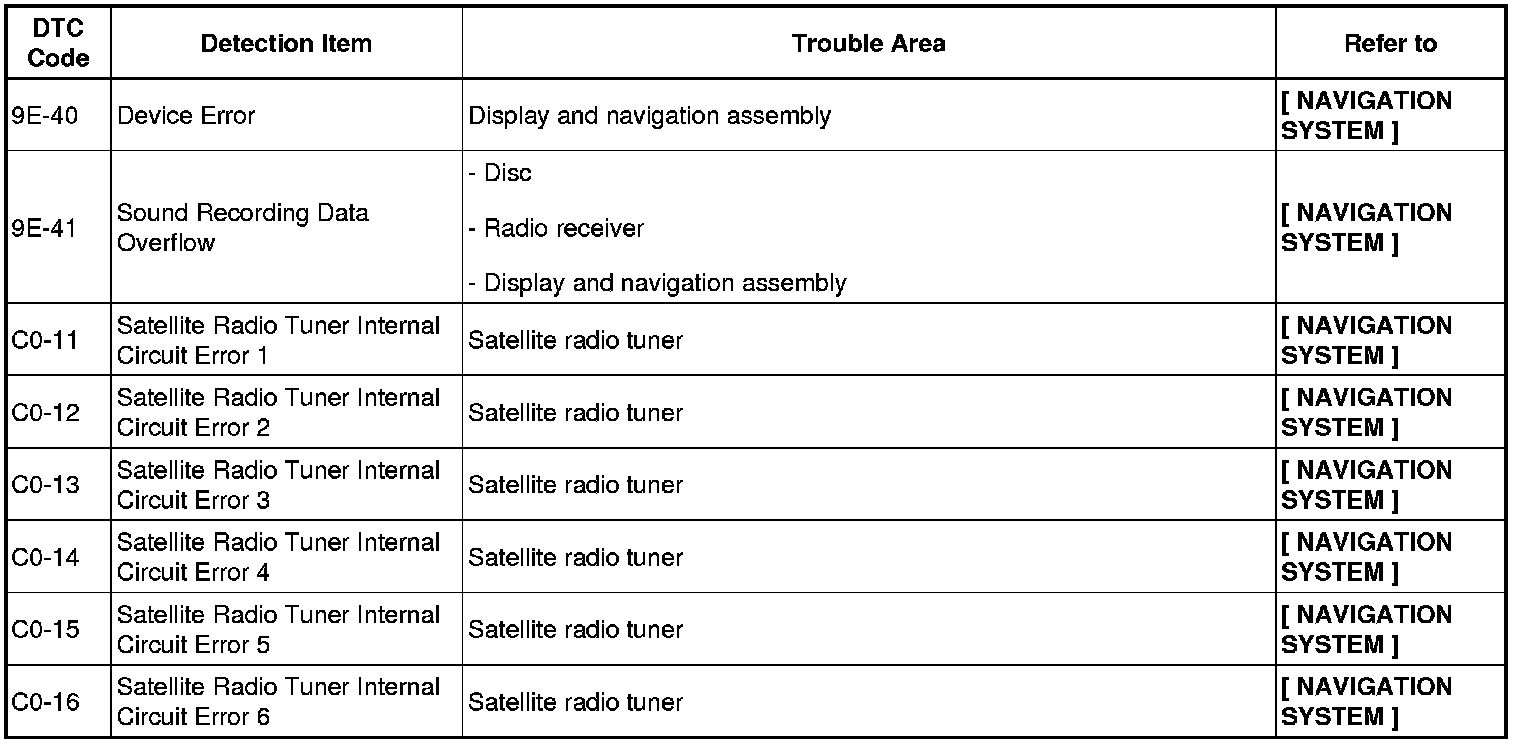

9E-40 - 9E-41, C0-11 - C0-16:
