Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Navigation system

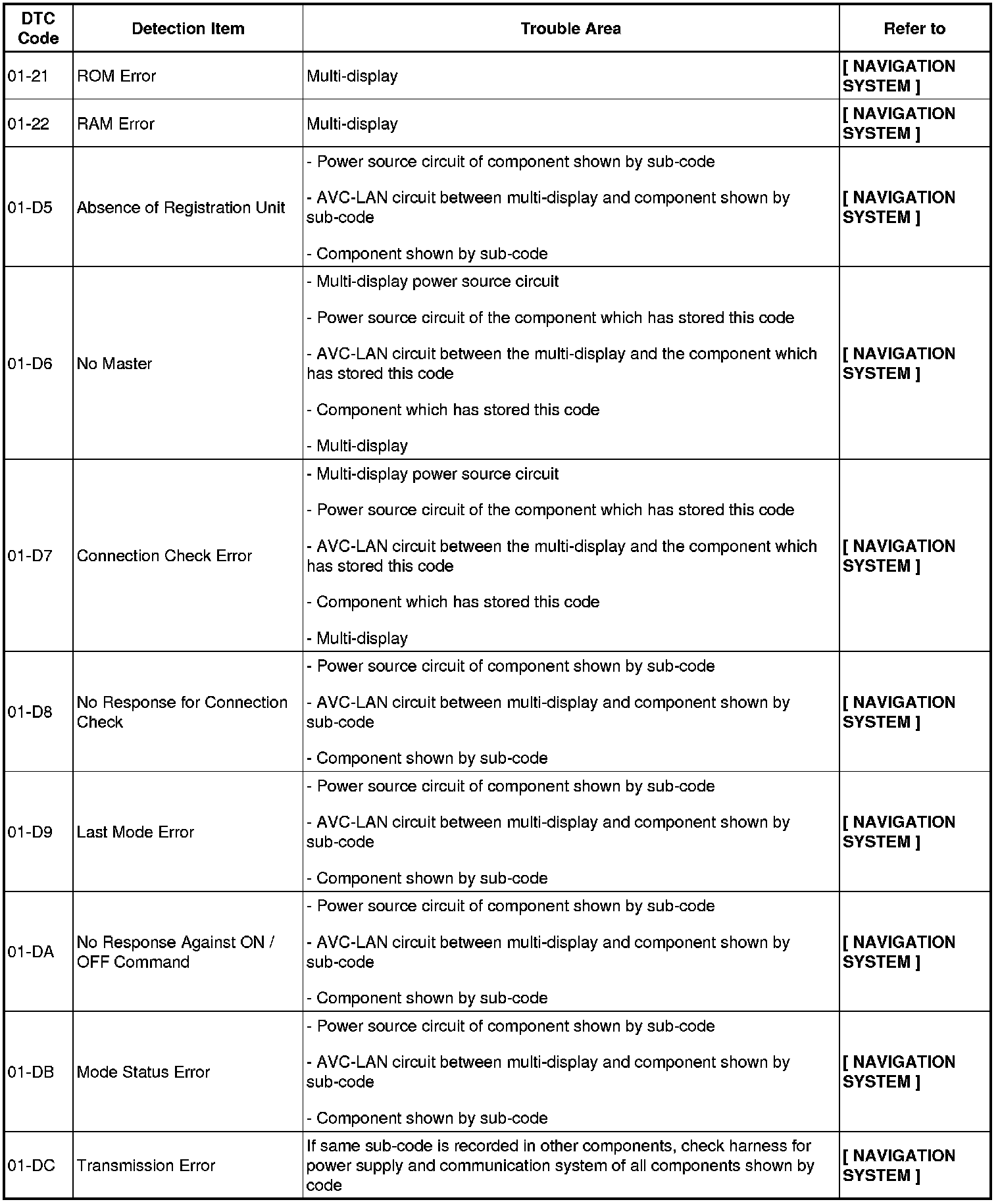

01-21 - 01-22, 01-D5 - 01-D9, 01-DA - 01-DC:

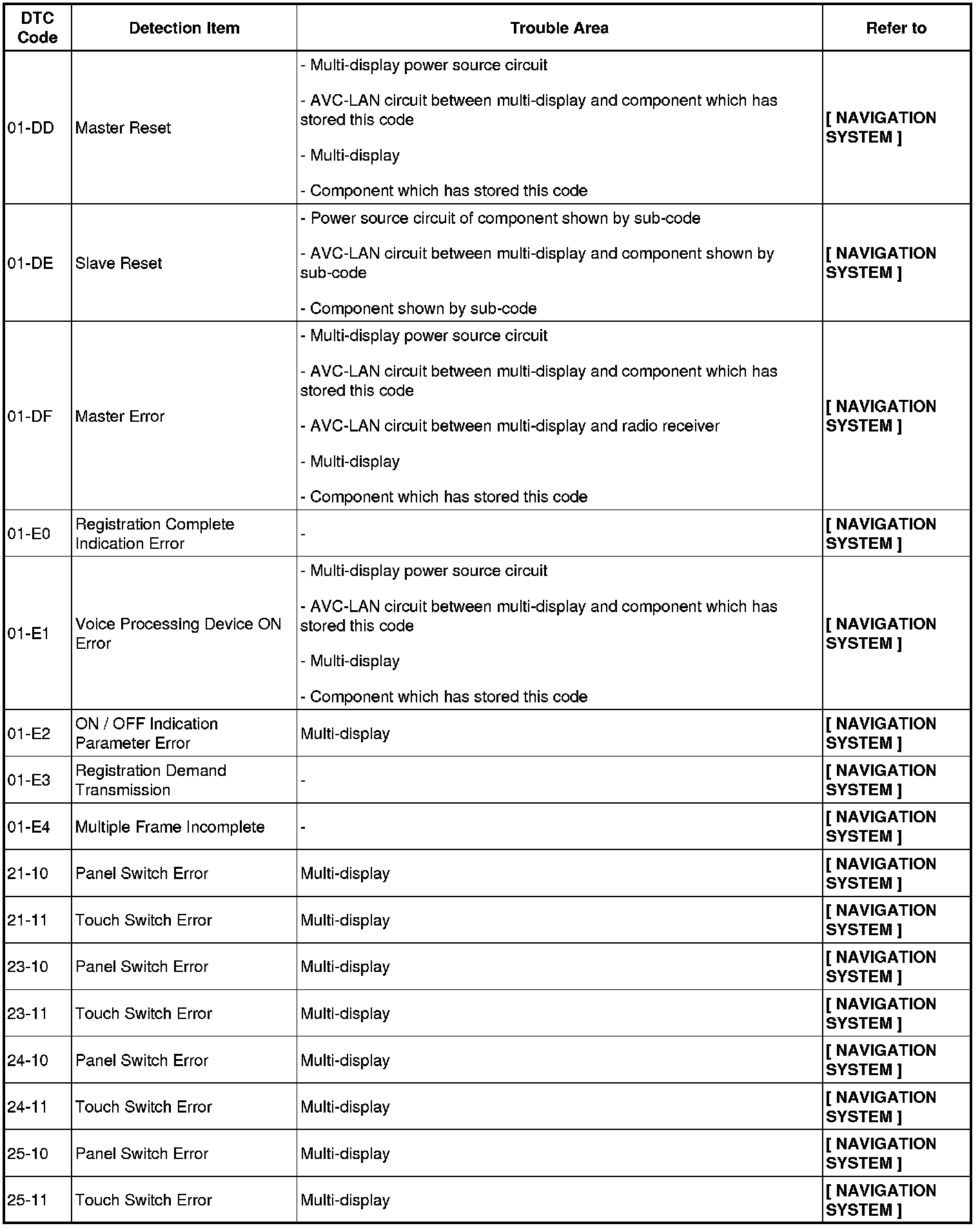

01-DD - 01-DF, 01-E0 - 01-E4, 21-10 - 25-11:

34-10 - 45-78, 45-7D - 45-7E, 57-47:

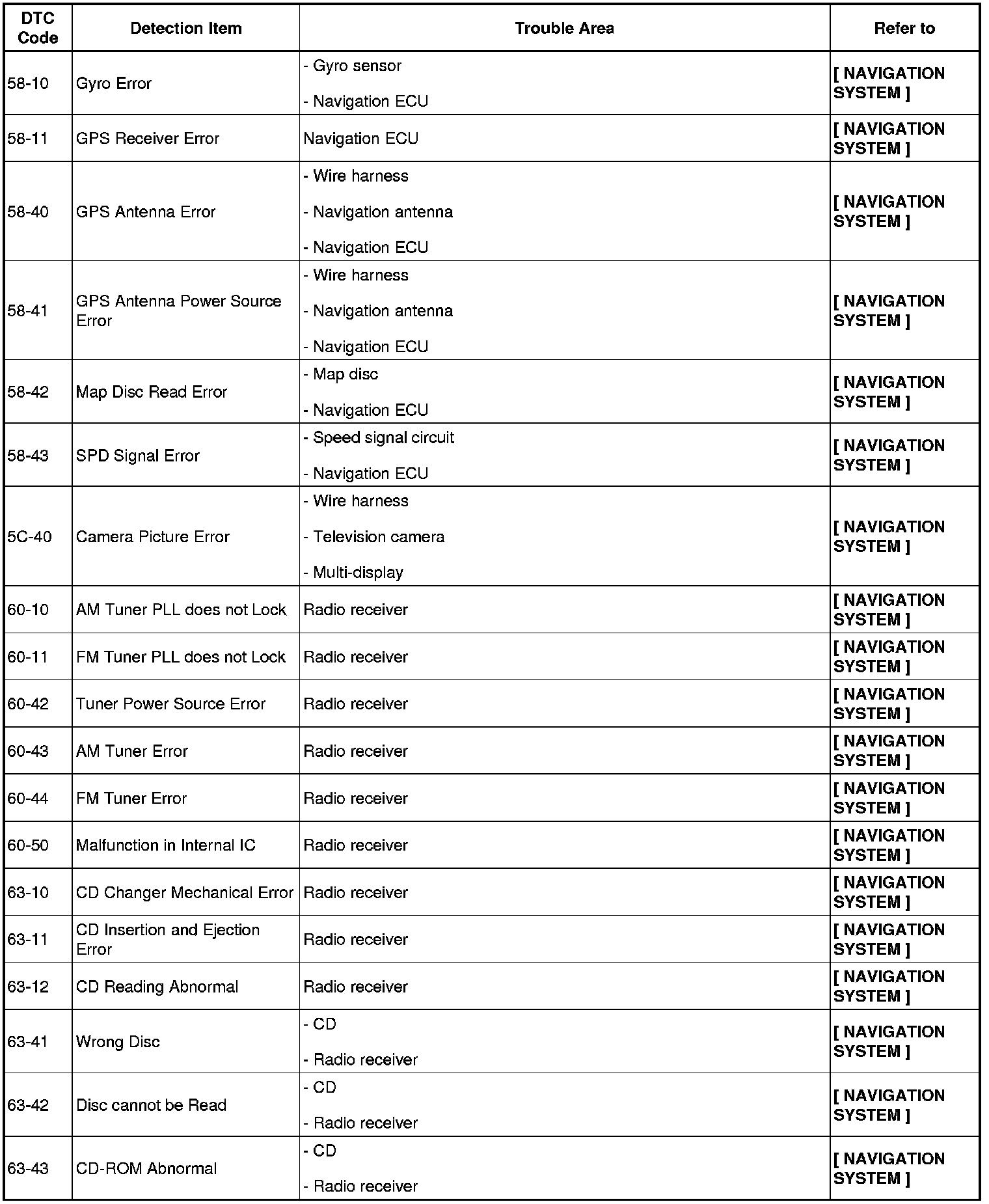

58-10 - 58-43, 5C-40, 60-10 - 63-43:

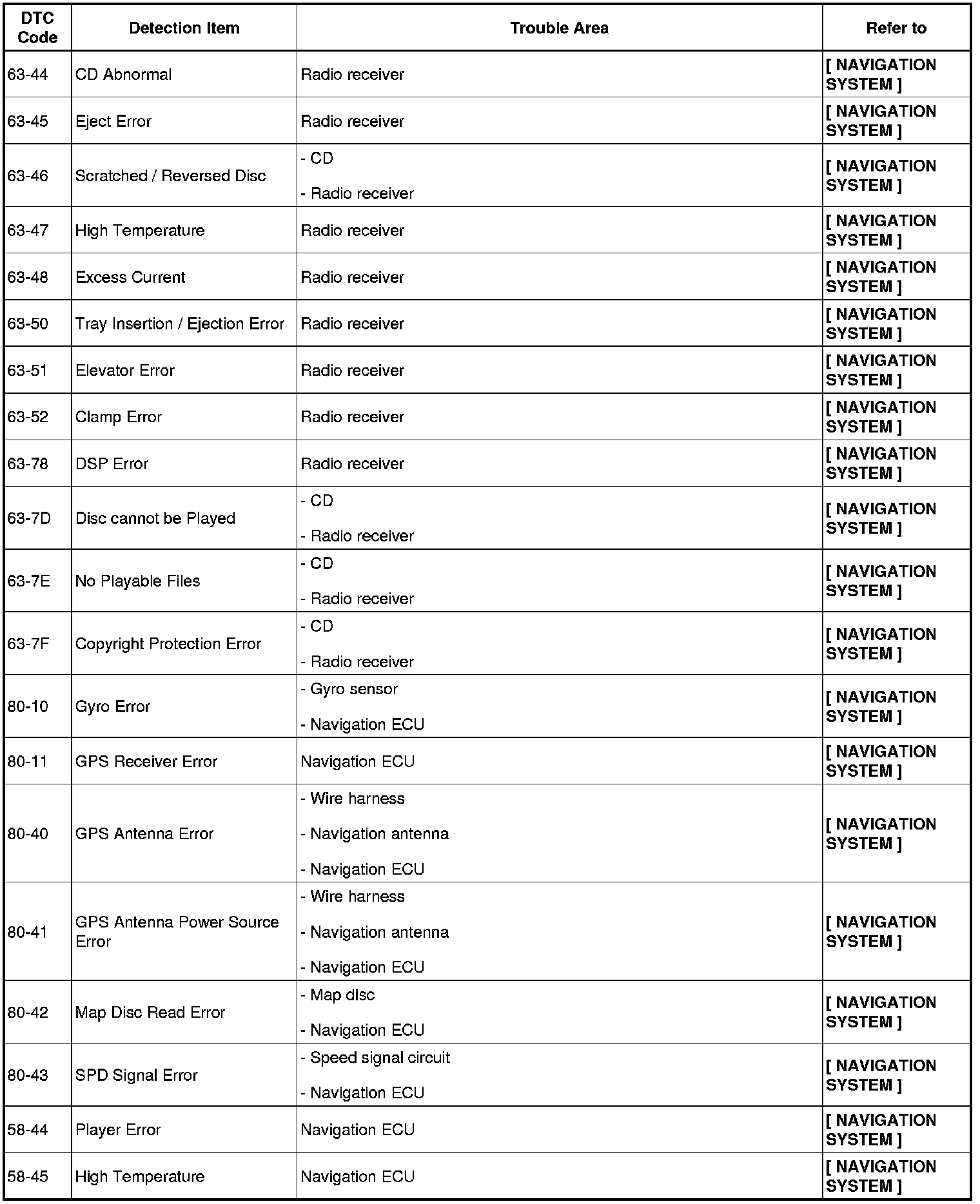

63-44 - 63-78, 63-7D - 63-7F, 80-10 - 80-43, 58-44 - 58-45:

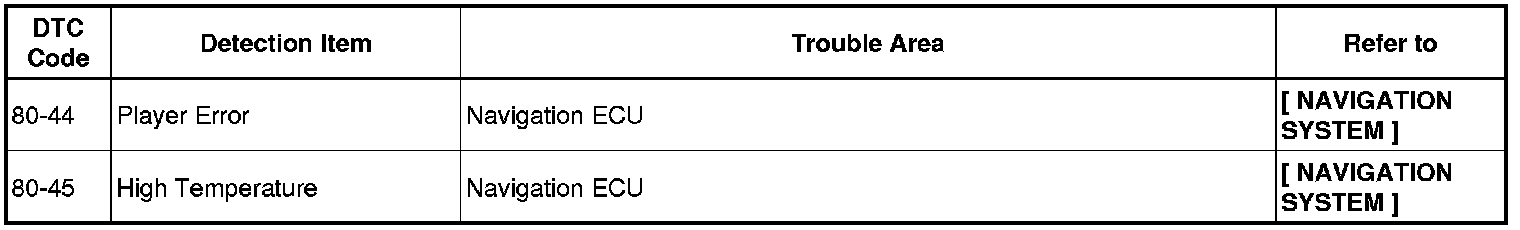

80-44 - 80-45:
