Engine Immobilizer System
ENGINE IMMOBILIZER: ENGINE IMMOBILIZER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
1. CERTIFICATION ECU DTC CHART
HINT: If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table below. Then proceed to the appropriate page.

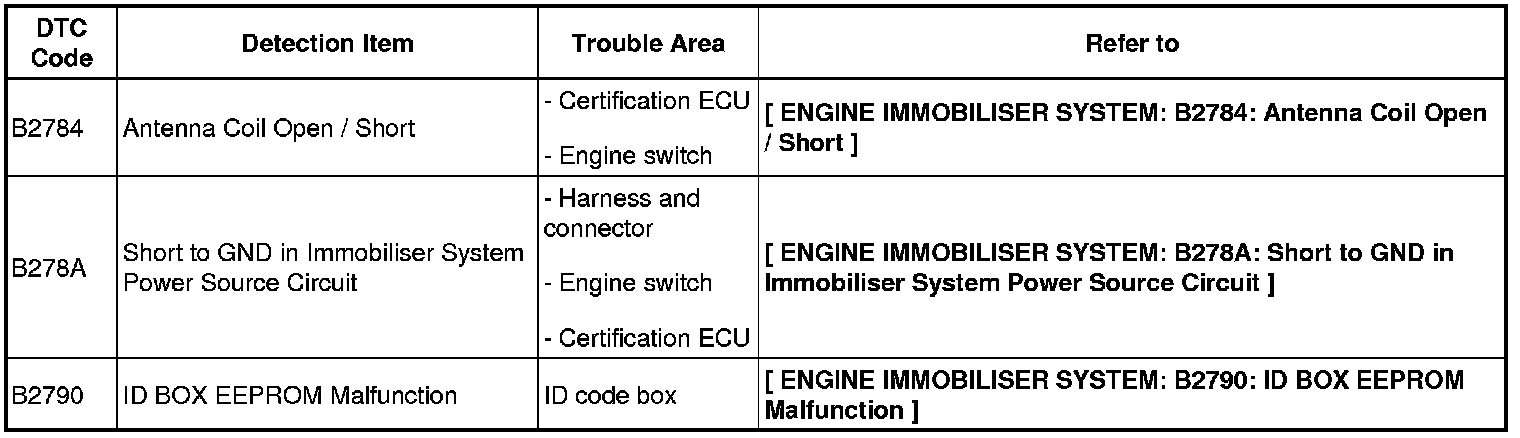

Certification ECU:
B2784, B278A, B2790:
2. ECM DTC CHART
HINT: The DTCs for the engine immobilizer system are specified above. If other codes are output, check the DTC chart for the SFI system.

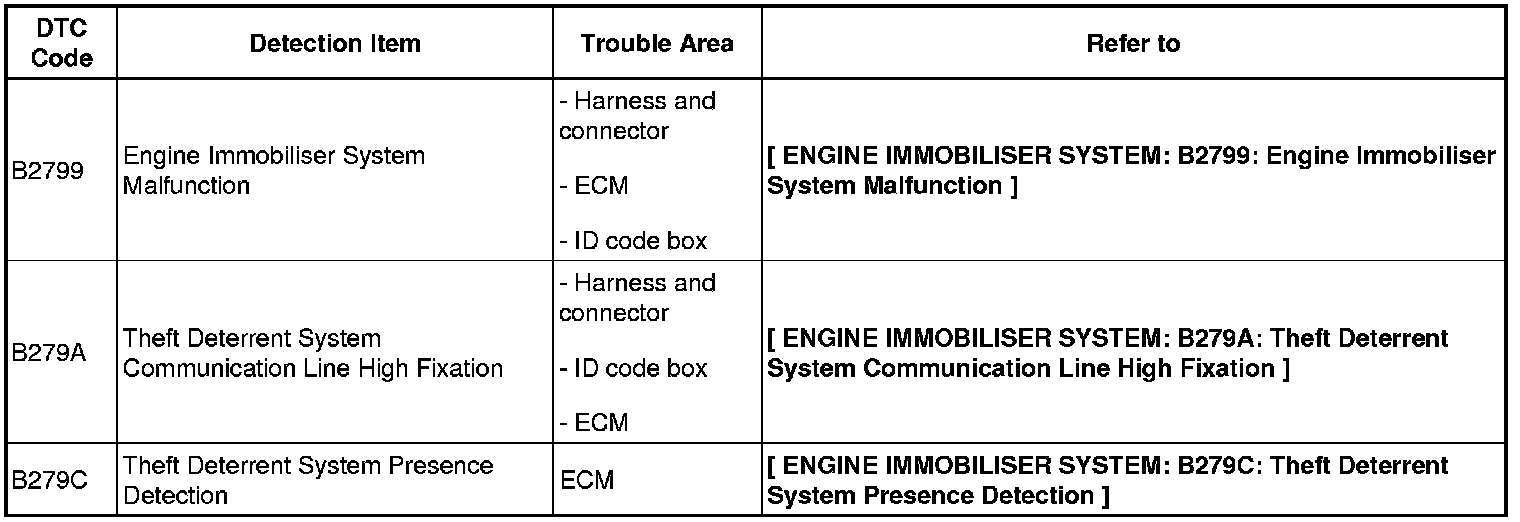

ECM:
