Electric Power Control System
POWER SOURCE / WIRING: ELECTRIC POWER CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

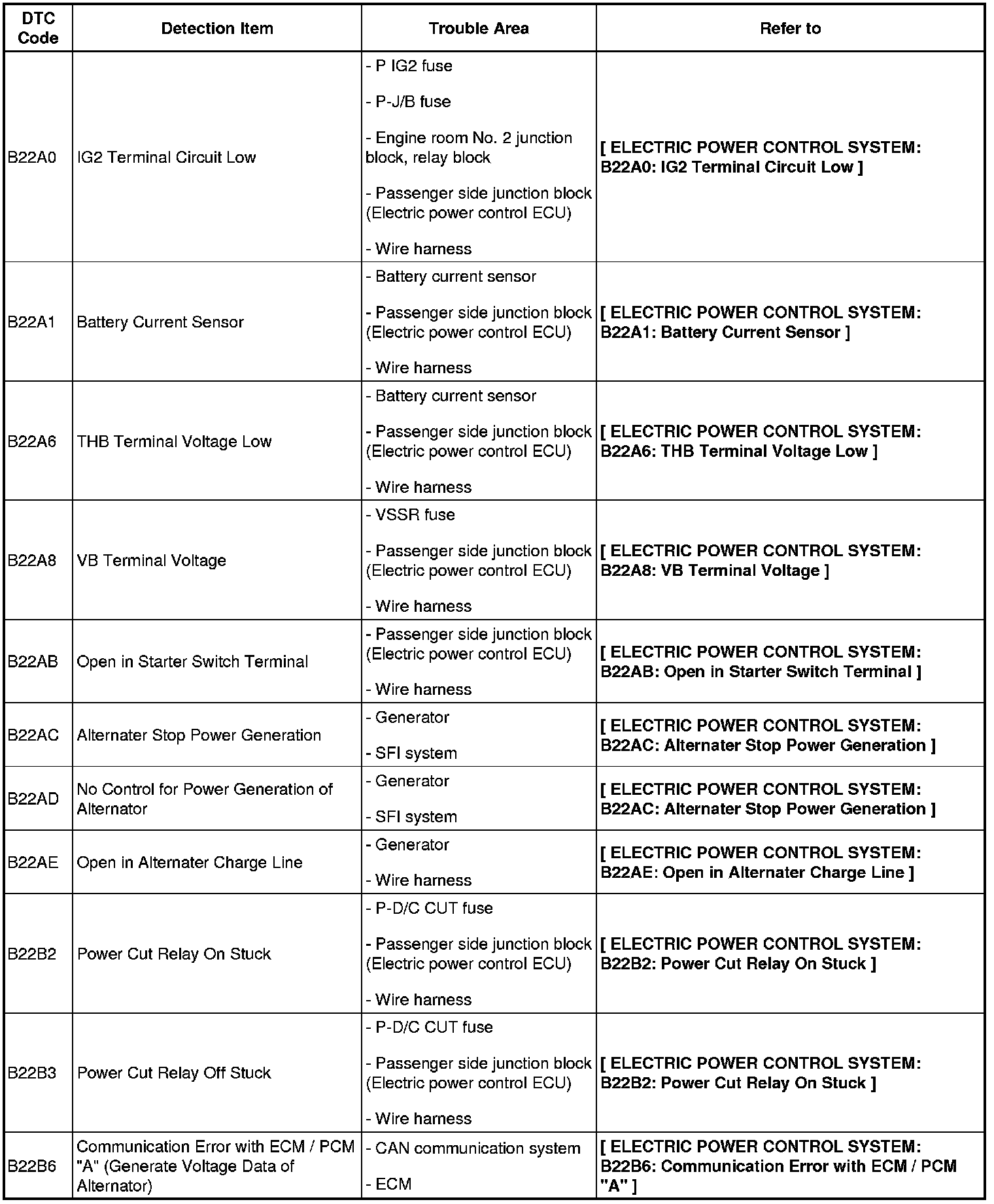

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.
- Inspect the fuses and relays related to this system before inspecting the trouble areas below.
ELECTRIC POWER CONTROL ECU [Electric Power Control]
