CAN Communication System

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

CAN communication system:

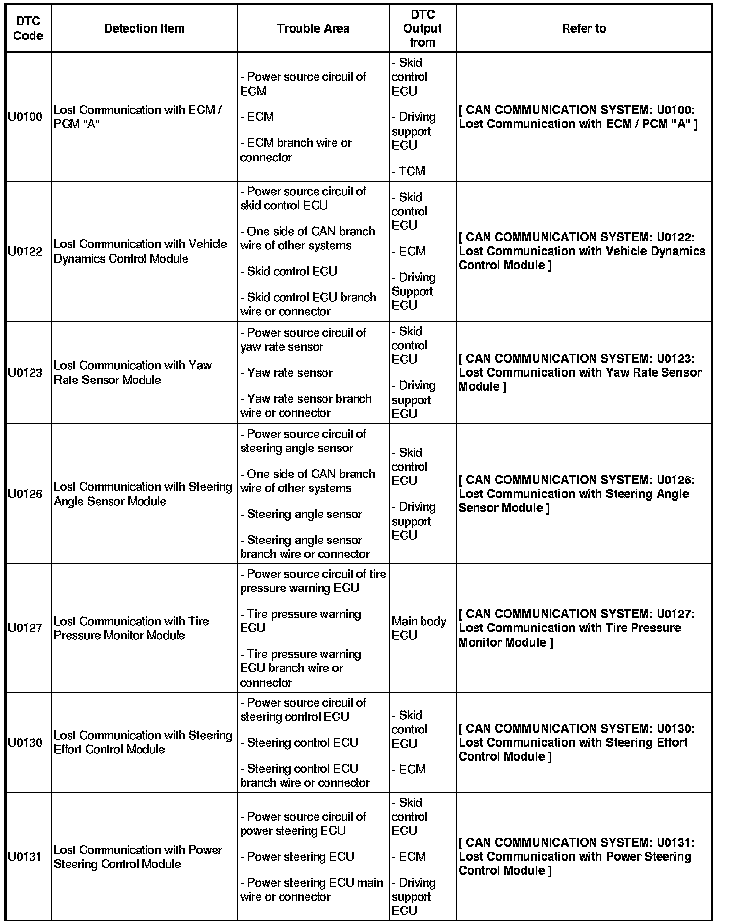

U0100 - U0131:

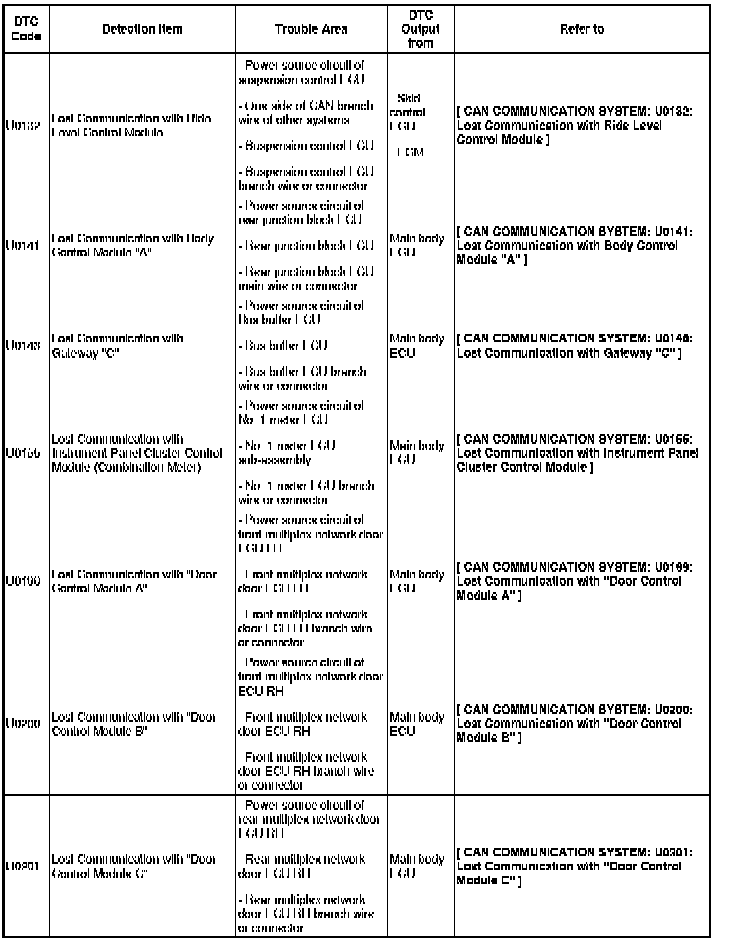

U0132 - U0201:

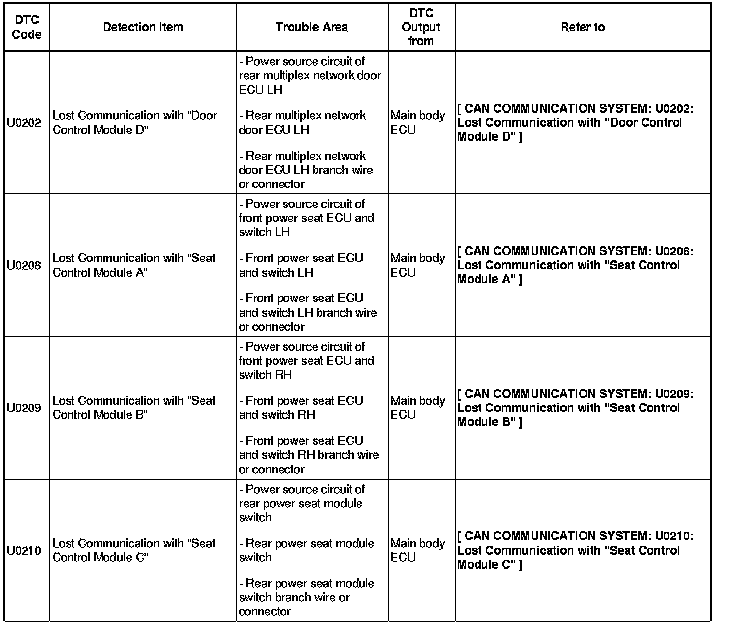

U0202 - U0210:

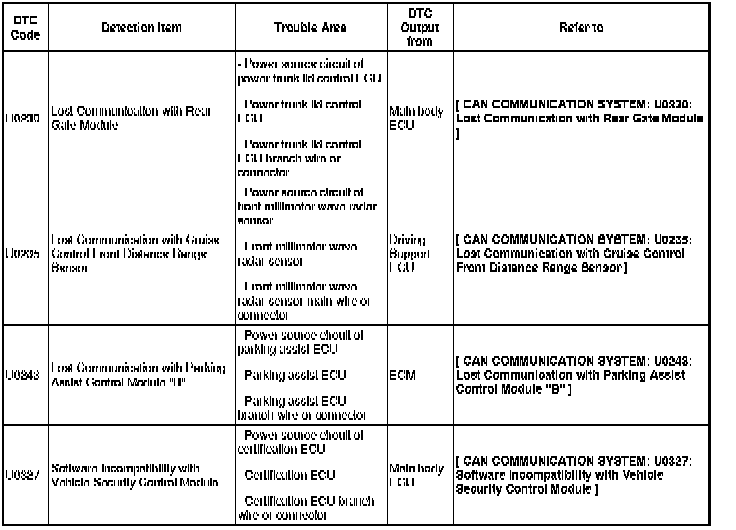

U0230 - U0327:

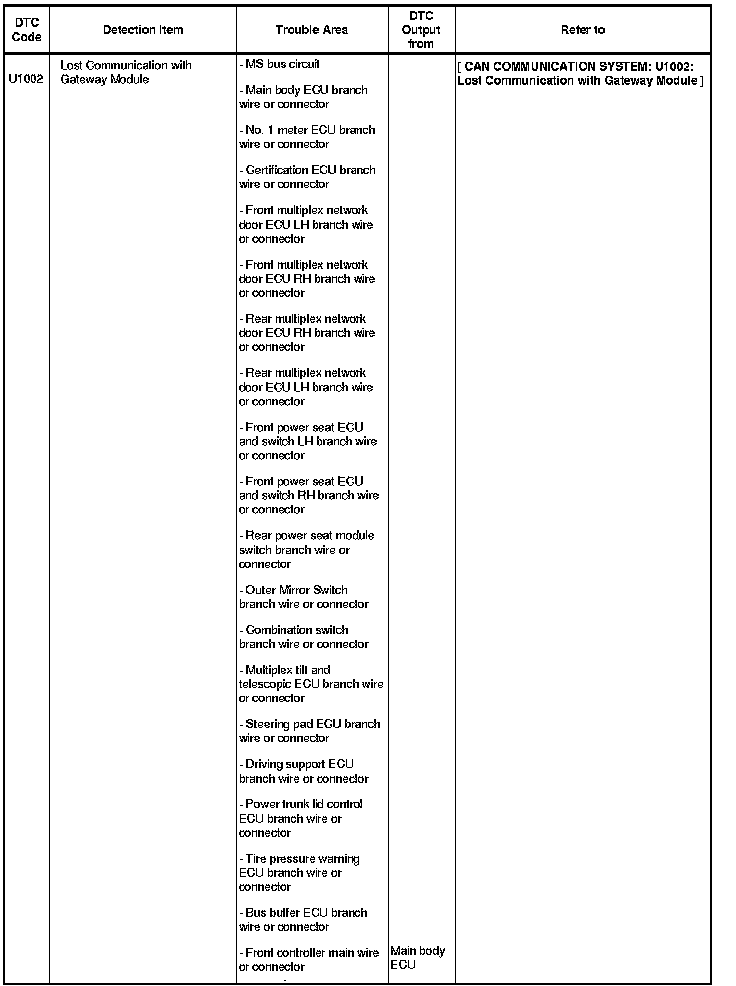

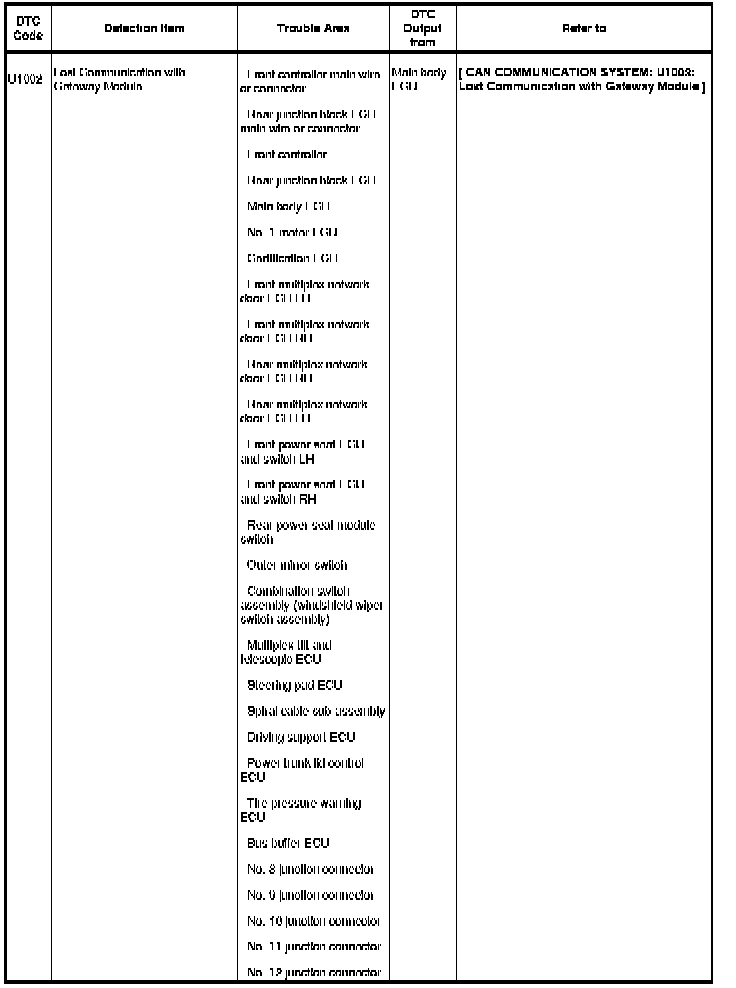

U1002 Part 1:

U1002 Part 2:

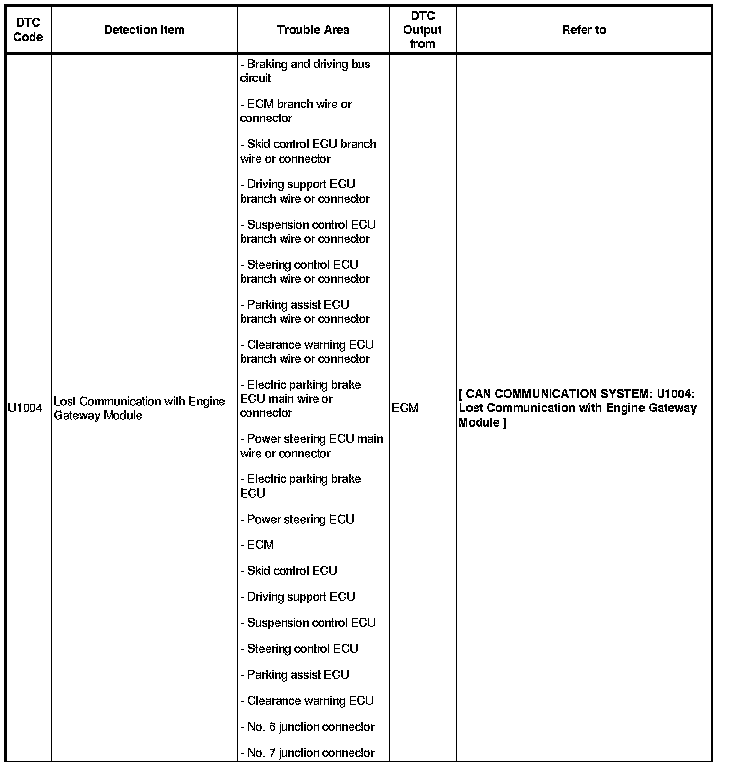

U1004:

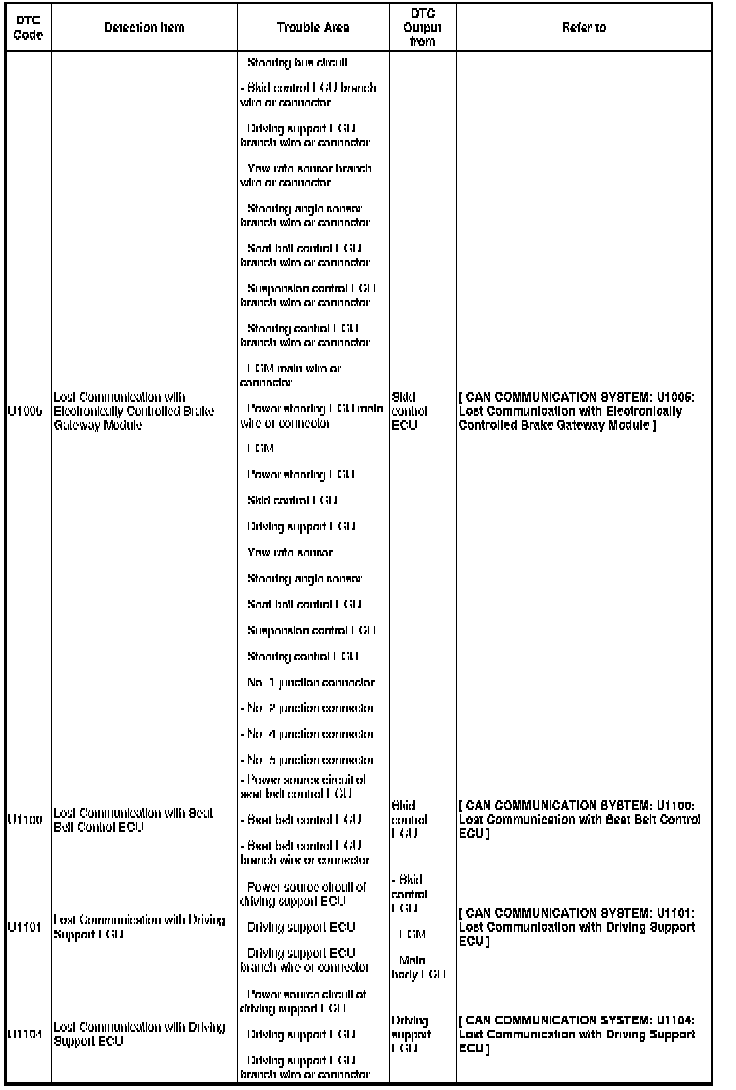

U1005 - U1104:

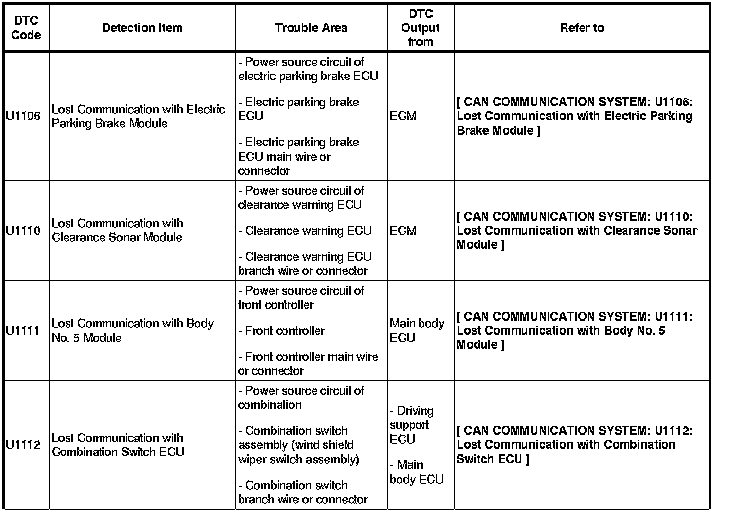

U1106 - U1112:

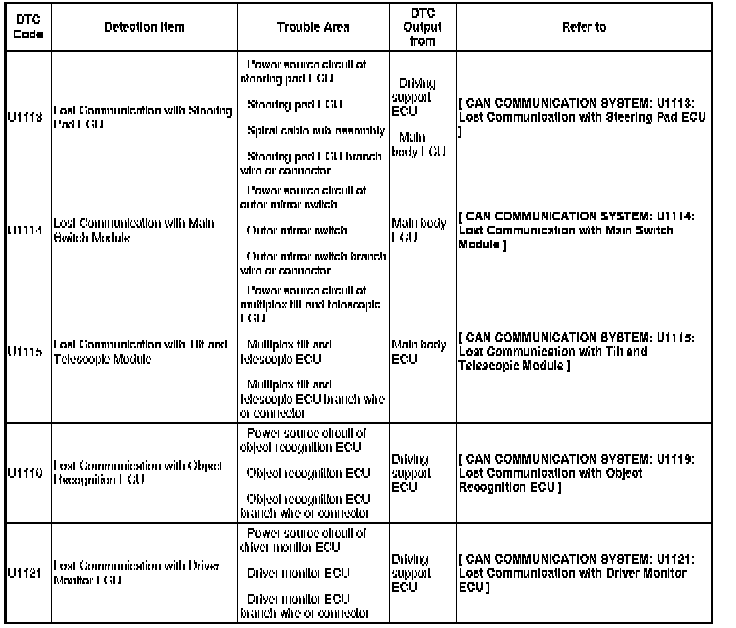

U1113 - U1121:
