Audio and Visual System (w/o Multi-Display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Multi-display): DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Audio and visual system

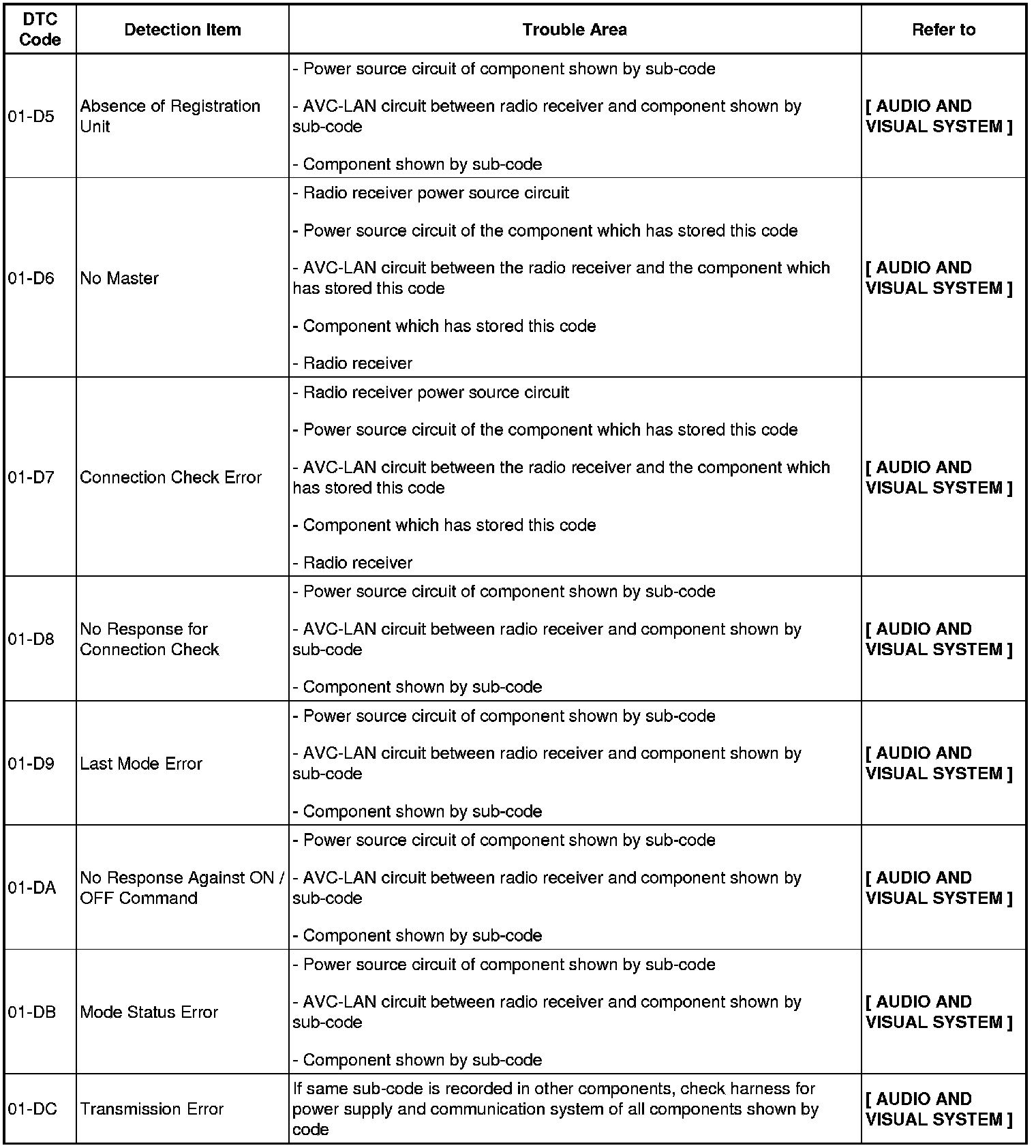

01-D5 - 01-D9, 01-DA - 01-DC:

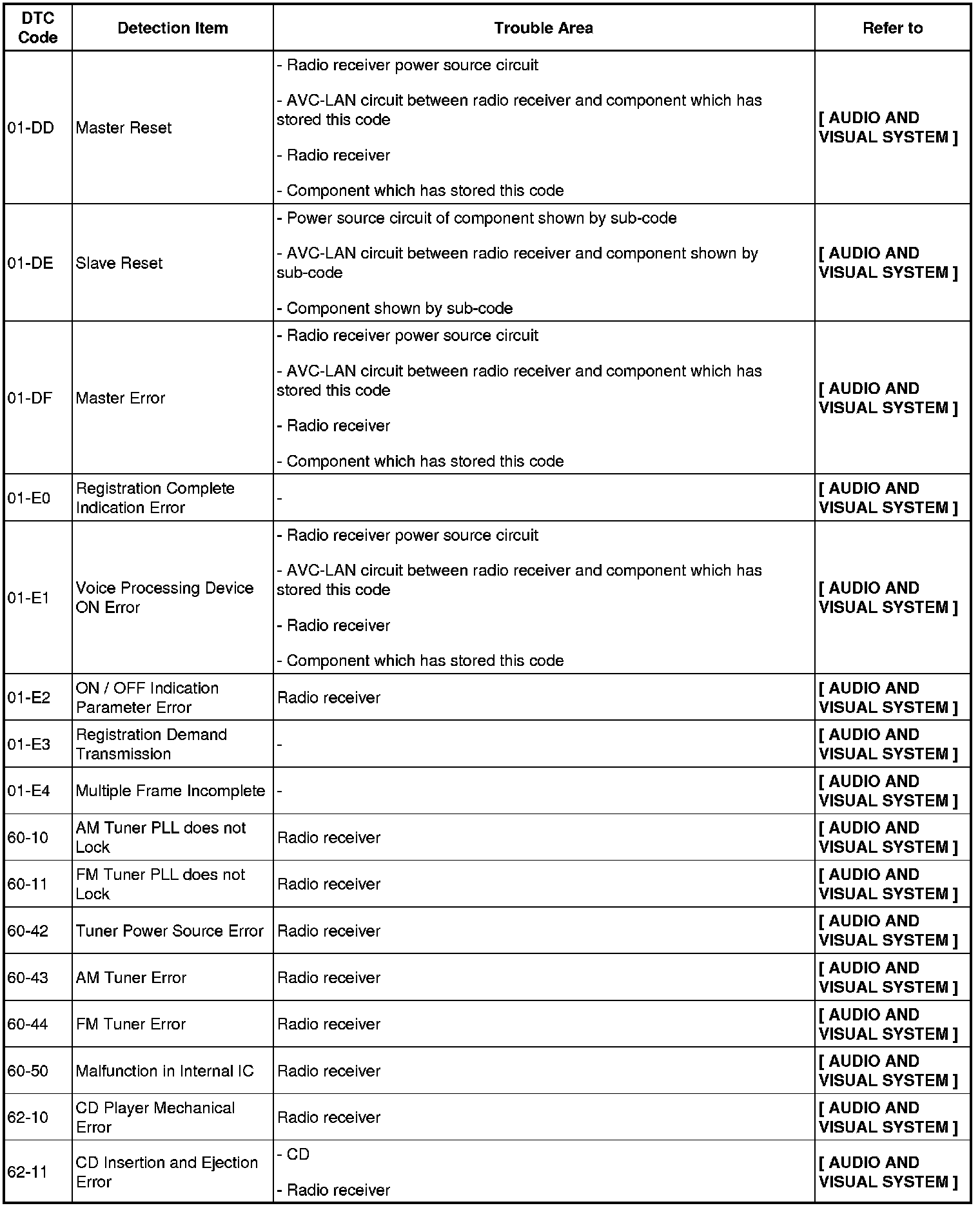

01-DD - 01-DF, 01-E0 - 01-E4, 60-10 - 62-11:

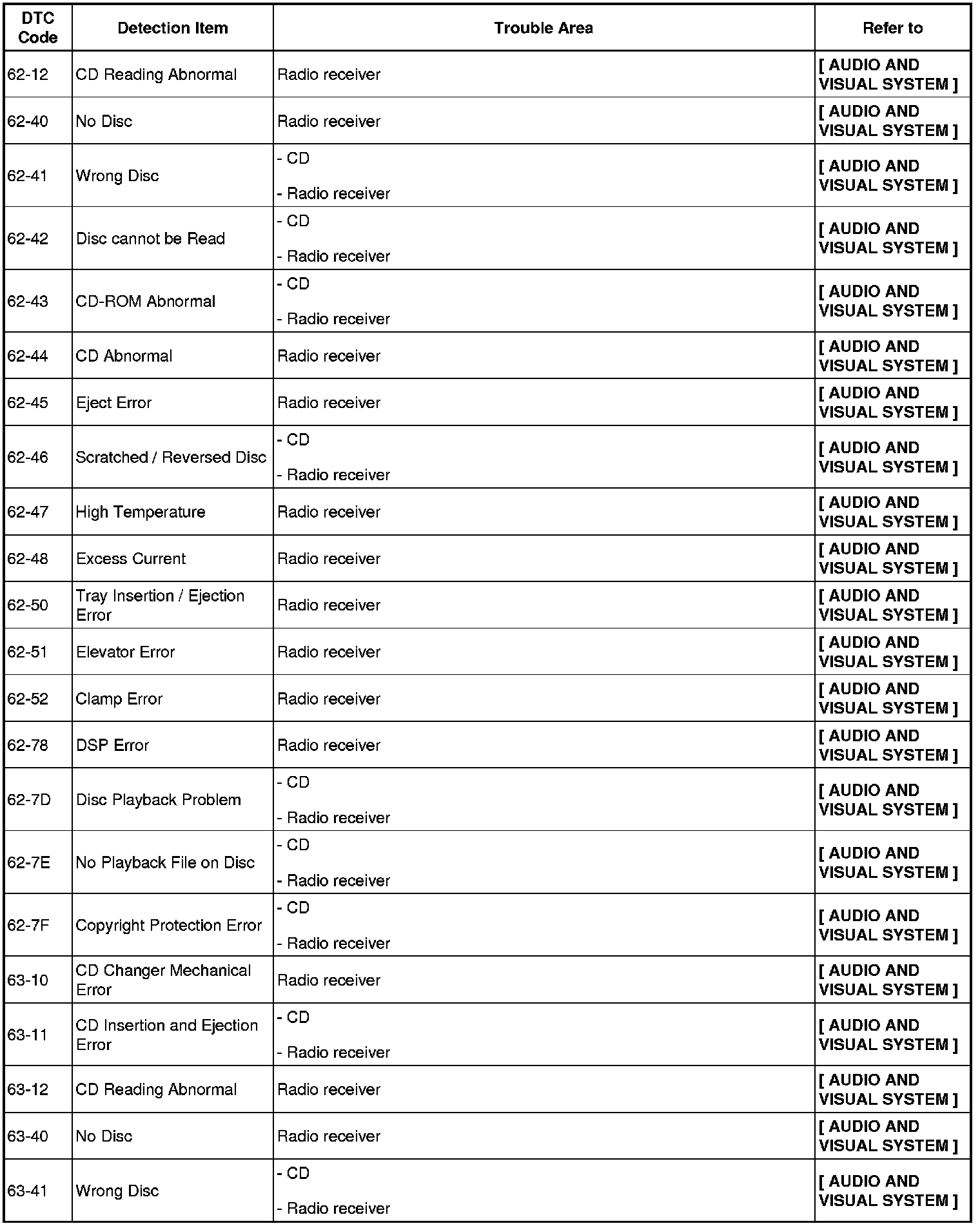

62-12 - 63-41, 62-7D - 62-7F:

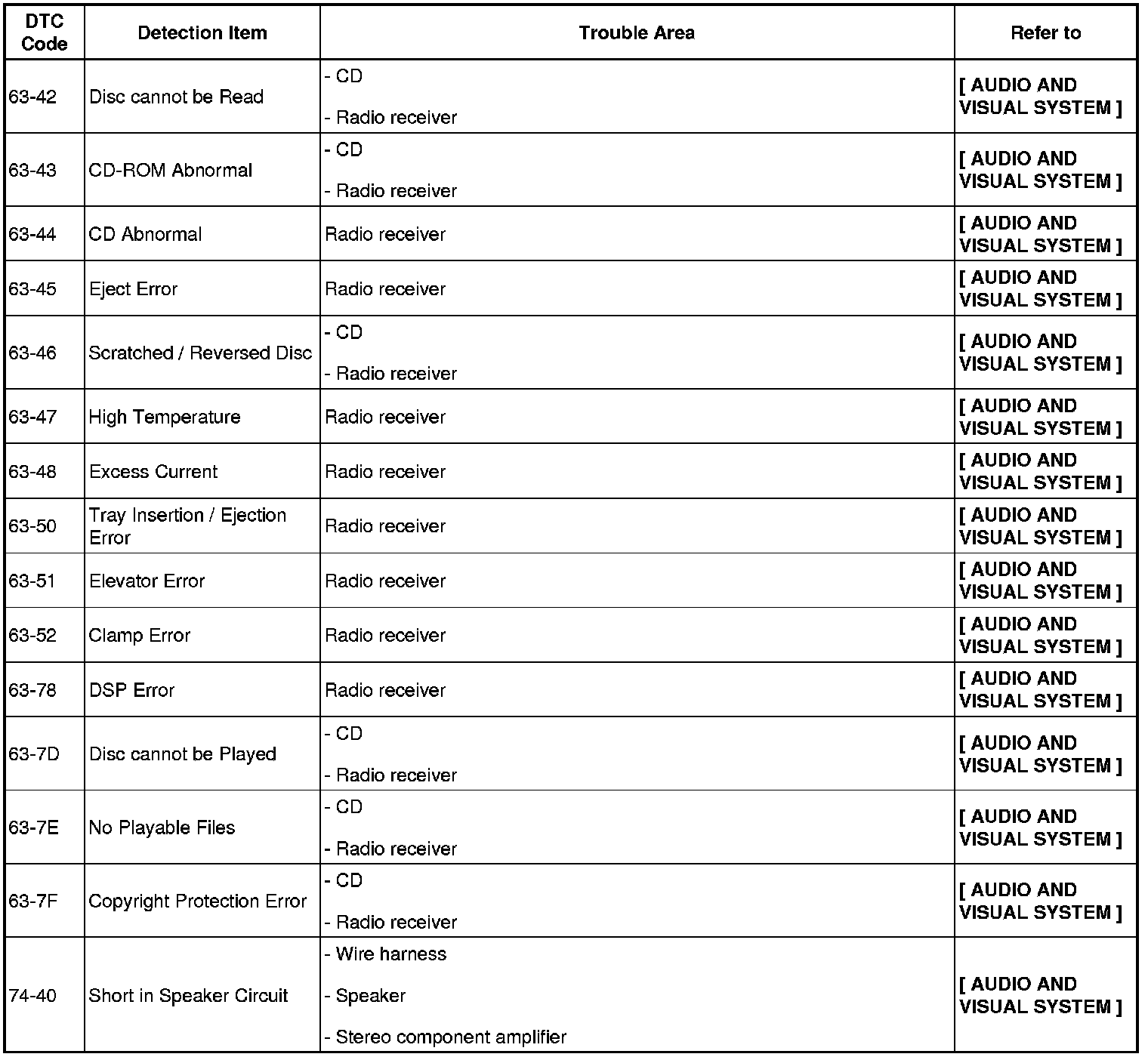

63-42 - 74-40, 63-7D - 63-7F:
