Advanced Parking Guidance System

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that codes. For details of the code, refer to the "See page" in the DTC chart.
Inspect the fuse and relay before inspecting the trouble areas shown in the table below.

Advanced parking guidance system

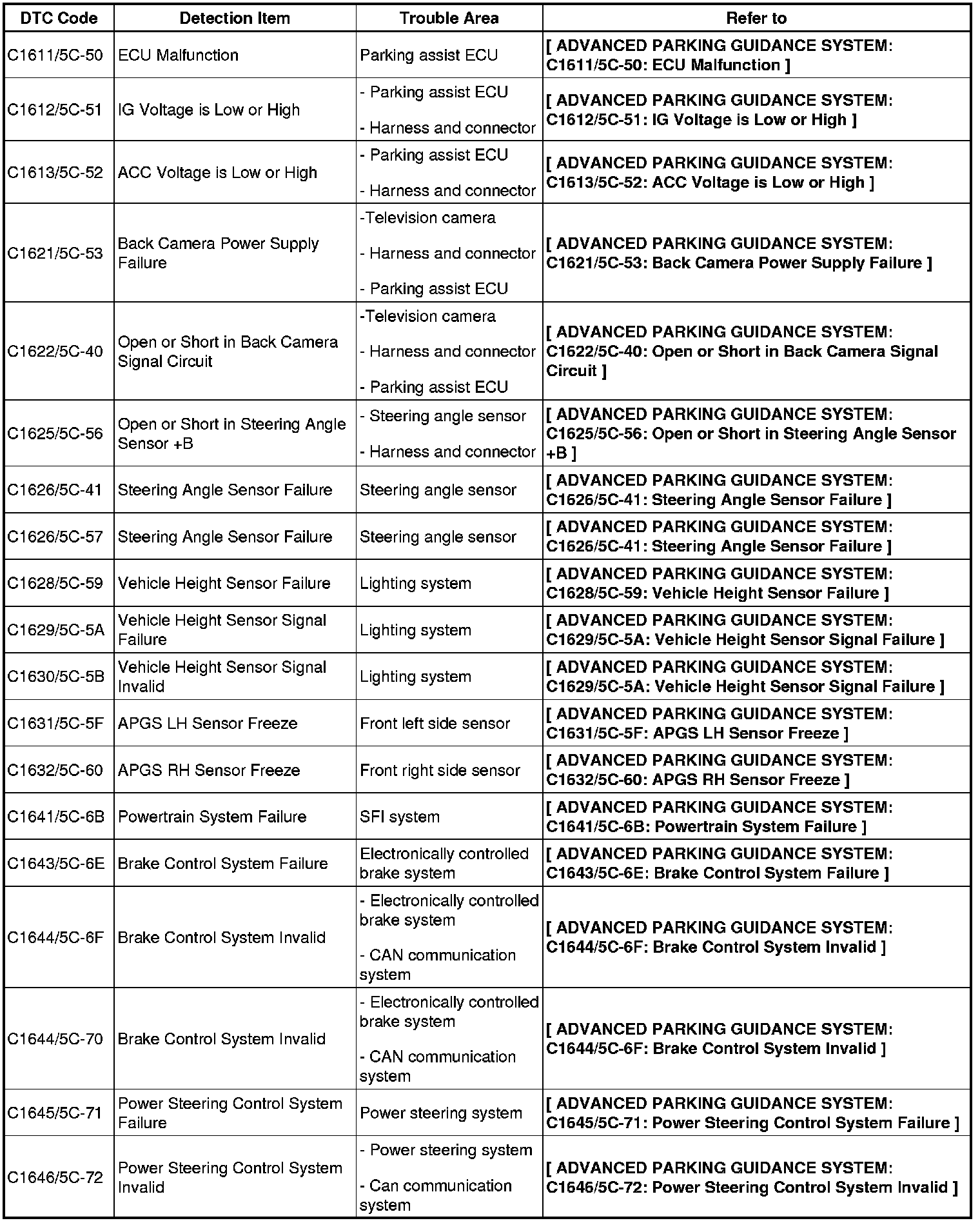

C1611/5C-50 - C1628/5C-59, C1629/5C-5A - C1631/5C-5F, C1632/5C-60, C1641/5C-6B - C1644/5C-6F, C1644/5C-70 - C1646/5C-72:

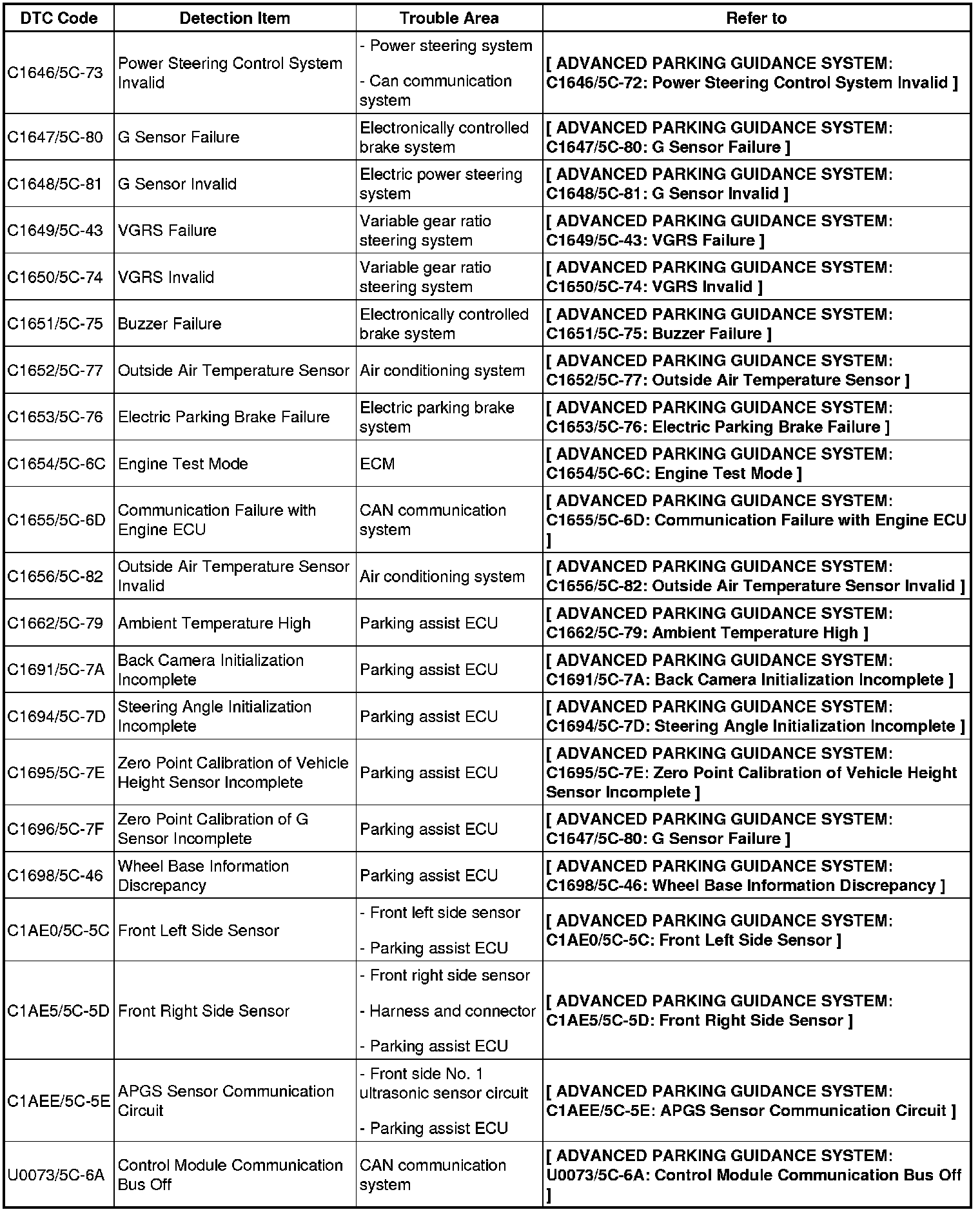

C1646/5C-73 - C1653/5C-76, C1654/5C-6C - C1656/5C-6D, C1656/5C-82 - 1662/5C-79, C1691/5C-7A - C1696/5C-7F, C1698/5C-46, C1AE0/5C-5C - C1AE5/5C-5D, C1AEE/5C-5E, U0073:

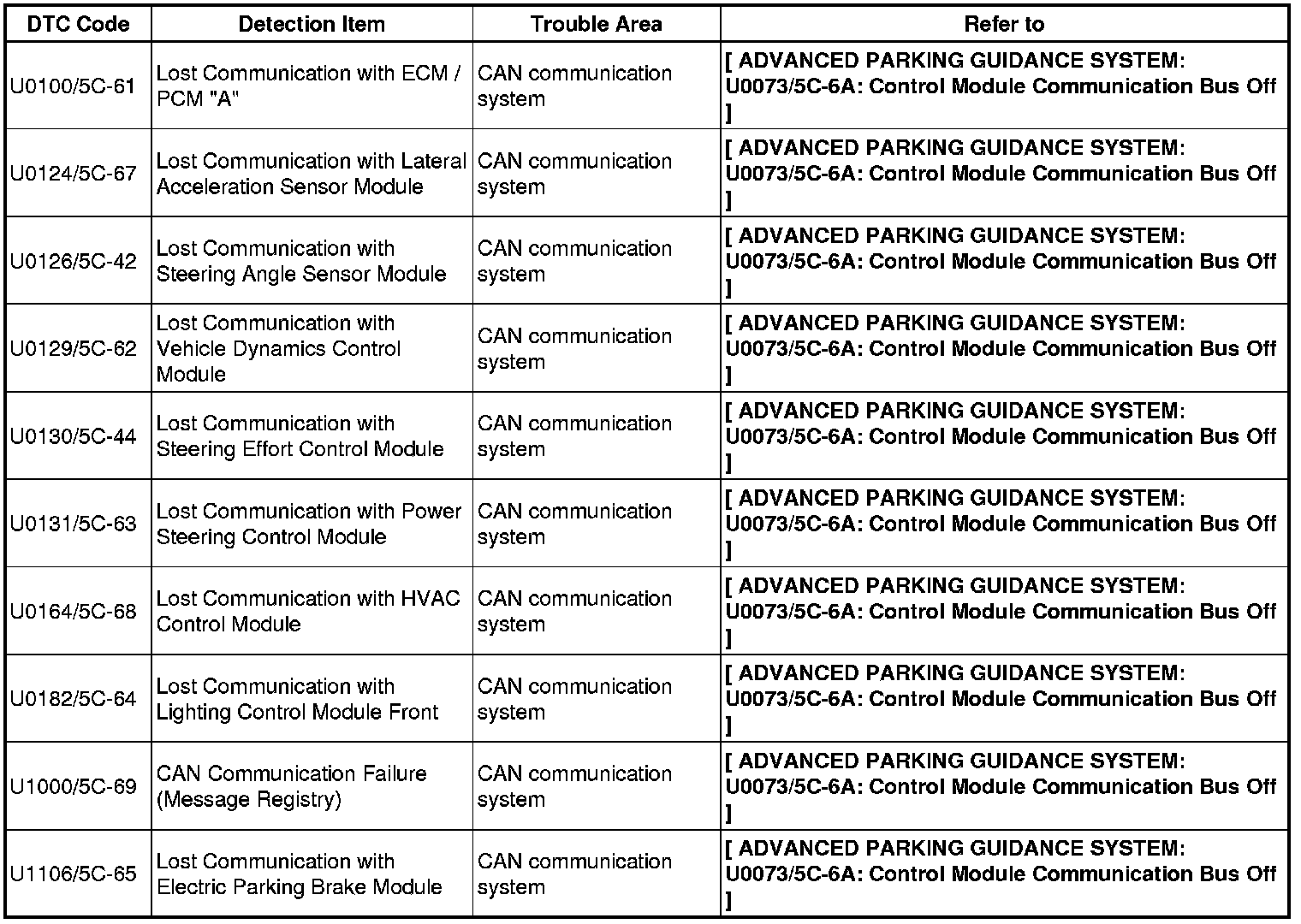

U0100/5C-61 - U1106/5C-65:
