Intake Manifold

Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)

INTAKE AIR SURGE TANK

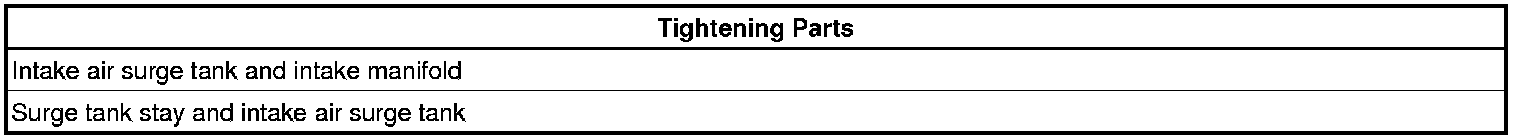

NOTE: Do not apply oil to the bolts as listed below:

Install a new gasket to the intake air surge tank.
Install the intake air surge tank with the 2 nuts.
Torque: 16 Nm (163 kgf-cm, 12 ft-lbf)

Using a 5 mm hexagon socket wrench, install the 6 bolts.
Torque: 18 Nm (184 kgf-cm, 13 ft-lbf)

THROTTLE BODY

Install the throttle body with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
