Installation

2GR-FSE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

INSTALLATION

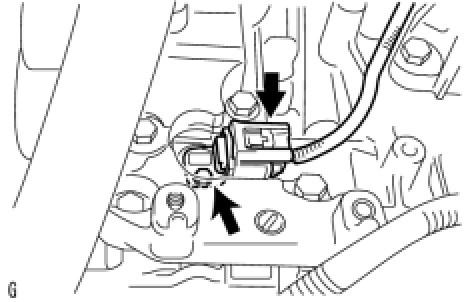

1. INSTALL CRANKSHAFT POSITION SENSOR
(a) Apply a coat of engine oil to an O-ring of the crankshaft position sensor.






(b) Install the crankshaft position sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(c) Connect the crankshaft position sensor connector.
2. INSTALL COMPRESSOR WITH PULLEY ASSEMBLY Installation

3. INSTALL DISCHARGE HOSE SUB-ASSEMBLY Installation

4. INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE Installation

5. INSTALL V-RIBBED BELT Installation

6. INSTALL REAR ENGINE UNDER COVER LH
7. INSTALL ENGINE UNDER COVER
8. INSTALL NO. 1 INLET AIR CLEANER Installation

9. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

10. CHARGE REFRIGERANT Service and Repair

11. WARM UP ENGINE Service and Repair

12. CHECK FOR LEAKAGE OF REFRIGERANT Service and Repair

13. REMOVE COOL AIR INTAKE DUCT SEAL Installation
