Symptom Related Diagnostic Procedures

WIPER AND WASHER SYSTEM:

PROBLEM SYMPTOMS TABLE
HINT:
- Use the table below to help determine the cause of the problem symptom. The potential cases of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in order they are listed. Replace parts as necessary.
- Inspect the fuses and relays related to the system before inspecting the suspected areas below.

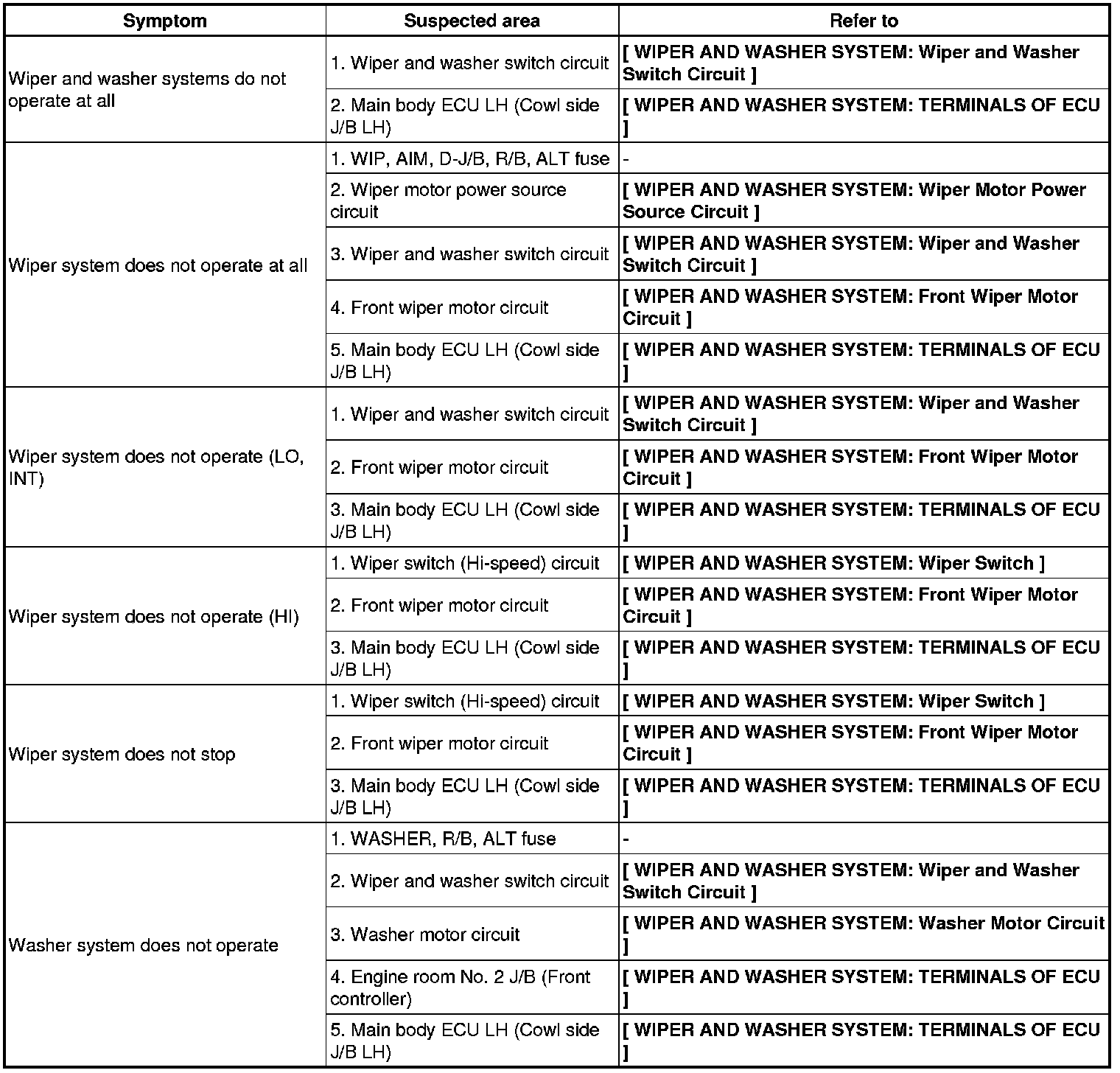

FRONT WIPER AND WASHER SYSTEM

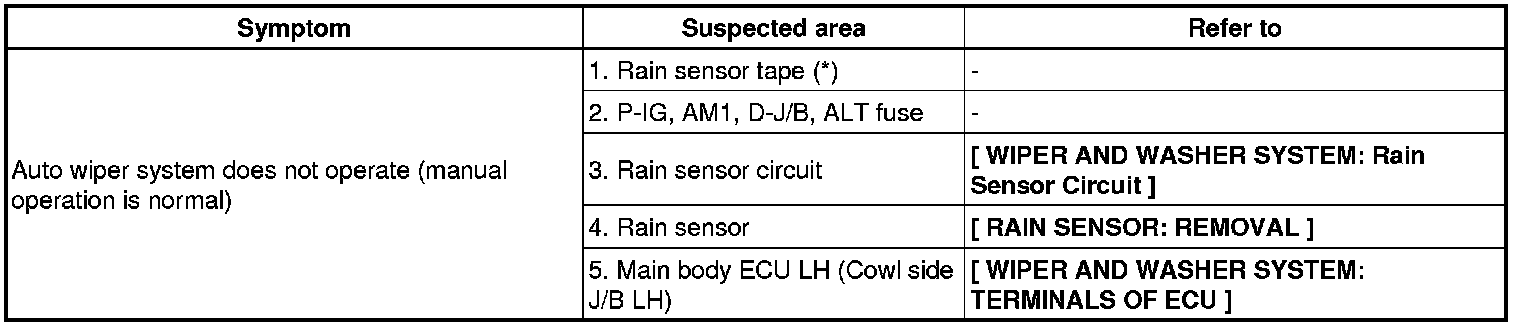

AUTO WIPER SYSTEM

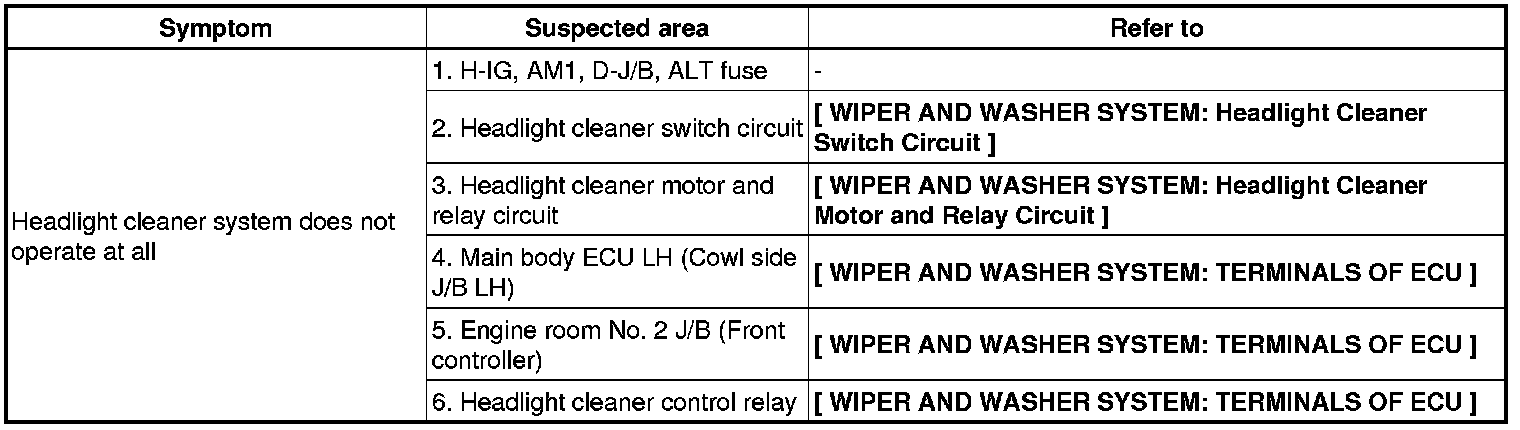

HEADLIGHT CLEANER SYSTEM

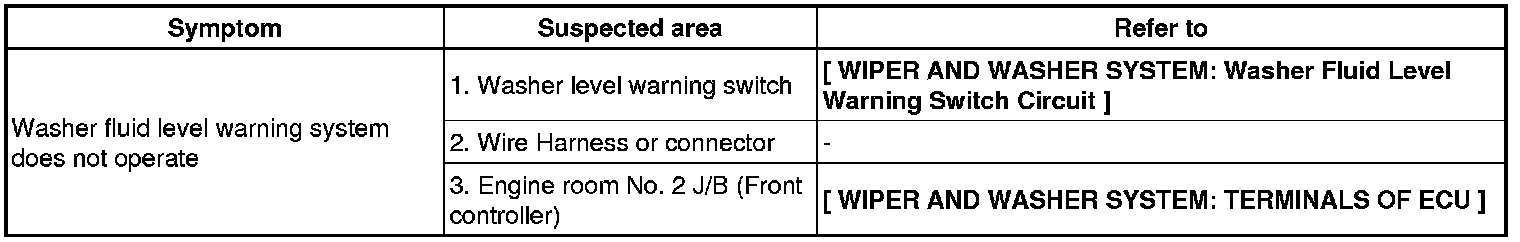

OTHERS
