Window Shade: Description and Operation

INTERIOR: REAR SUNSHADE SYSTEM:

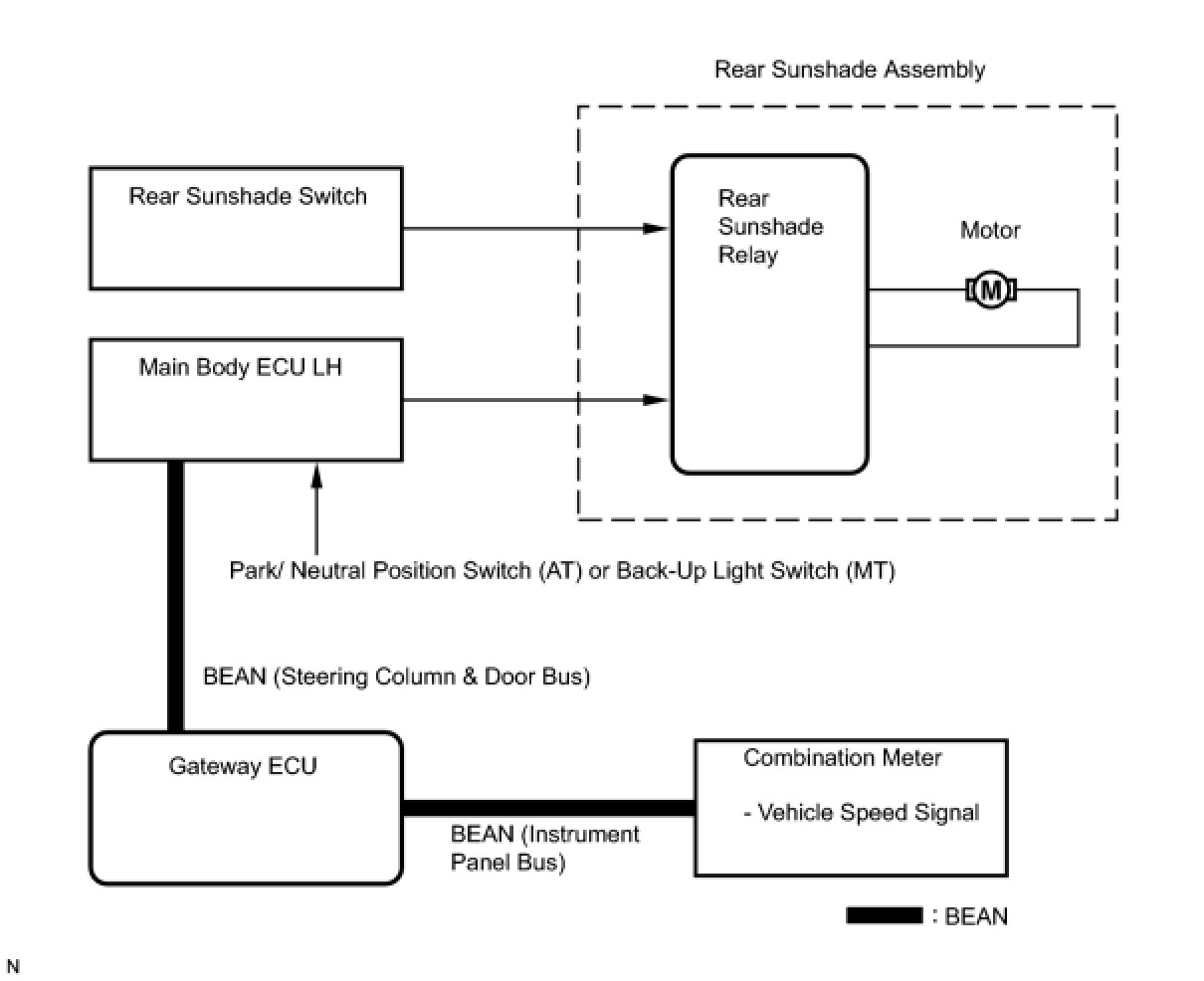

SYSTEM DIAGRAM

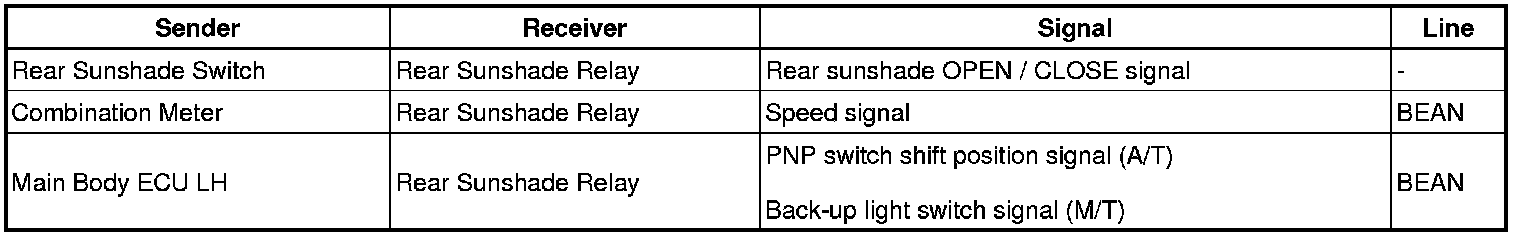

Communication table






SYSTEM DESCRIPTION

1. REAR SUNSHADE SYSTEM DESCRIPTION
(a) The rear sunshade is raised or lowered by operating the rear sunshade switch located in the instrument panel No. 1 safety pad.
(b) When the shift lever is on R, the PNP switch (A/T) or back-up light switch (M/T) sends a reverse-linked signal to the rear sunshade relay, and the rear sunshade lowers.
(c) When the shift lever is moved to D or S (A/T), shift lever is move to any position other than R (M/T) or the vehicle speed is 15 km/h (9.3 mph) or more, the rear sunshade is redeployed.
(d) Using the Techstream, the reverse-linked sunshade lowering function's response time can be customized to one of the following (seconds): 0, 0.7, 0.9, 1.2.
