Window Regulator: Testing and Inspection

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR:

INSPECTION

1. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT RH)

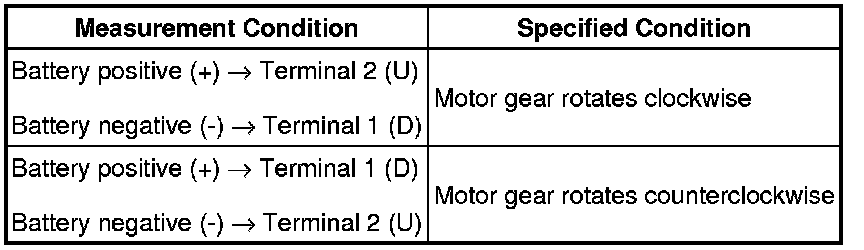

(a) Apply battery voltage to the motor connector according to the table below.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






2. INSPECT POWER WINDOW REGULATOR MOTOR (FRONT LH)

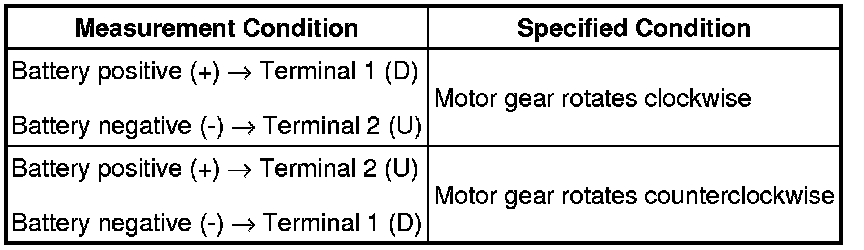

(a) Apply battery voltage to the motor connector according to the table below.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






3. INSPECT POWER WINDOW REGULATOR MOTOR (REAR RH)






(a) Apply battery voltage to the motor connector according to the table below.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






4. INSPECT POWER WINDOW REGULATOR MOTOR (REAR LH)






(a) Apply battery voltage to the motor connector according to the table below.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:
