Fail-Safe Chart

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

1. CHECK POWER WINDOW FAIL-SAFE FUNCTION
HINT: If there is a malfunction in the power window system, some of the power window functions will be disabled.

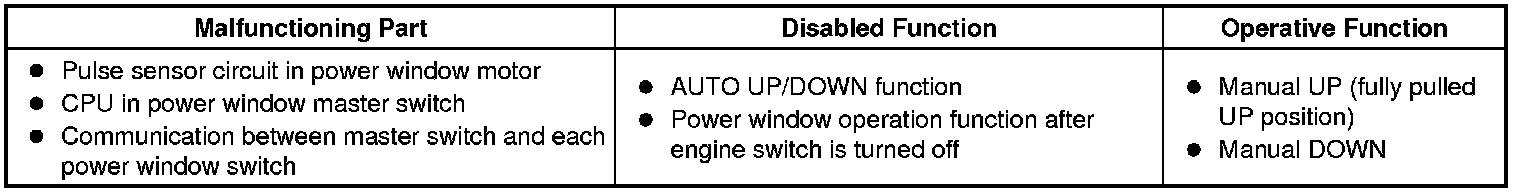

Driver side power window:

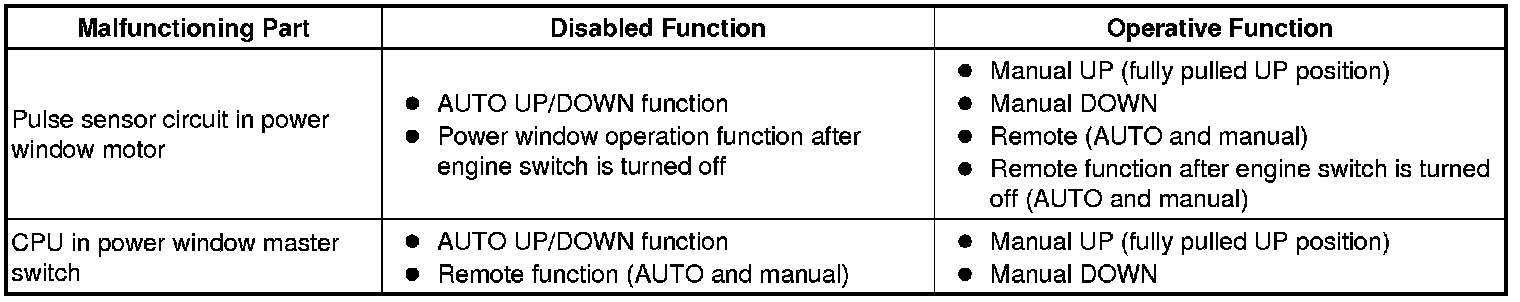

Power windows except driver side power window:
