Rear Power Window Switch RH Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Rear Power Window Switch RH Circuit

Rear Power Window Switch RH Circuit

DESCRIPTION

This circuit supplies power to operate the multiplex network switch.

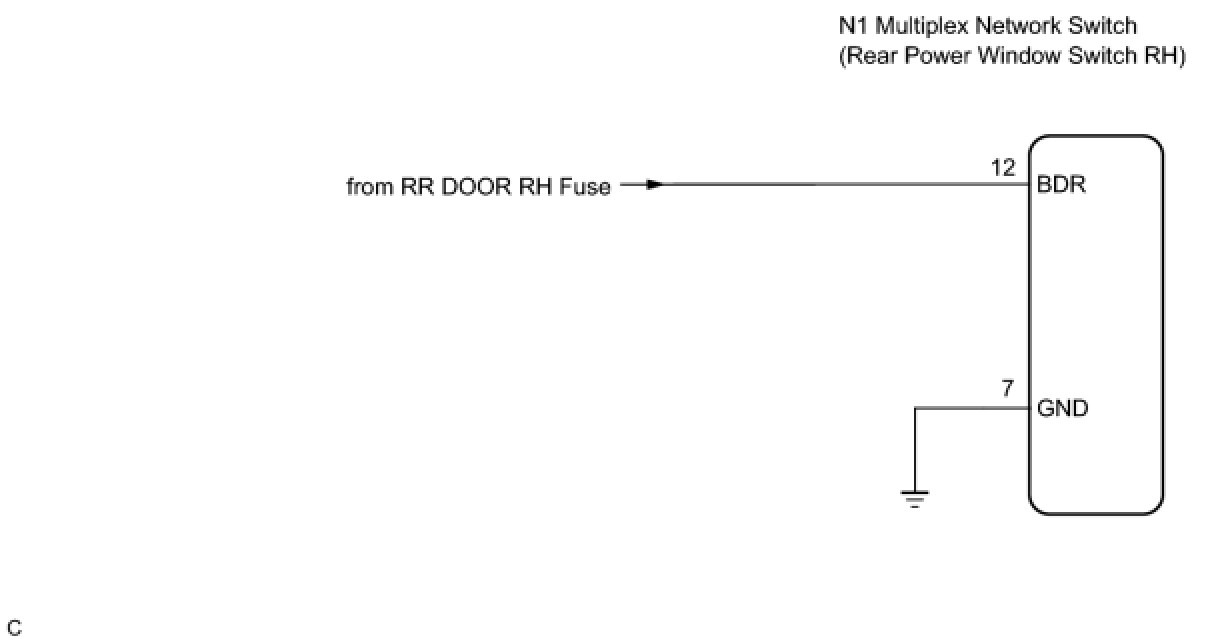

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (MPX SWITCH - BATTERY AND BODY GROUND)

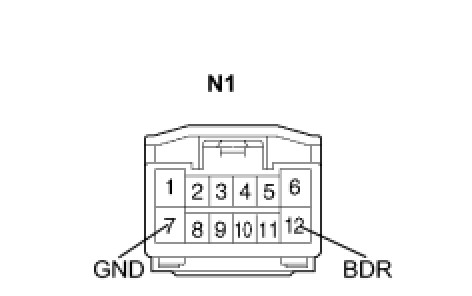

(a) Disconnect the N1 connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
Voltage:






Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
