Rear Power Window Motor RH Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Rear Power Window Motor RH Circuit

Rear Power Window Motor RH Circuit

DESCRIPTION

This circuit transmits signals from the multiplex network switch to the power window regulator motor.

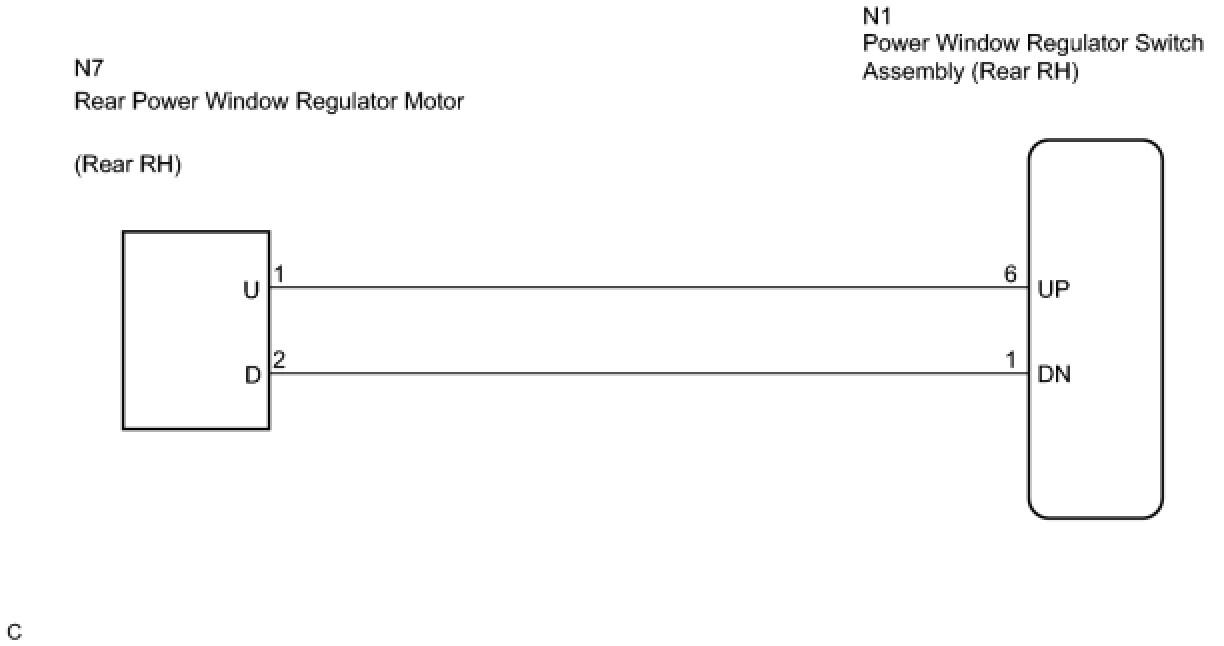

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT POWER WINDOW REGULATOR MOTOR





(a) Remove the power window motor.

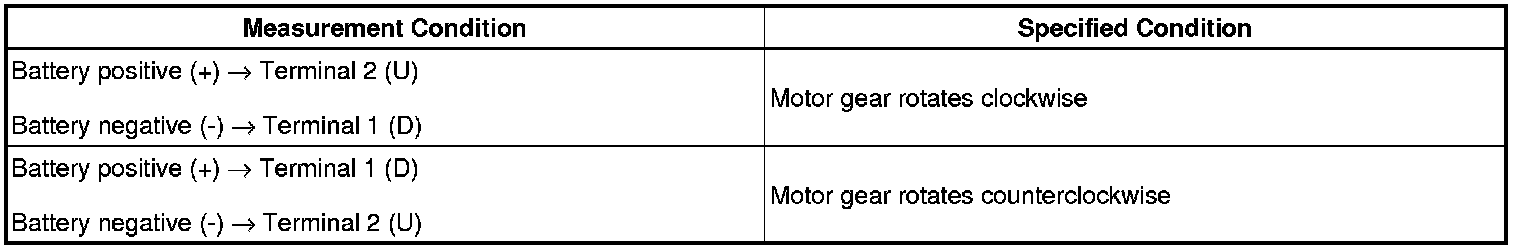

(b) Apply battery voltage to the motor connector according to the table below.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

Standard:






NG -- REPLACE POWER WINDOW REGULATOR MOTOR
OK -- Continue to next step.
2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - MULTIPLEX NETWORK SWITCH)

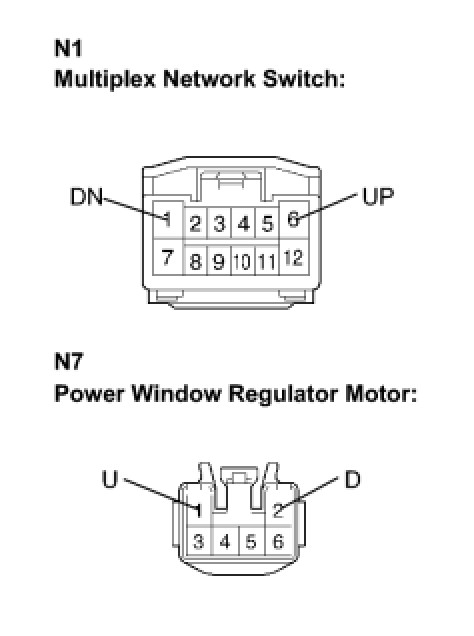

(a) Disconnect the N1 and N7 connectors.

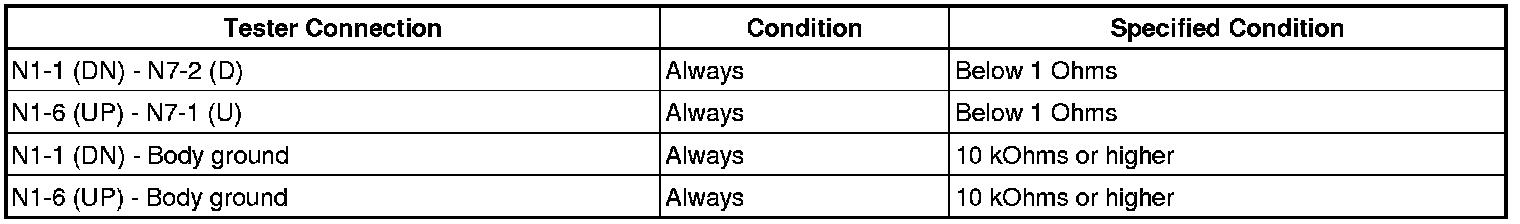

(b) Measure the resistance according to the value(s) in the table below.
Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
