Power Window Master Switch Power Source Circuit

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Power Window Master Switch Power Source Circuit

Power Window Master Switch Power Source Circuit

DESCRIPTION

This circuit supplies power to operate the multiplex network master switch.

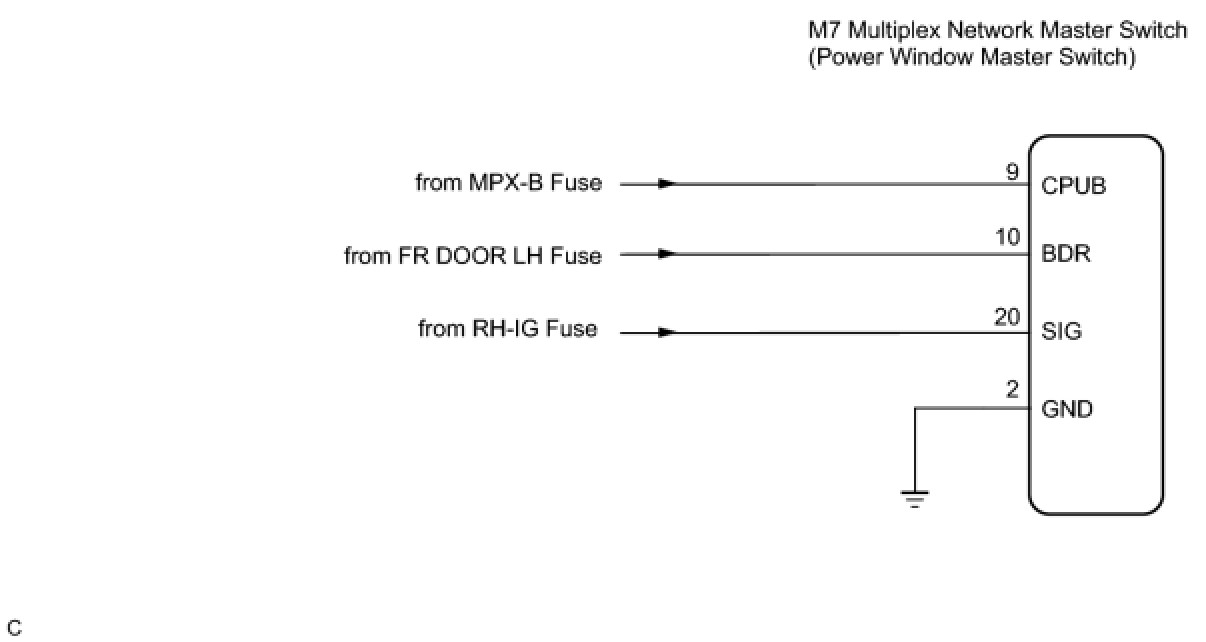

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (MPX MASTER SWITCH - BATTERY POSITIVE AND BODY GROUND)

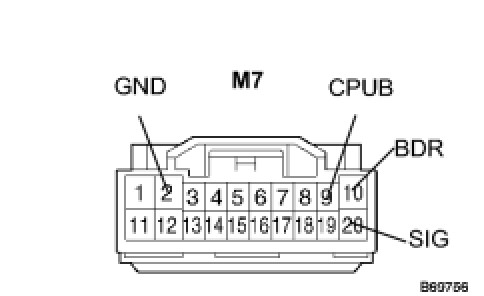

(a) Disconnect the M7 connector.

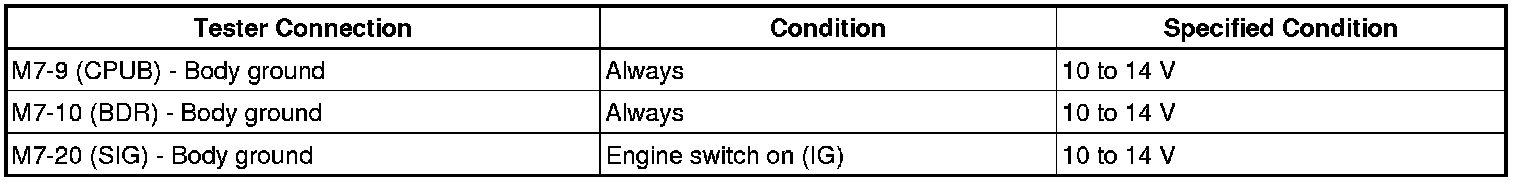

(b) Measure the voltage and resistance according to the value(s) in the table below.
Voltage:






Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
