Front Passenger Side Power Window Motor Circuit
WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Power Window Motor Circuit
Front Passenger Side Power Window Motor Circuit
DESCRIPTION
This circuit transmits signals from the multiplex network switch to the power window regulator motor.
WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE

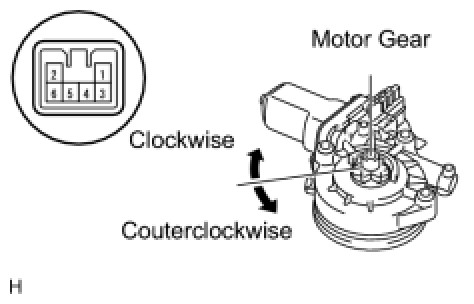

1. INSPECT POWER WINDOW REGULATOR MOTOR
(a) Remove the power window motor.

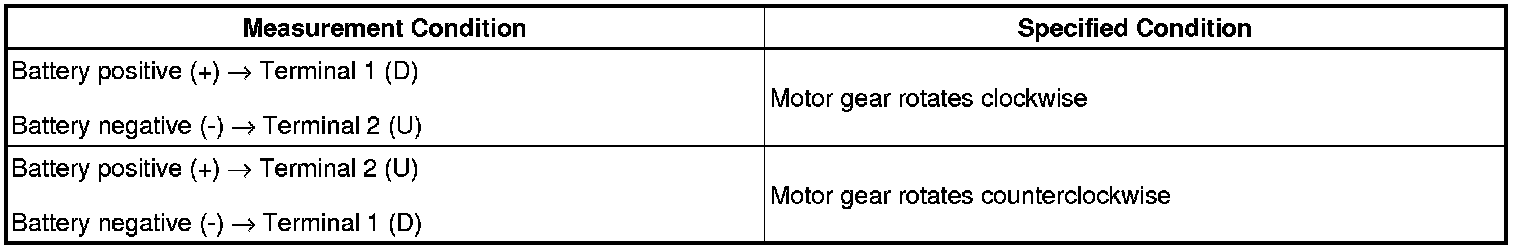

(b) Apply battery voltage to the motor connector according to the table below.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
Standard:
NG -- REPLACE POWER WINDOW REGULATOR MOTOR
OK -- Continue to next step.
2. CHECK WIRE HARNESS (WINDOW REGULATOR MOTOR - MULTIPLEX NETWORK SWITCH)

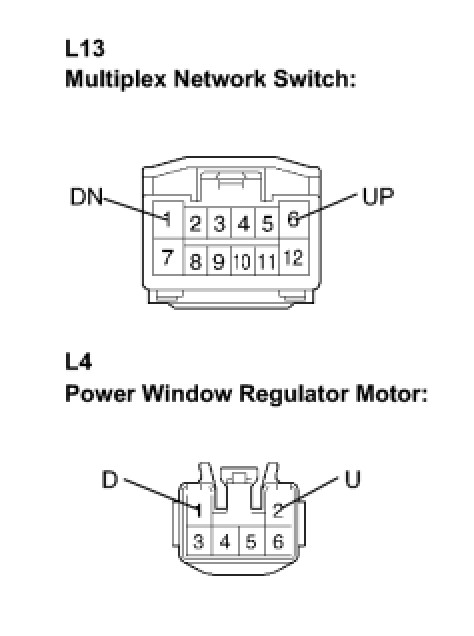

(a) Disconnect the L13 and L4 connectors.
(b) Measure the resistance according to the value(s) in the table below.
Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
