Disassembly

RA62 MANUAL TRANSMISSION: OUTPUT SHAFT:

DISASSEMBLY

1. REMOVE NO. 3 SYNCHRONIZER RING
(a) Remove the No. 3 synchronizer ring from the output shaft.
2. REMOVE OUTPUT SHAFT CENTER BEARING
(a) Remove the output shaft center bearing from the output shaft.
3. REMOVE OUTPUT SHAFT FRONT BEARING

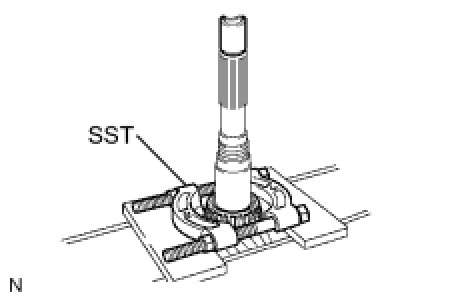

(a) Using SST and a press, remove the output shaft front bearing.
SST: 09950-00020
