Component Tests and General Diagnostics

CLUTCH UNIT:

INSPECTION

1. INSPECT CLUTCH DISC ASSEMBLY

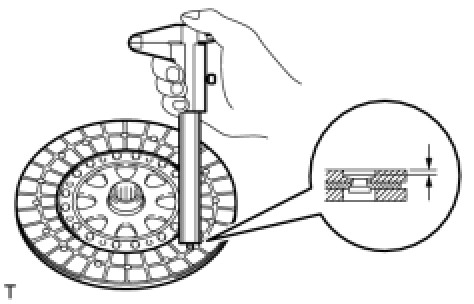

(a) Using vernier calipers, measure the rivet head depth.
Minimum rivet depth:
1.3 mm (0.0512 in.)
If the result is less than the minimum, replace the clutch disc assembly.






(b) Install the clutch disc assembly to the transmission unit.
NOTE: Take care not to insert the clutch disc assembly in the wrong direction.

(c) Using a dial indicator, check the clutch disc assembly runout.
Maximum runout:
0.8 mm (0.031 in.)
If the runout exceeds the maximum, replace the clutch disc assembly.
2. INSPECT FLYWHEEL SUB-ASSEMBLY

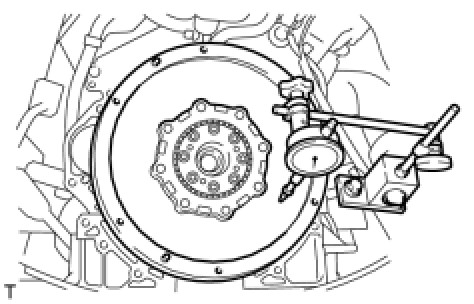

(a) Using a dial indicator, inspect the flywheel sub-assembly runout.
Maximum runout:
0.1 mm (0.004 in.)
If the runout exceeds the maximum, replace the flywheel sub-assembly.
