Removal

A960E AUTOMATIC TRANSMISSION: EXTENSION HOUSING REAR OIL SEAL:

REMOVAL

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

2. REMOVE OXYGEN SENSOR Removal

3. REMOVE NO. 1 REAR FLOOR PANEL BRACE Removal

4. REMOVE FRONT CENTER FLOOR BRACE Removal

5. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

6. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR Removal

7. REMOVE OUTSIDE AIR GUIDE PLATE RH Removal

8. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY Removal

9. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

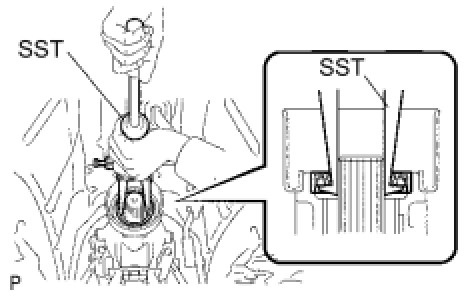

(a) Using SST, remove the oil seal.
SST: 09308-00010
