Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS

HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

Tilt & Telescopic

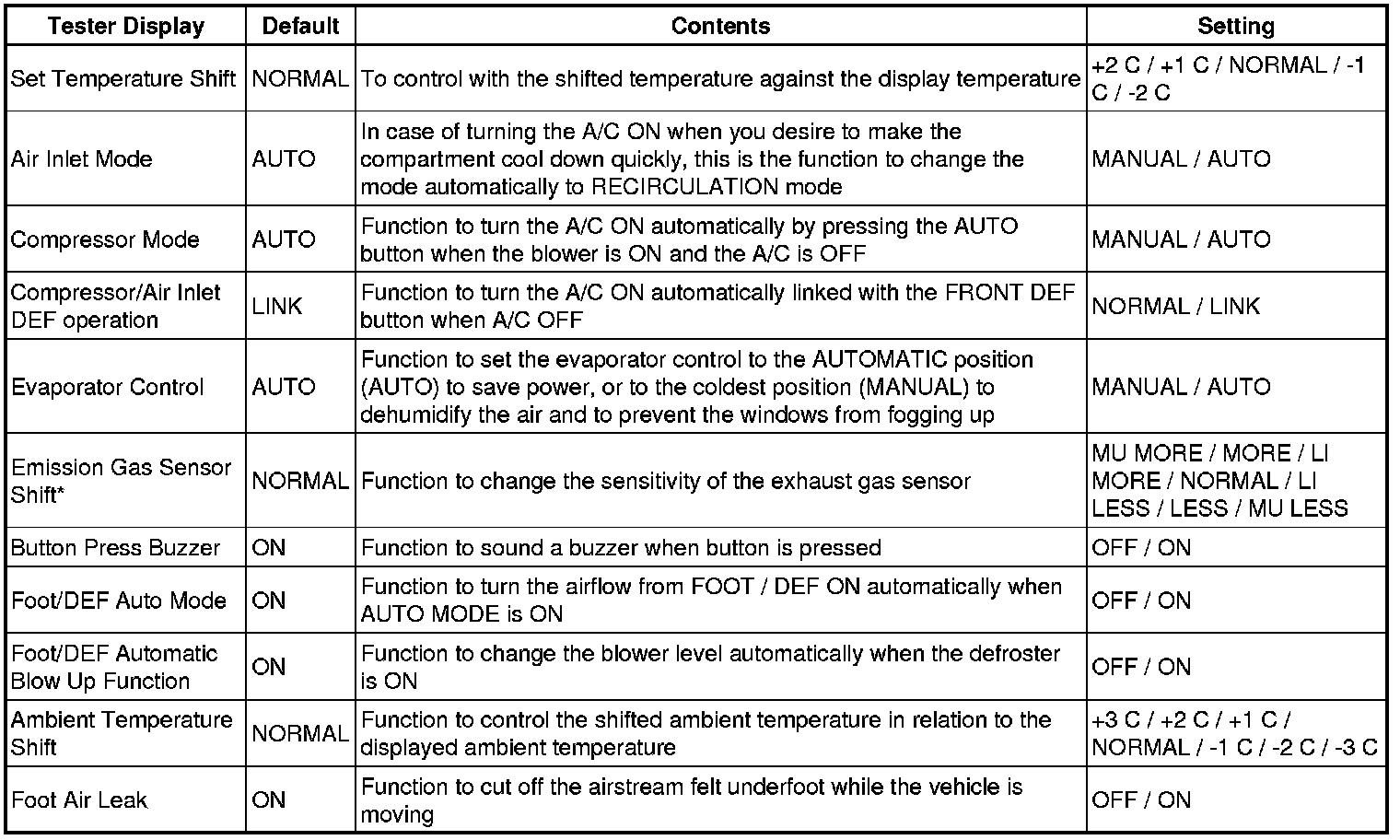

2. AIR CONDITIONING SYSTEM

Air Conditioner

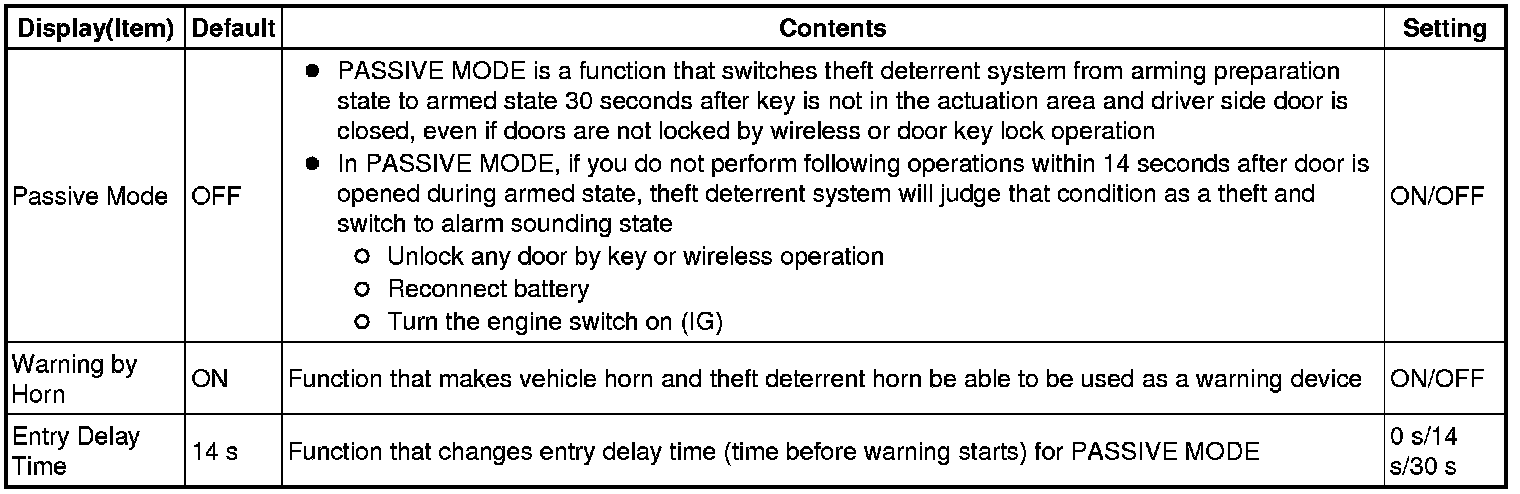

3. THEFT DETERRENT SYSTEM

Security

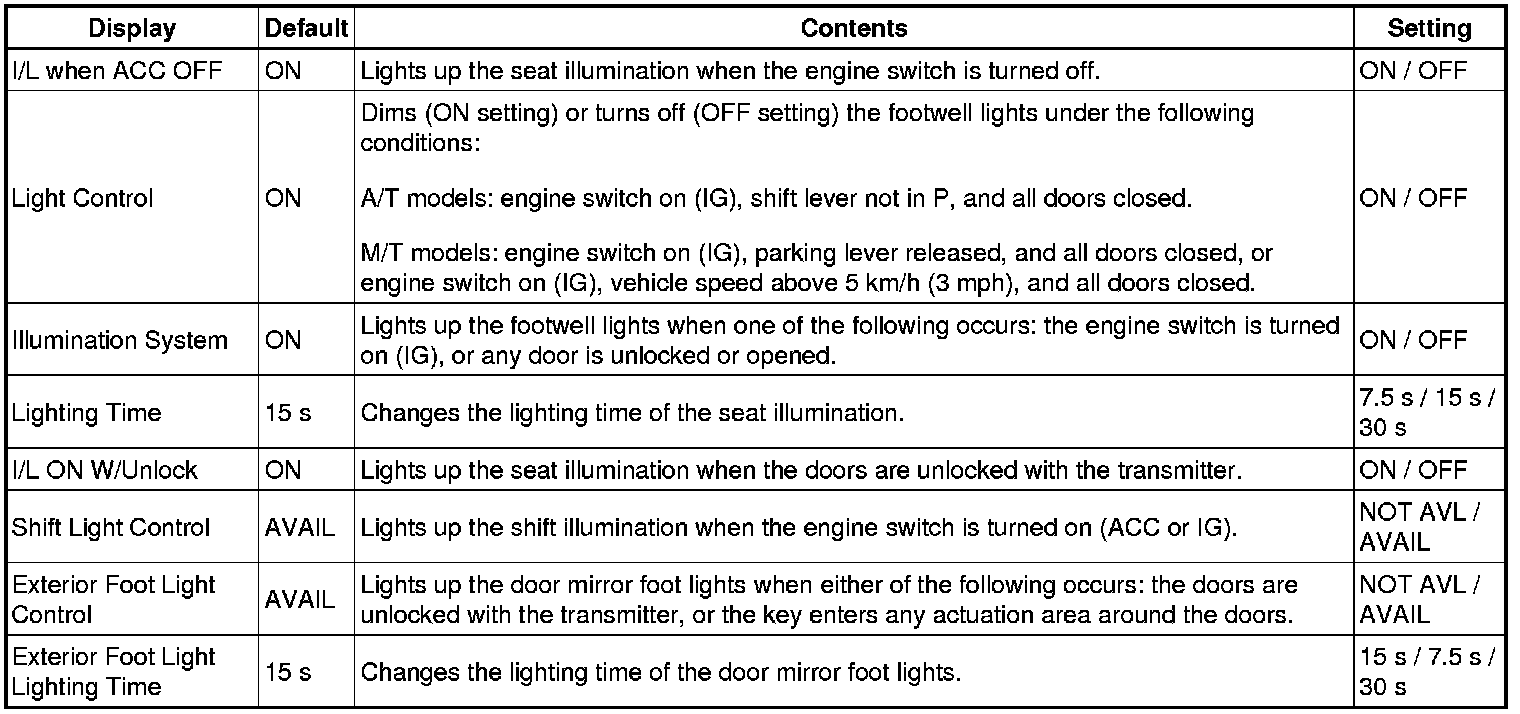

4. LIGHTING SYSTEM

Illuminated Entry:

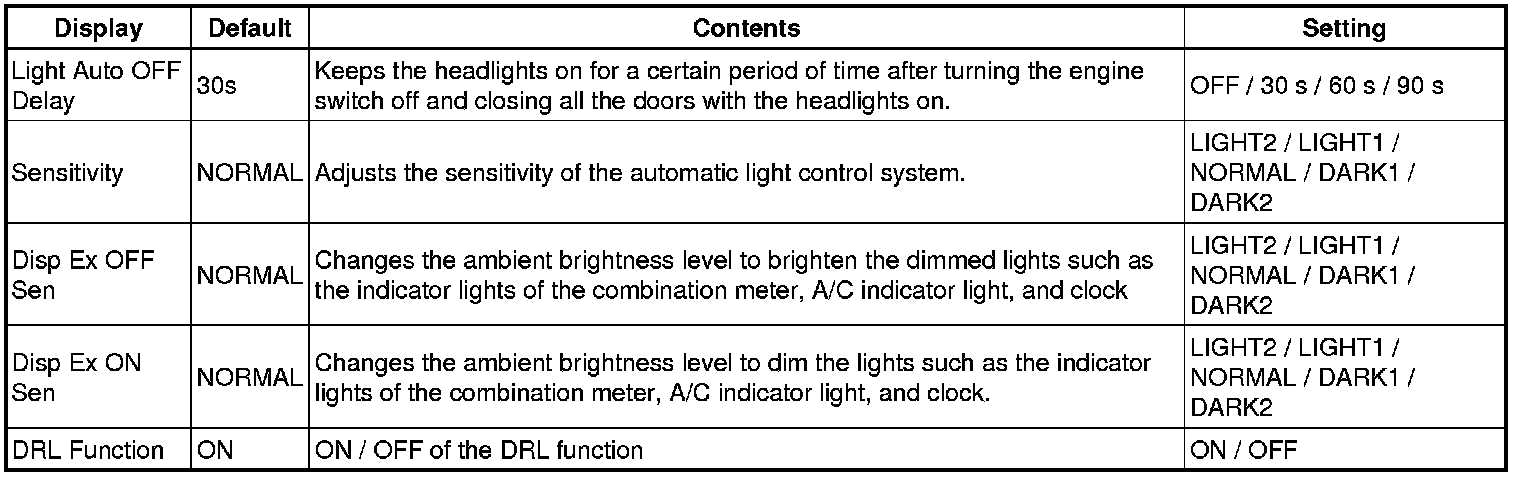

Light Control:






HINT: Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

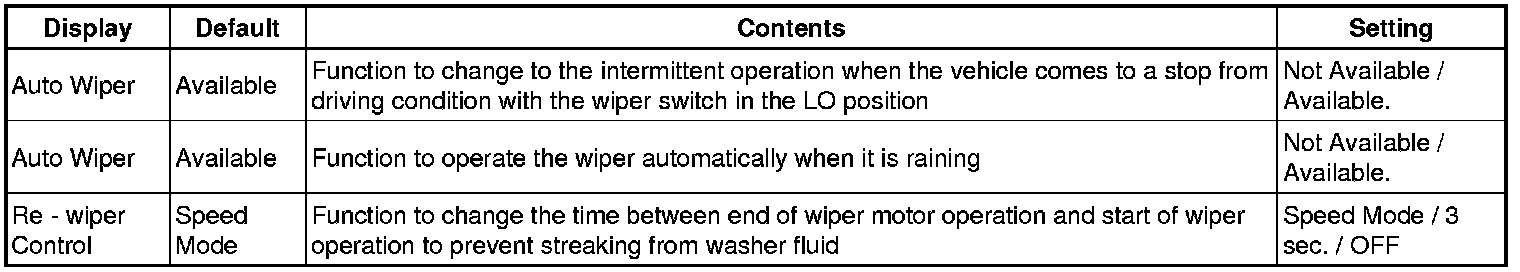

5. WIPER AND WASHER SYSTEM

WIPER:

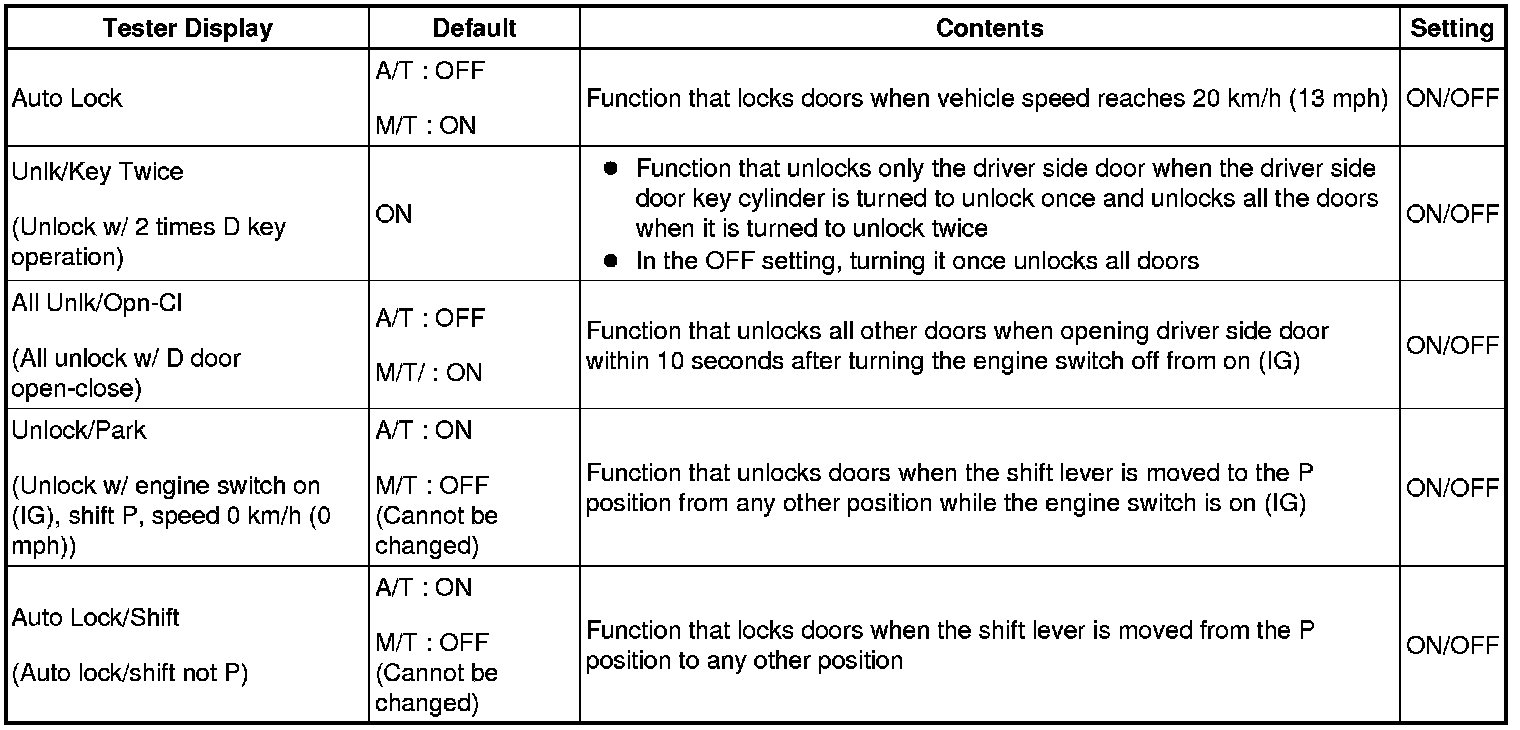

6. POWER DOOR LOCK CONTROL SYSTEM

Door Lock

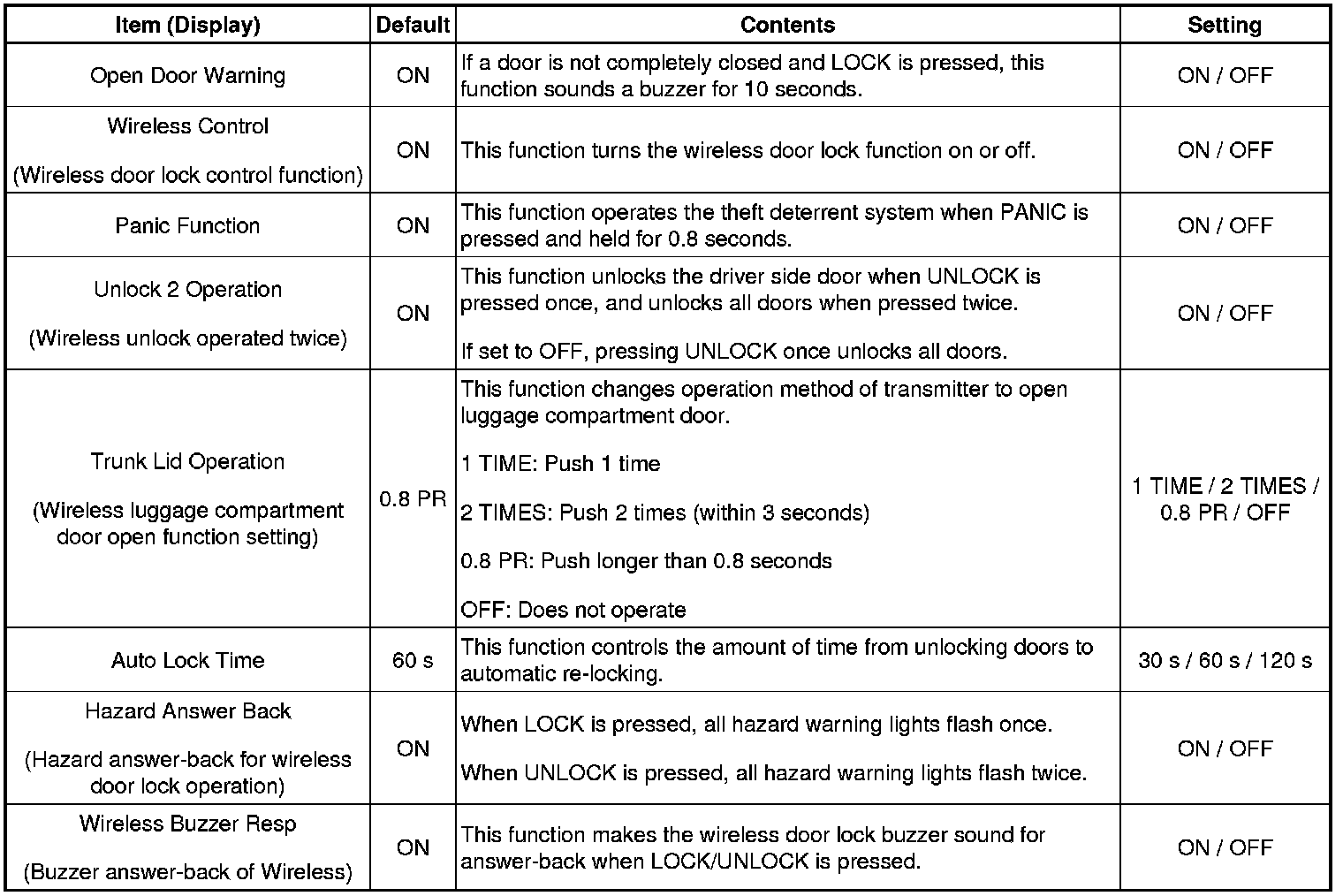

7. WIRELESS DOOR LOCK CONTROL SYSTEM

Wireless Door Lock Control System

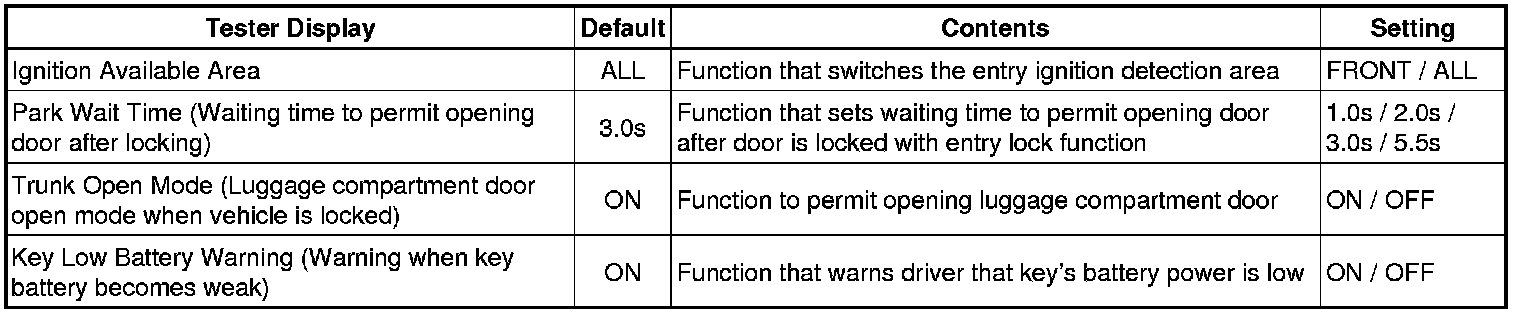

8. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (FOR DOOR LOCK)
Smart (Smart Access System with Push-button Start):

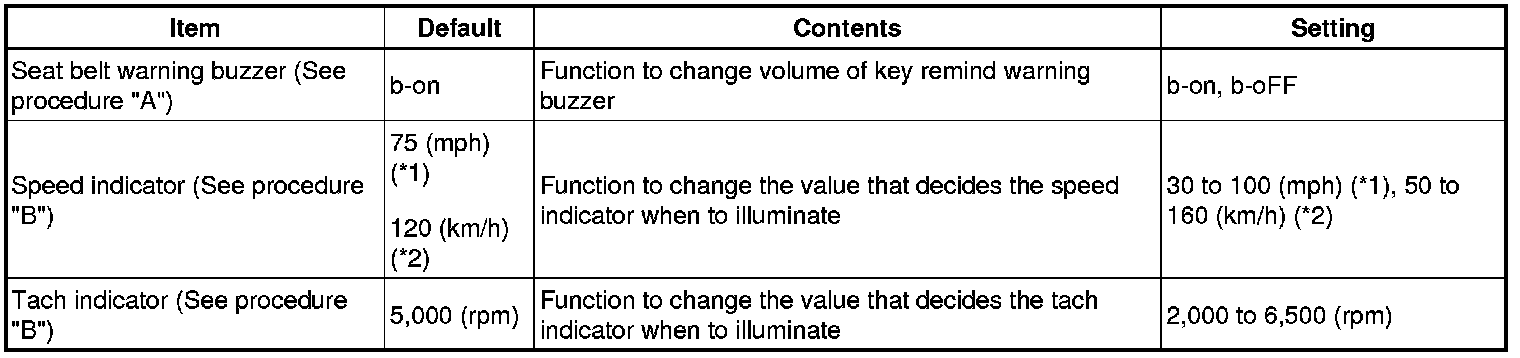

9. METER / GAUGE SYSTEM

Combination Meter:






HINT: The following items can be customized without using the Techstream.





*1: U.S.A.
*2: for Canada

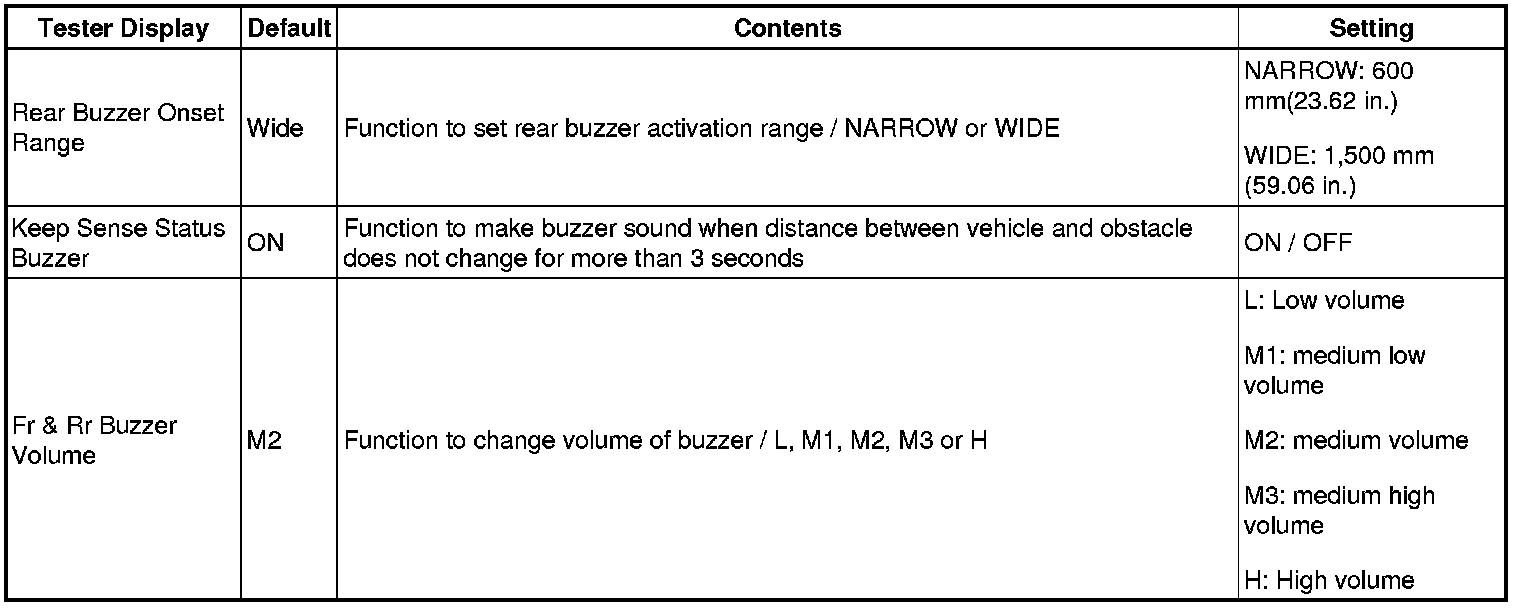

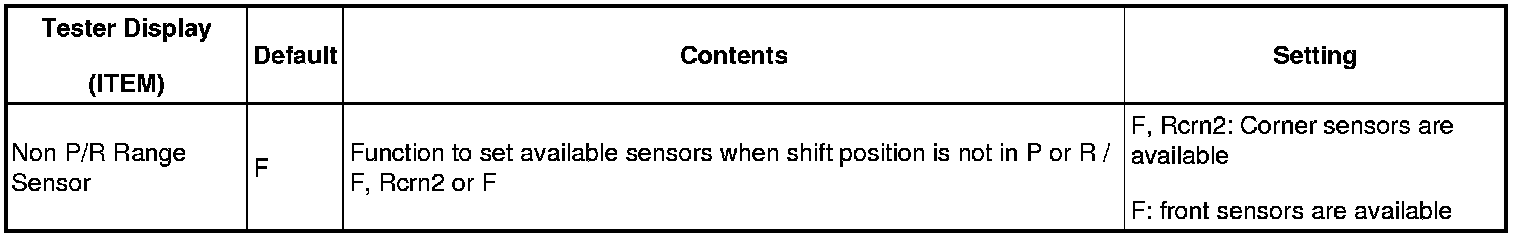

10. INTUITIVE PARKING ASSIST SYSTEM

Warning





Sensor

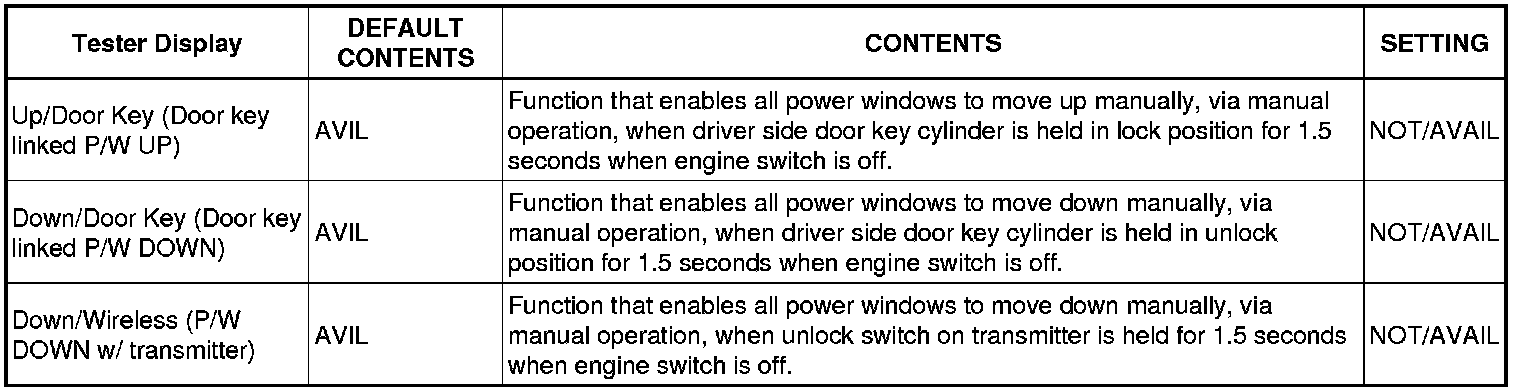

11. POWER WINDOW CONTROL SYSTEM
Power Window:

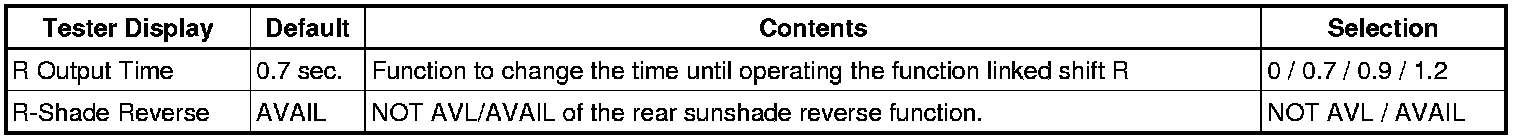

12. REAR SUNSHADE SYSTEM

Others

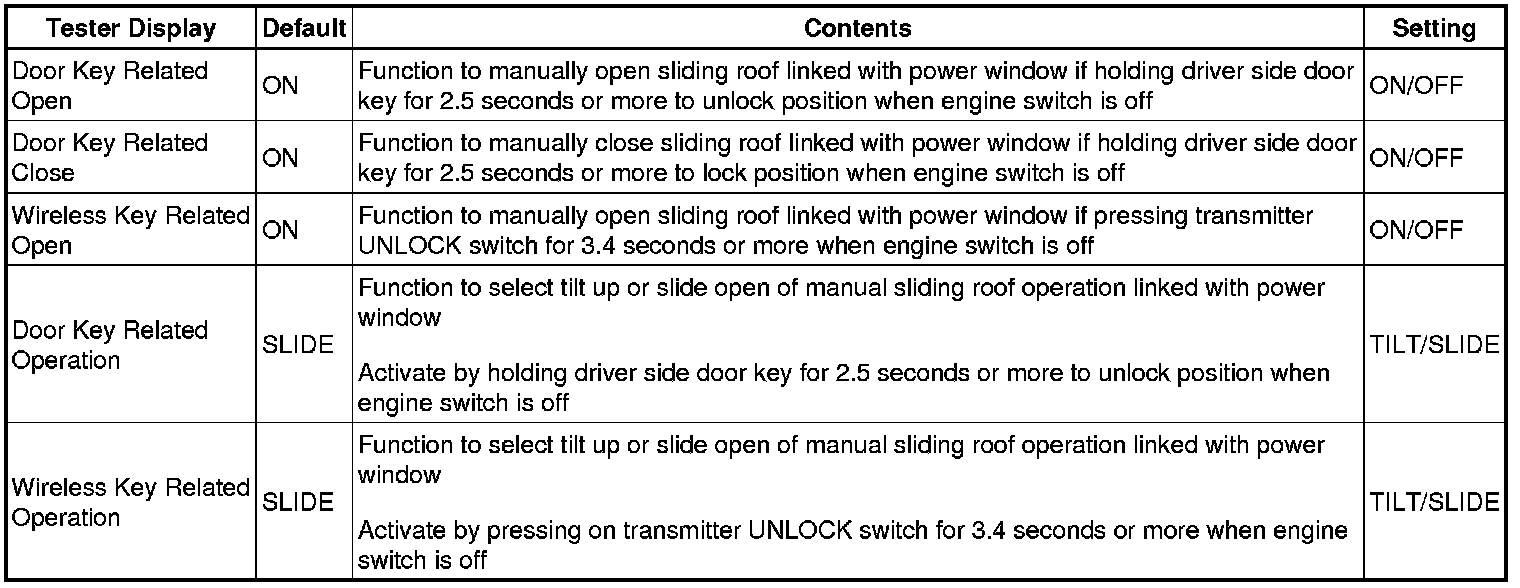

13. SLIDING ROOF SYSTEM

Slide Roof
