Initial Inspection and Diagnostic Overview

SUSPENSION: SUSPENSION SYSTEM:

HOW TO PROCEED WITH TROUBLESHOOTING

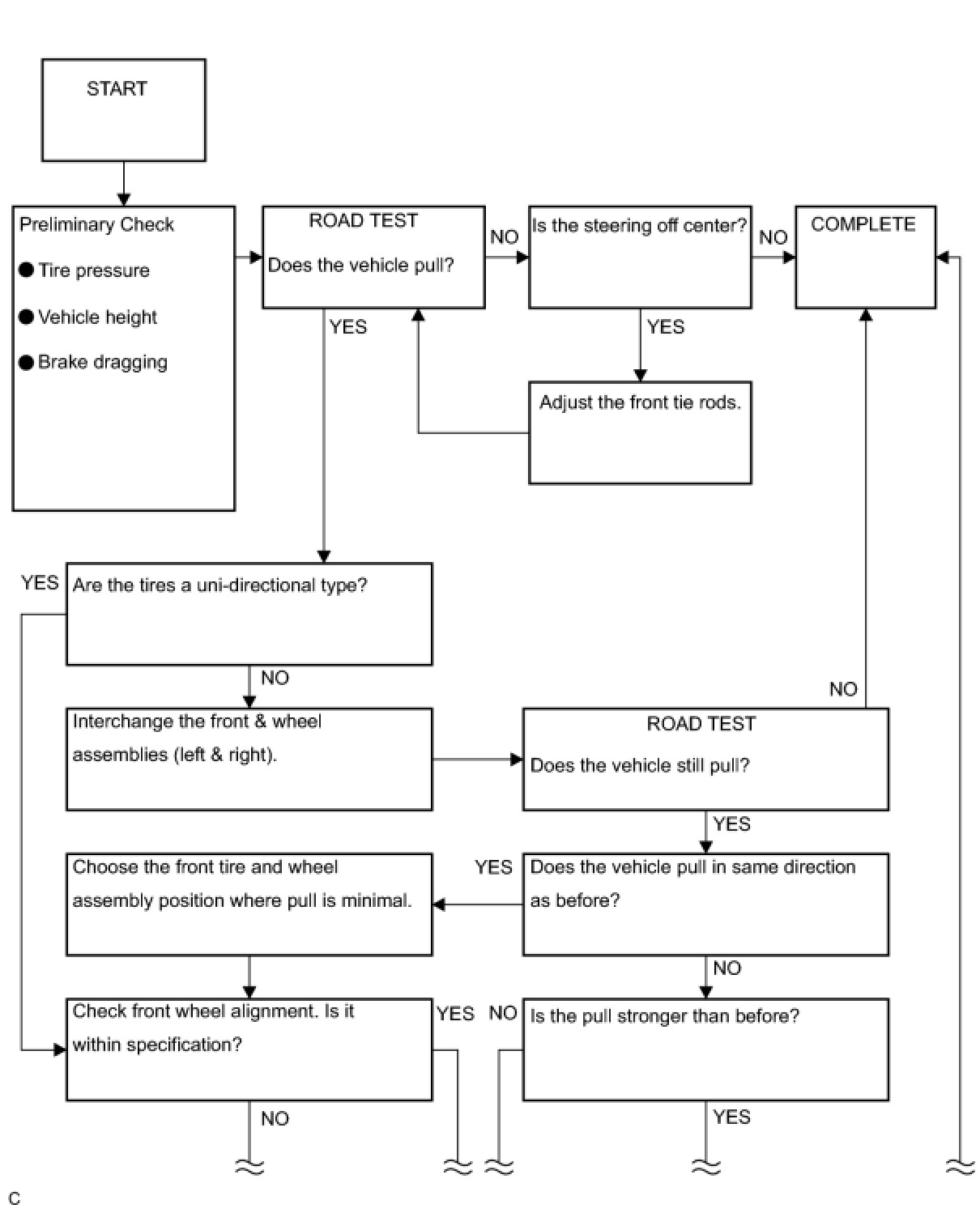

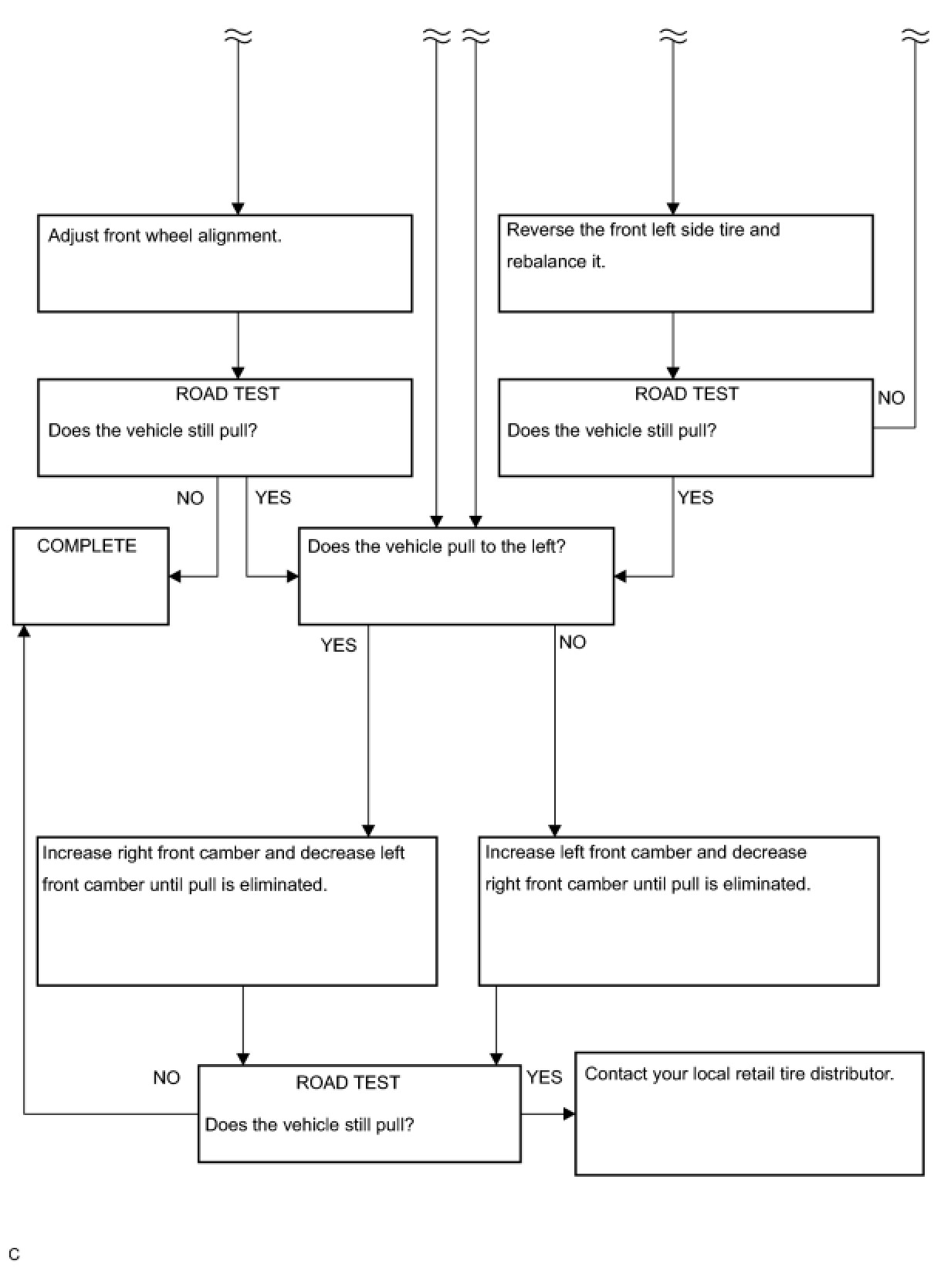

HINT: This is a flow chart for vehicle pull.
