Installation

SUSPENSION: FRONT STABILIZER BAR (for 2WD):

INSTALLATION

1. INSTALL FRONT STABILIZER BAR






(a) Install the front stabilizer bar to the vehicle.

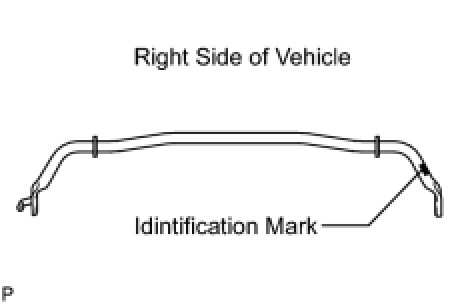

NOTE: The identification mark must be on the right side of the vehicle when installing the front stabilizer bar.

2. INSTALL FRONT NO. 1 STABILIZER BAR BUSHING

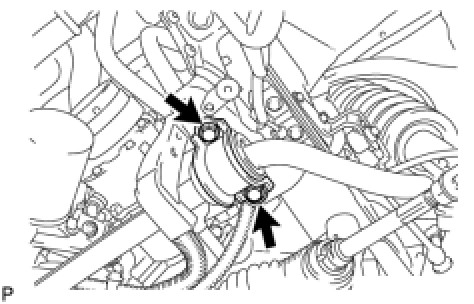

(a) Install the 2 front No. 1 stabilizer bar bushings as shown in the illustration.
NOTE: Be sure to install the front No. 1 stabilizer bar bushings so that the cutouts face the front of the vehicle.

3. INSTALL FRONT NO. 1 STABILIZER BRACKET LH

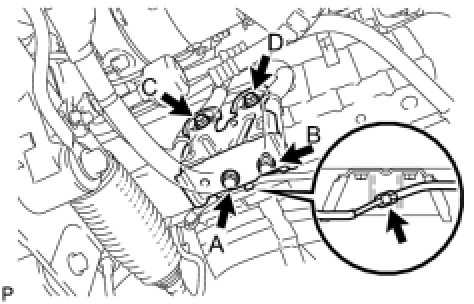

(a) Press the front No. 1 stabilizer bracket LH against the frame toward the outside of the vehicle and temporarily tighten bolt A.
(b) Install bolt B, fully tighten bolt A, and then install bolts C and D.
(c) Install the skid control sensor wire clamp to the front No. 1 stabilizer bracket LH.
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
4. INSTALL FRONT NO. 1 STABILIZER BRACKET RH
HINT: Install the RH side following the same procedures as for the LH side.

5. INSTALL FRONT NO. 2 STABILIZER BRACKET LH






(a) Install the front No. 2 stabilizer bracket LH on the vehicle with the 2 bolts.
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
6. INSTALL FRONT NO. 2 STABILIZER BRACKET RH
HINT: Install the RH side following the same procedure as for the LH side.

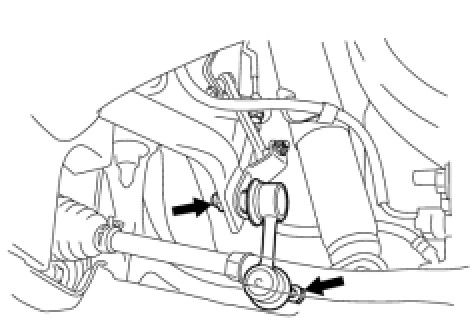

7. INSTALL FRONT STABILIZER LINK ASSEMBLY LH






(a) Install the front stabilizer link assembly LH with the 2 nuts.
Torque: 84 Nm (856 kgf-cm, 62 ft-lbf)
HINT: If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

8. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT: Install the RH side following the same procedure as for the LH side.

9. CONNECT FRONT HEIGHT CONTROL SENSOR LINK ASSEMBLY
10. INSTALL REAR ENGINE UNDER COVER LH

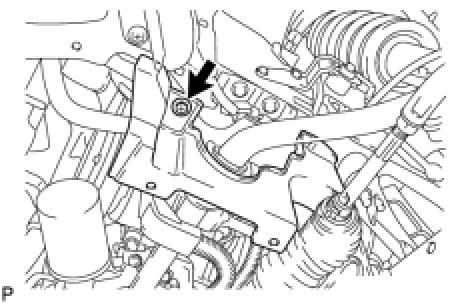

(a) Install the engine under cover LH with the bolt.
11. INSTALL REAR ENGINE UNDER COVER RH
HINT: Install the RH side following the same procedure as for the LH side.

12. INSTALL ENGINE UNDER COVER LH
13. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 72 ft-lbf)
14. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT Front Wheel Alignment
