IG Power Source Circuit

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: IG Power Source Circuit

IG Power Source Circuit

DESCRIPTION

When the engine switch is turned on (IG), the IG power source circuit supplies positive voltage to the multiplex tilt & telescopic ECU.
The multiplex tilt & telescopic ECU also receives engine switch signals via this circuit.

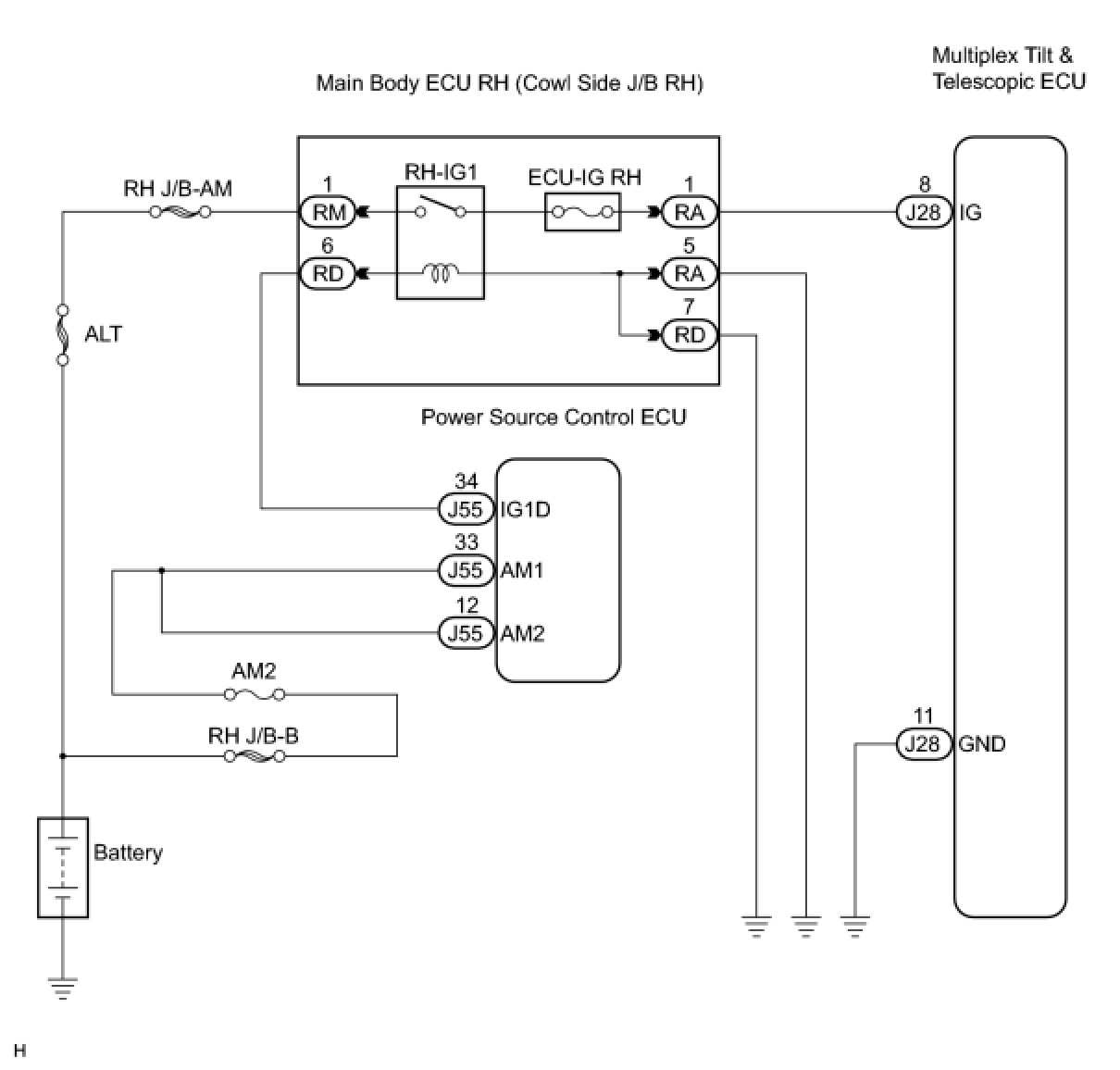

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU-IG RH)
(a) Remove the ECU-IG RH fuse from the main body ECU RH (cowl side J/B RH).
(b) Measure the resistance of the ECU-IG RH fuse.
Standard resistance:
Below 1 Ohms
NG -- REPLACE FUSE
OK -- Continue to next step.
2. INSPECT MULTIPLEX TILT & TELESCOPIC ECU (IG TERMINAL VOLTAGE)

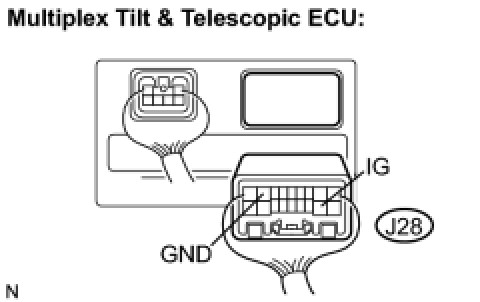

(a) Disconnect the J28 connector from the multiplex tilt & telescopic ECU.

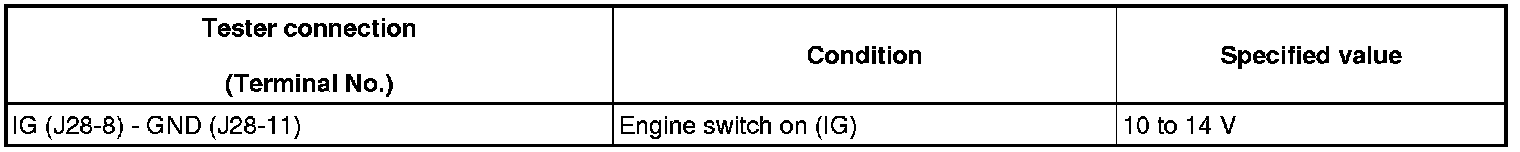

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - BODY GROUND)

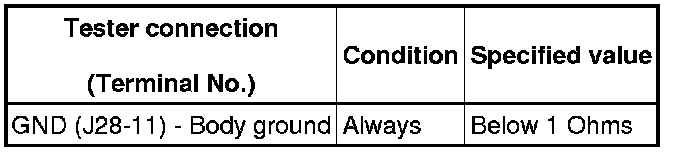

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - MAIN BODY ECU RH)

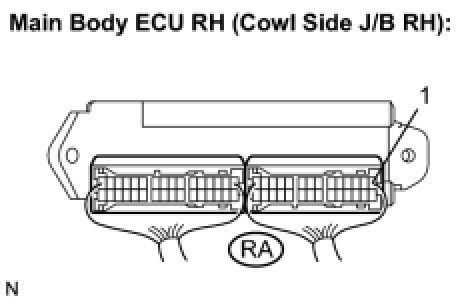

(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:






OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - MAIN BODY ECU RH)
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MAIN BODY ECU RH (COWL SIDE J/B RH) - BATTERY)
