Cylinder Head Torque & Sequence

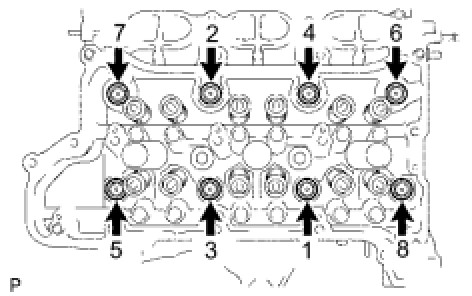

CYLINDER HEAD SUB-ASSEMBLY RHStep 1
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2

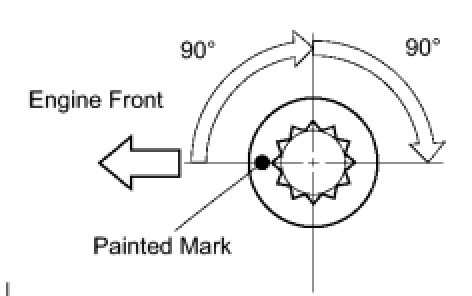

Mark the cylinder head bolt head with paint as shown in the illustration.
Tighten the cylinder head bolts another 90°.
Step 3
Tighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now facing rearward.

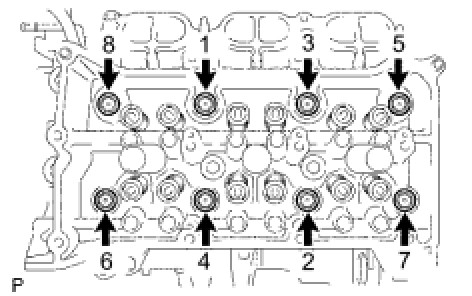

CYLINDER HEAD SUB-ASSEMBLY LH
Step 1
Torque: 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2
Mark the cylinder head bolt head with paint as shown in the illustration.
Tighten the cylinder head bolts by 90°.
Step 3
Tighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now facing rearward.
