Torque Specifications

SERVICE SPECIFICATIONS: A960E AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

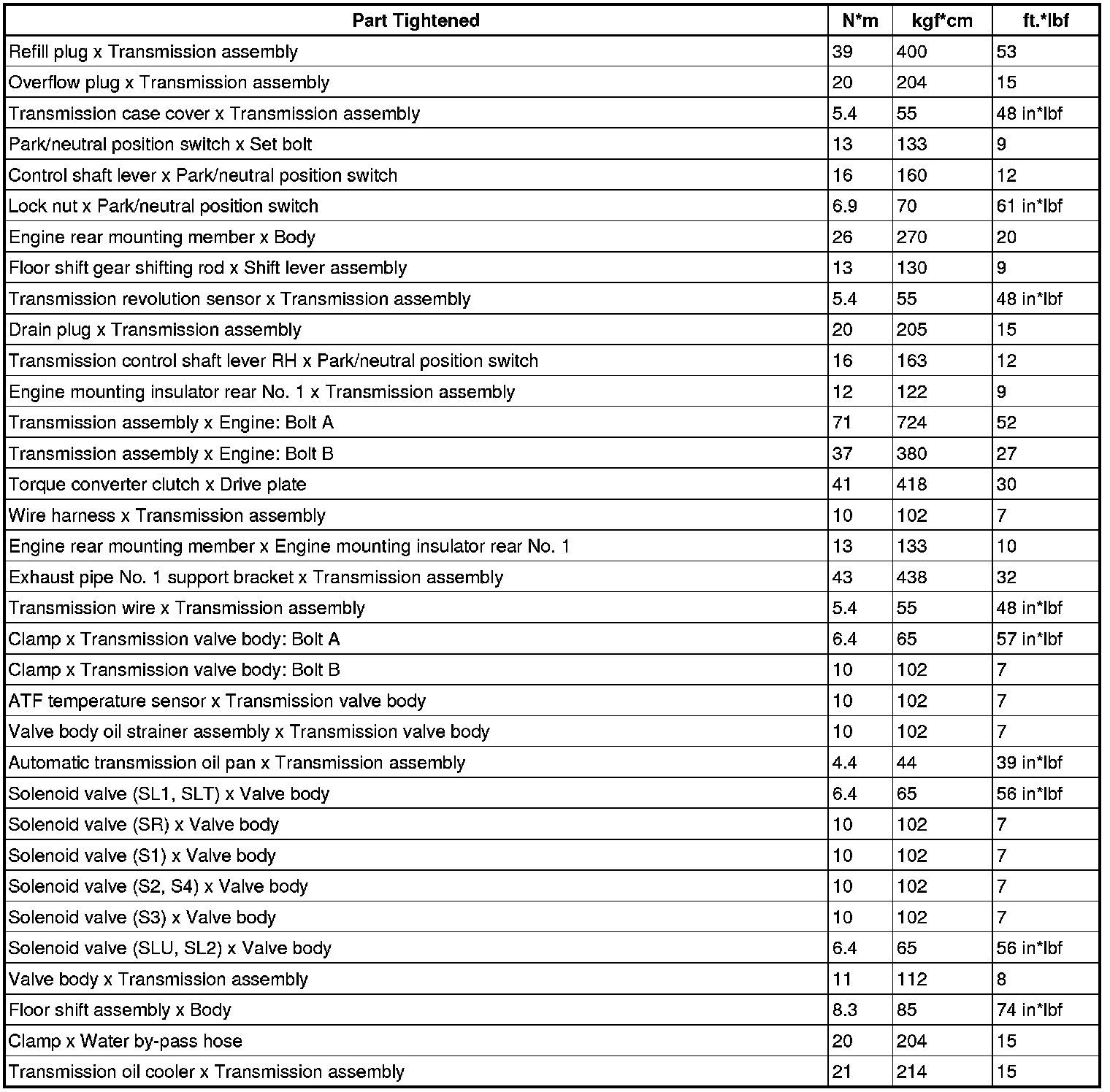

Automatic Transmission Assembly:

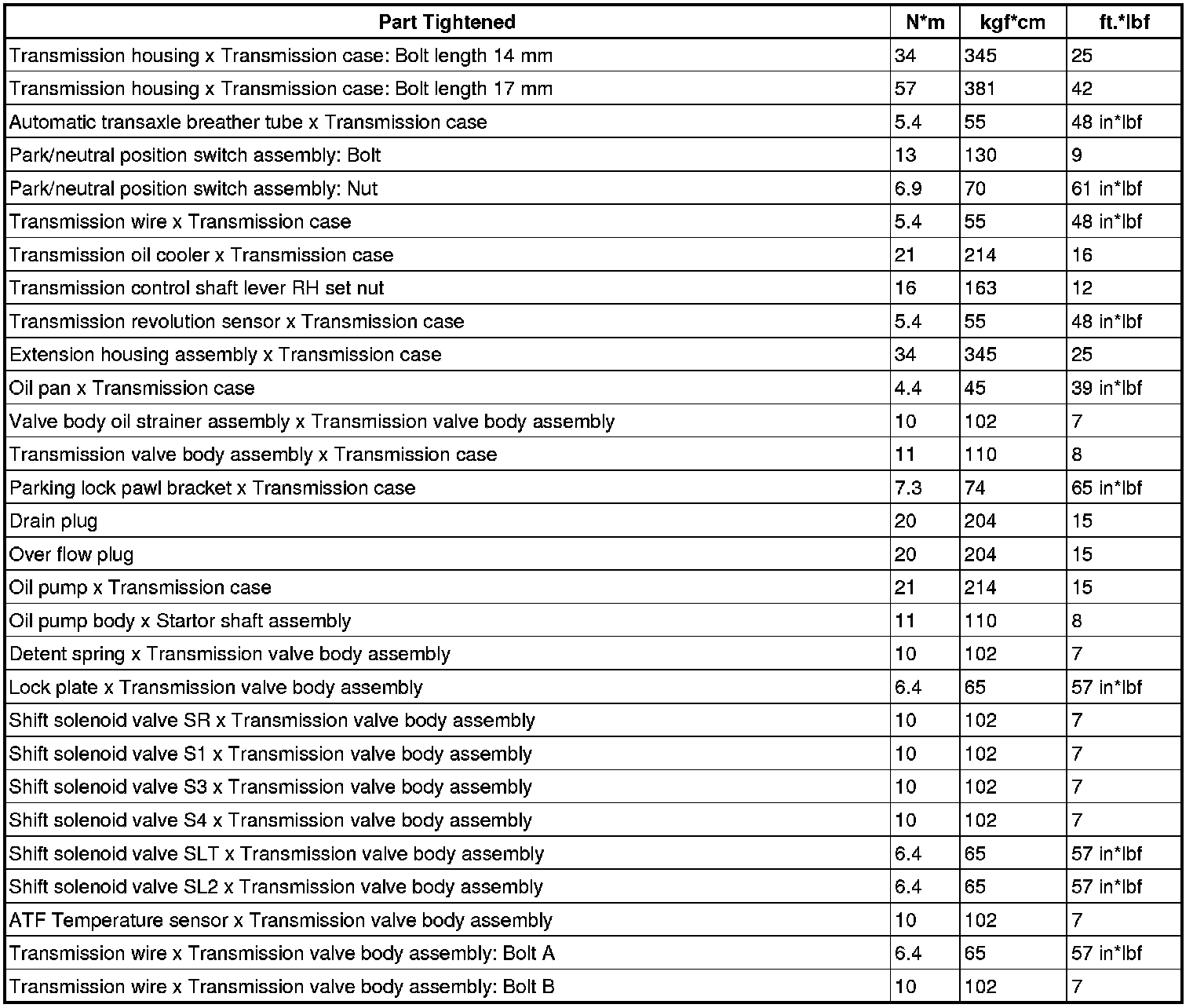

Automatic Transmission Unit:
