Impact Sensor: Diagrams

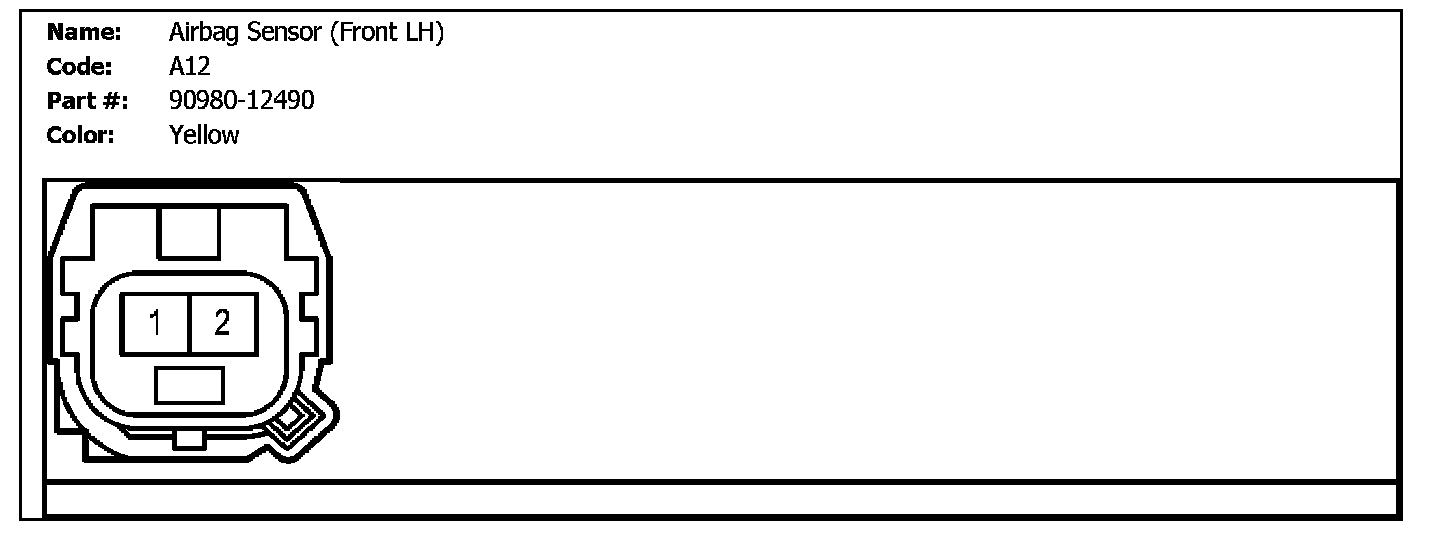

A12 (Airbag Sensor (Front LH)):

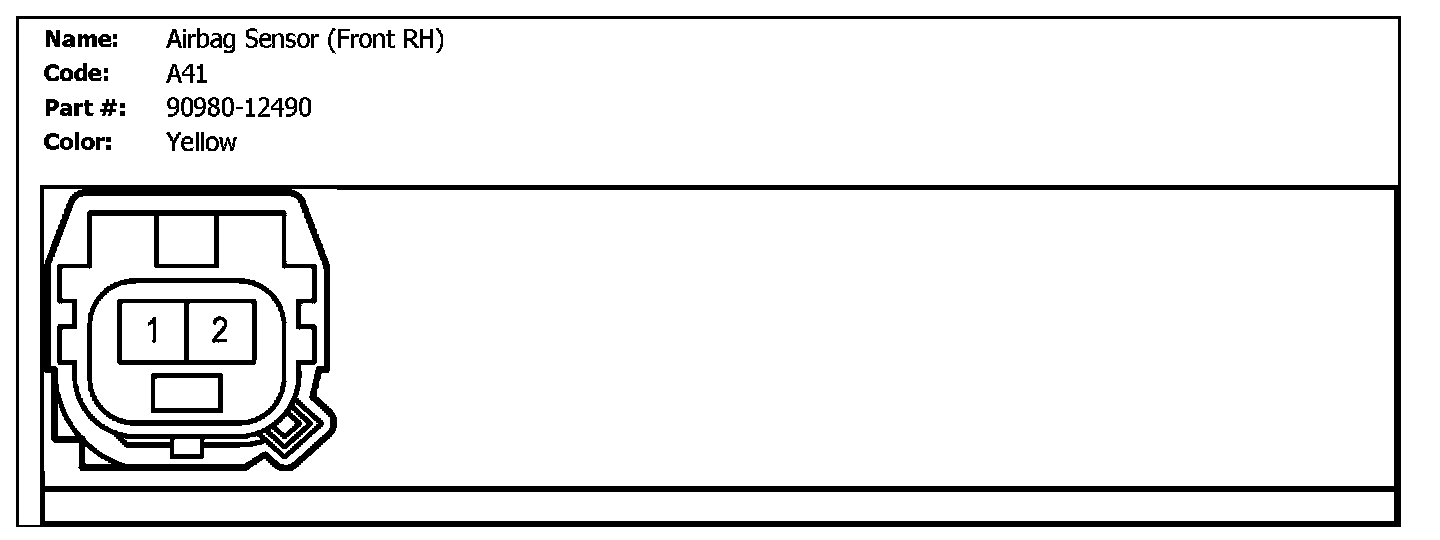

A41 (Airbag Sensor (Front RH)):

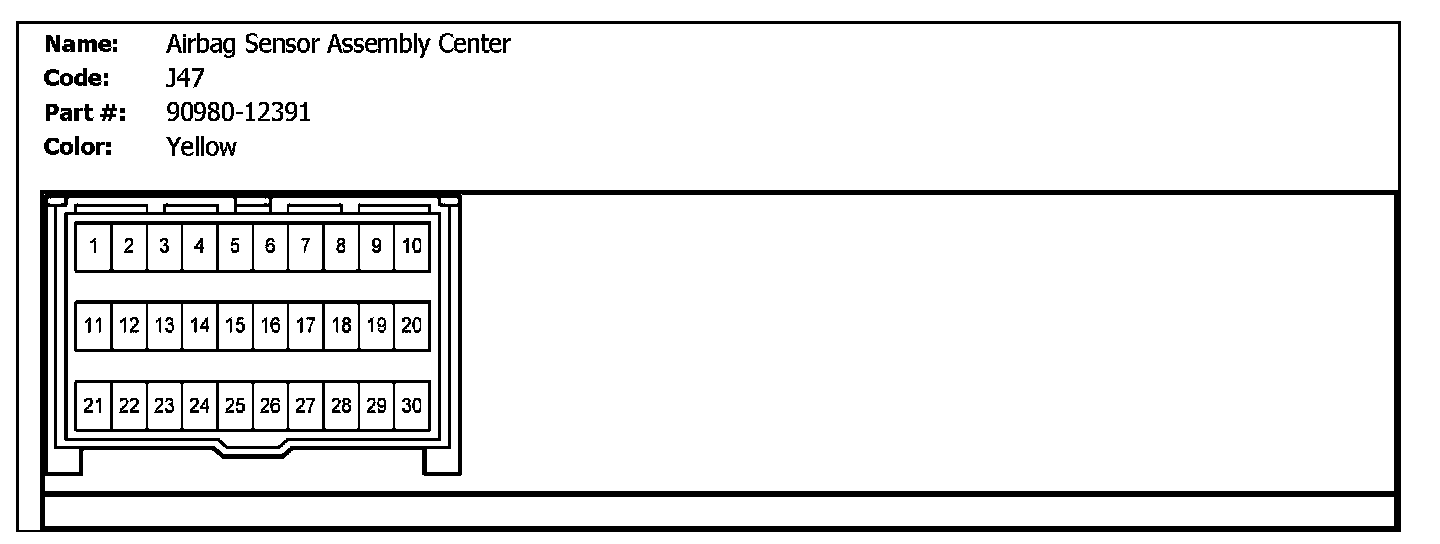

J47 (Airbag Sensor Assembly Center):

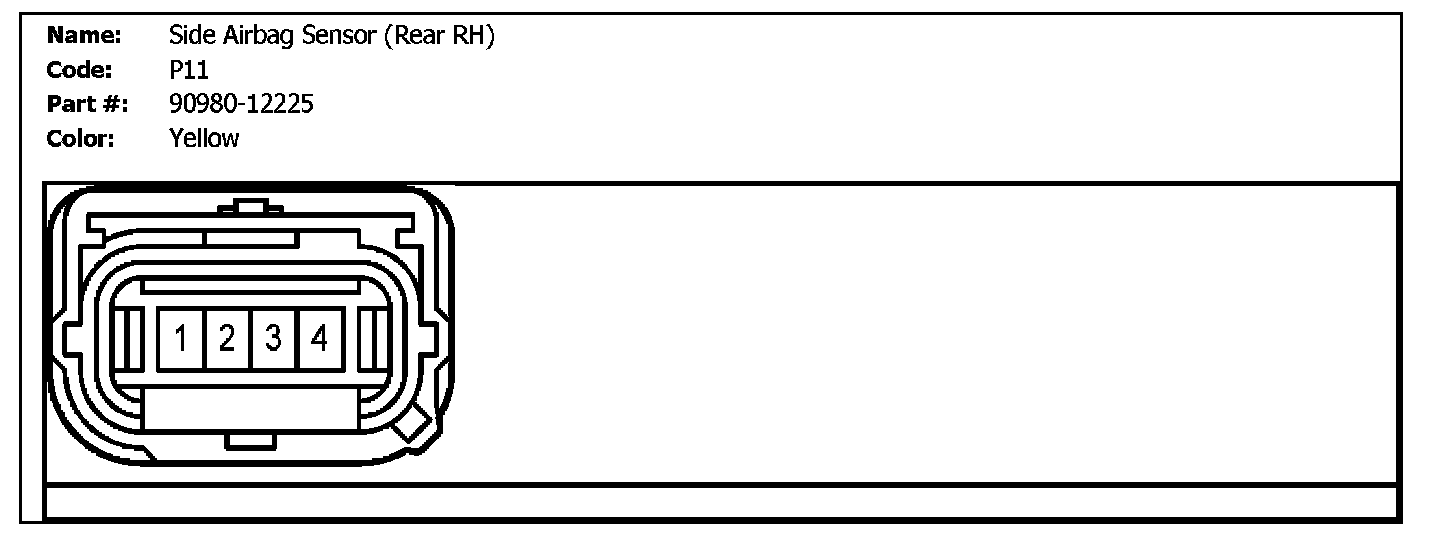

P11 (Side Airbag Sensor (Rear RH)):

P14 (Airbag Sensor Assembly Center):

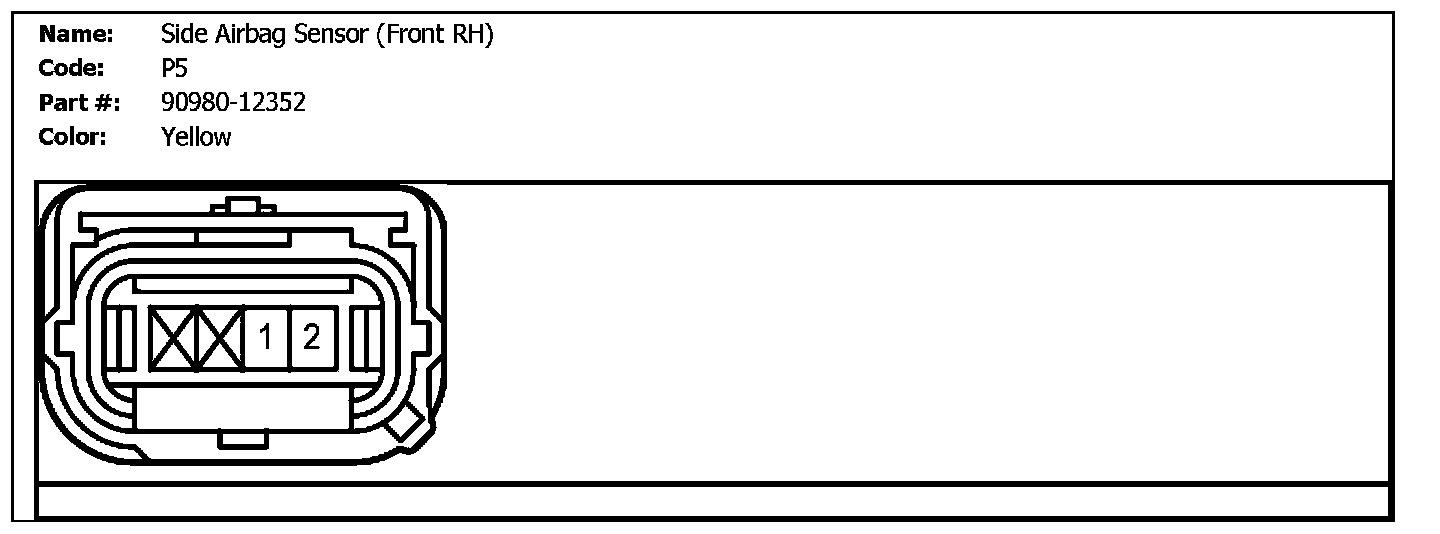

P5 (Side Airbag Sensor (Front RH)):

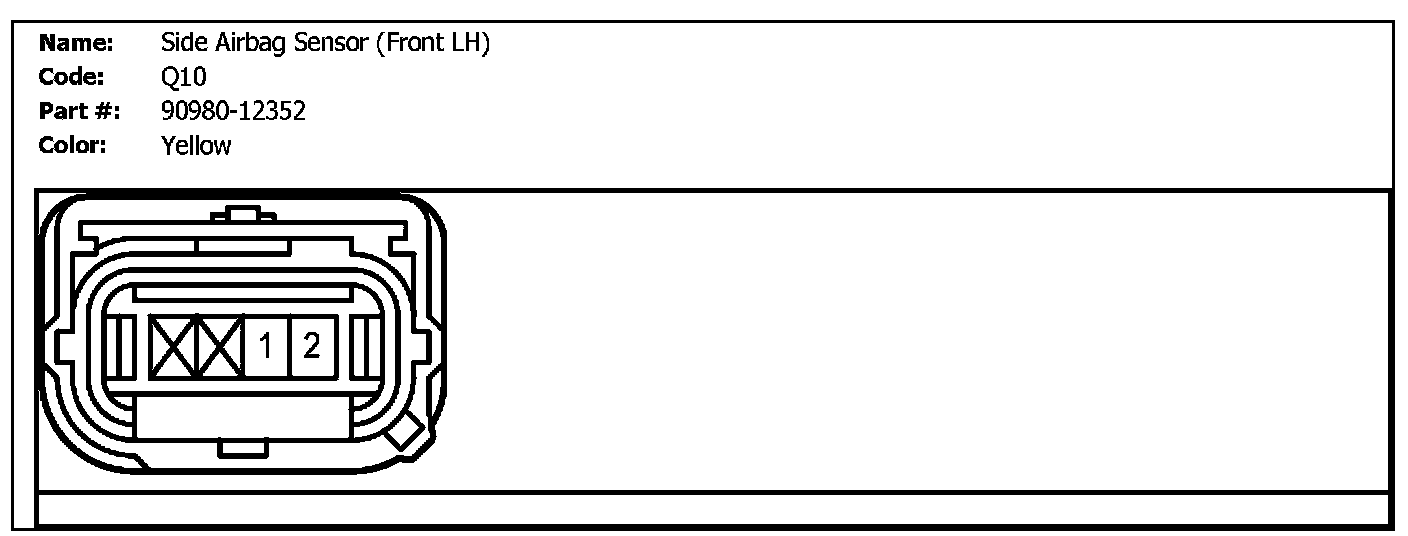

Q10 (Side Airbag Sensor (Front LH)):

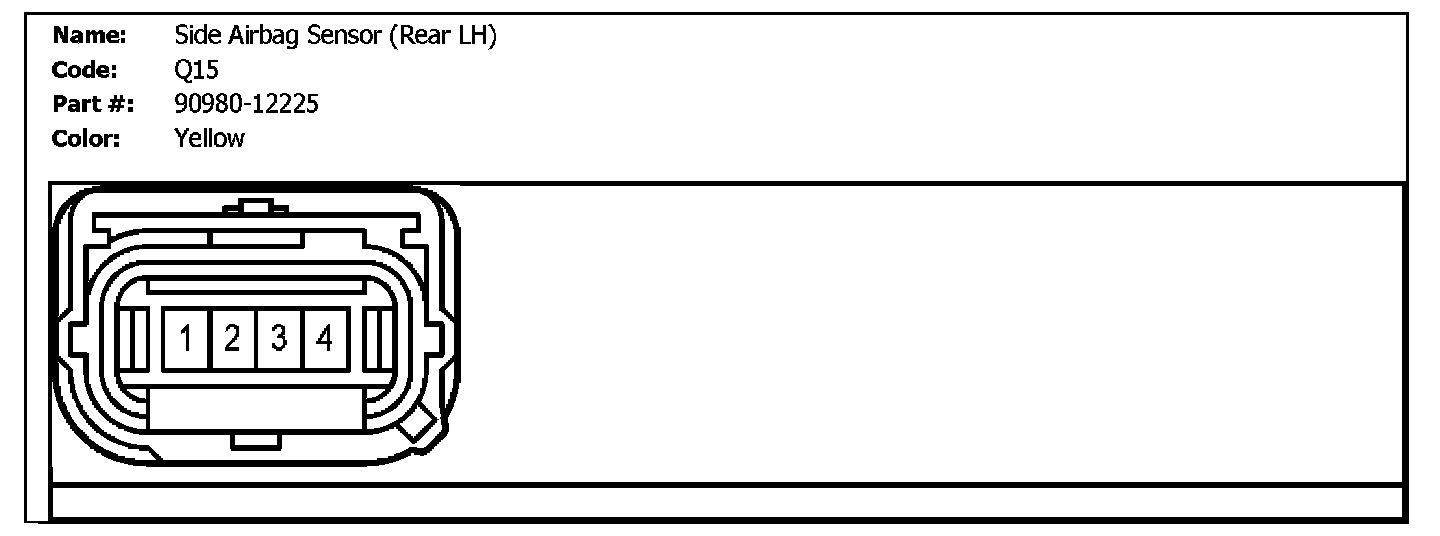

Q15 (Side Airbag Sensor (Rear LH)):

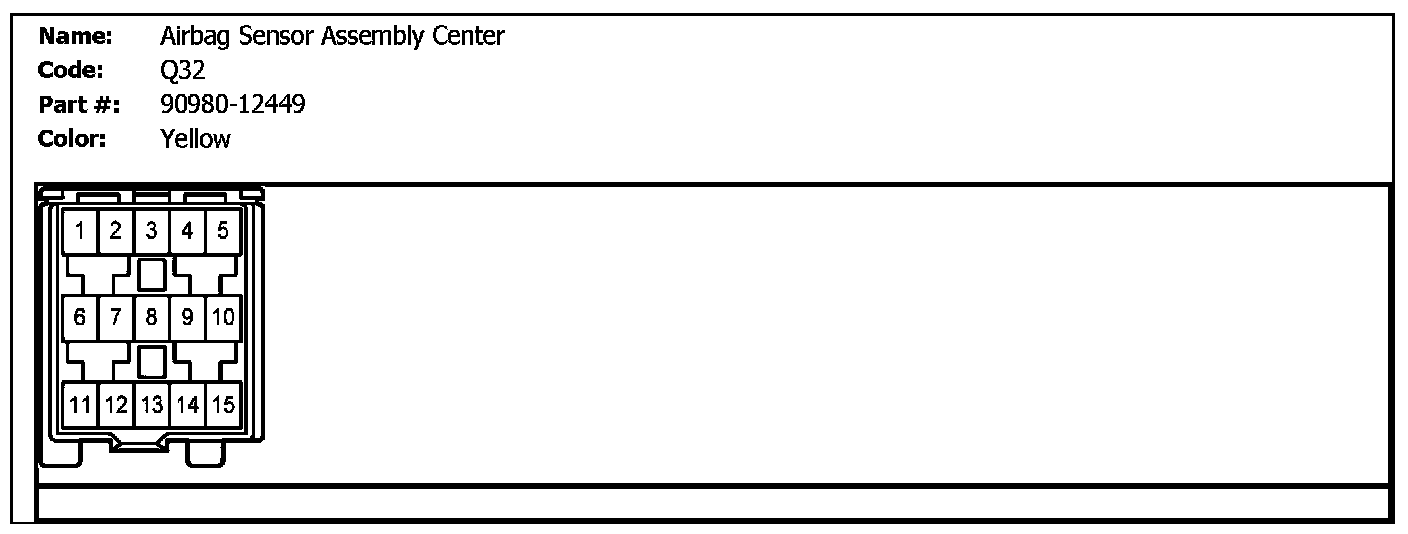

Q32 (Airbag Sensor Assembly Center):
