Removal

BRAKE: STOP LIGHT SWITCH:

REMOVAL

1. PRECAUTION
CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing. Service Precautions

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) Removal

4. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Removal

5. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

6. REMOVE INSTRUMENT SIDE PANEL LH Removal

7. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

9. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

10. REMOVE STOP LIGHT SWITCH ASSEMBLY

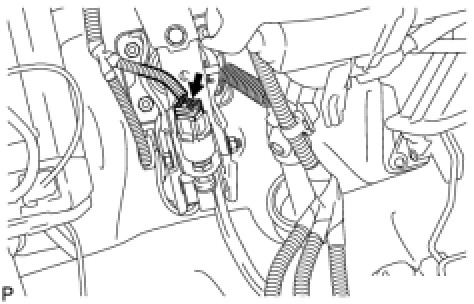

(a) Disconnect the connector.

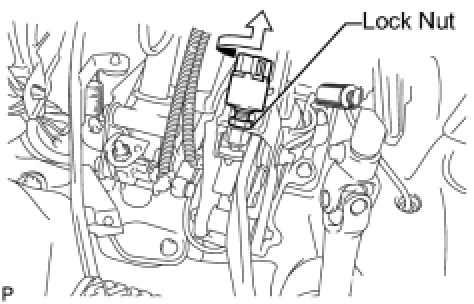

(b) Loosen the lock nut and remove the stop light switch assembly.
