Dimmer Switch: Testing and Inspection

METER: LIGHT CONTROL RHEOSTAT:

INSPECTION

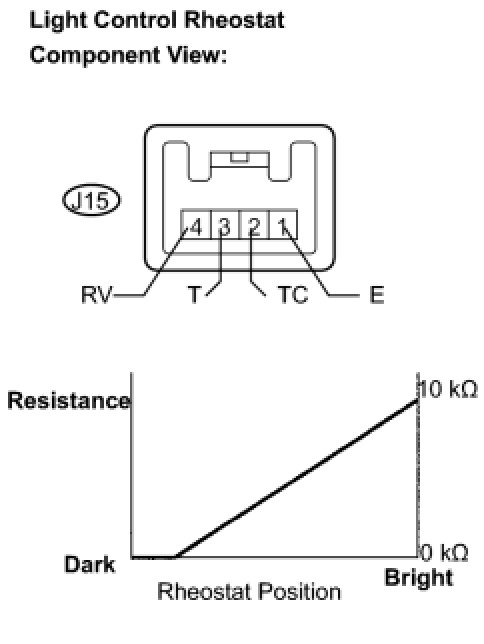

1. INSPECT LIGHT CONTROL RHEOSTAT

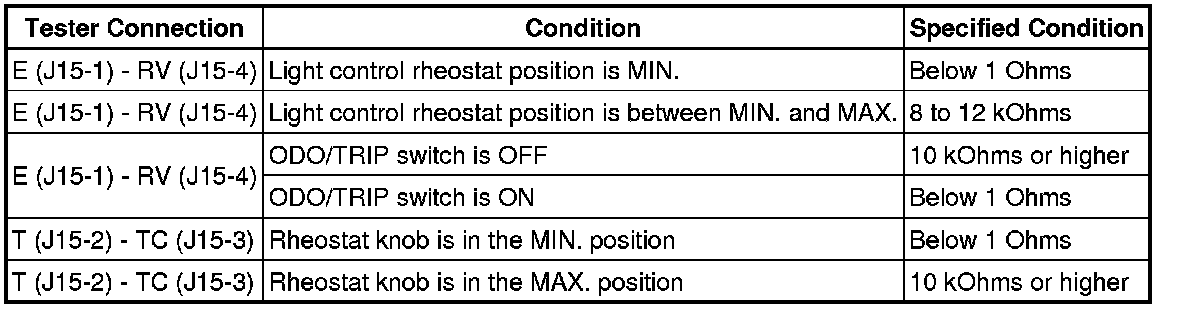

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: If the value is not as specified, replace the light control rheostat.
