Installation

AIR CONDITIONING: SMOG VENTILATION SENSOR:

INSTALLATION

1. INSTALL SMOG VENTILATION SENSOR

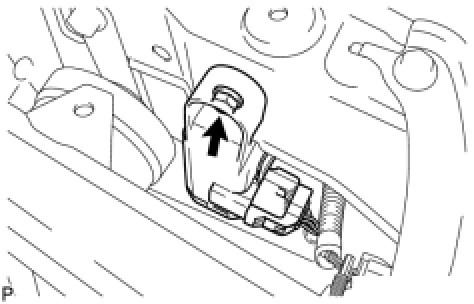

(a) Install the smog ventilation sensor with the bolt.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)
(b) Connect the connector.
2. INSTALL COOL AIR INTAKE DUCT SEAL Installation
