Braking Sensor/Switch: Testing and Inspection
BRAKE CONTROL: BRAKE PEDAL LOAD SENSING SWITCH:
ON-VEHICLE INSPECTION
1. INSPECT BRAKE PEDAL LOAD SENSING SWITCH
NOTICE:
- Do not remove the brake pedal load sensing switch from the brake pedal sub-assembly.
- When there is a malfunction in the brake pedal load sensing switch, replace the brake pedal subassembly.
(a) Disconnect the brake pedal load sensing switch connector.
(b) Measure the resistance according to the value(s) in the table below.

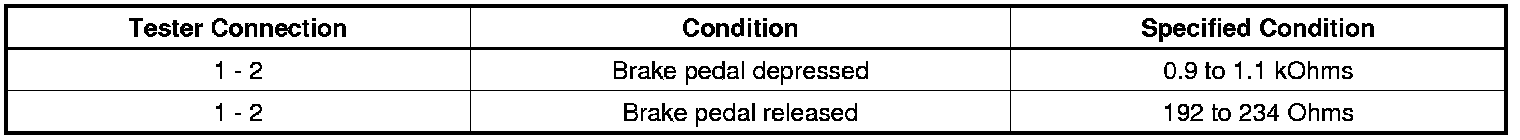

Standard resistance:
If the value is not as specified, replace the brake pedal load sensing switch.
